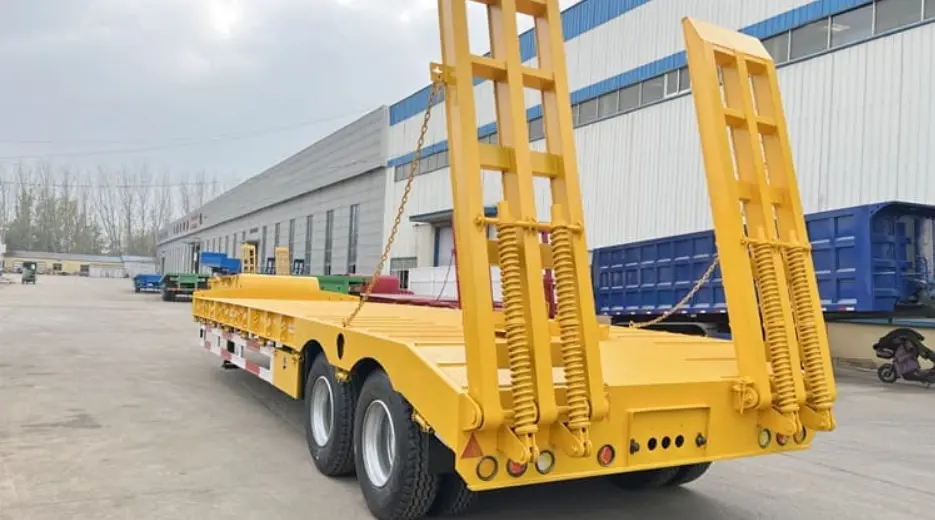

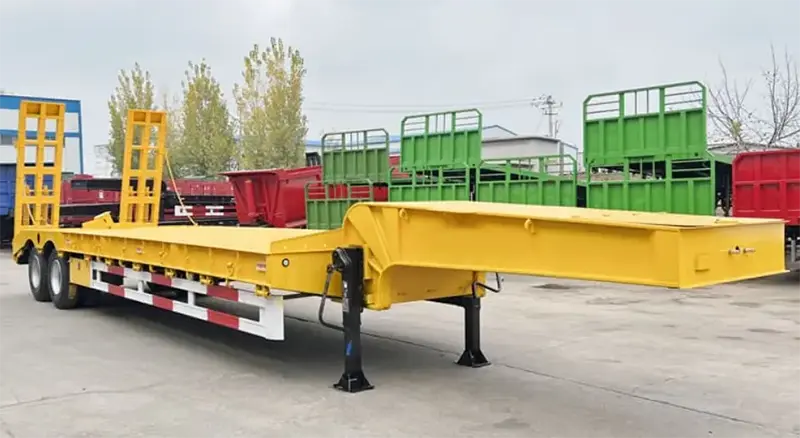

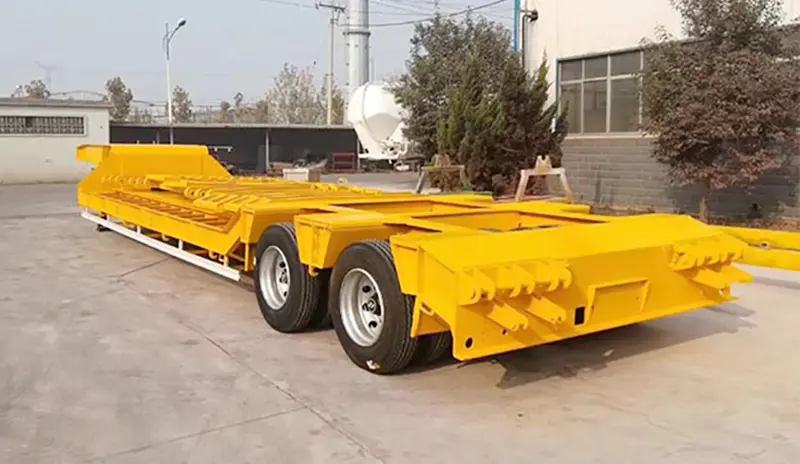

2 Axle Lowbed Semi Trailer

Feature:

Carry containers, bulk cargo, equipments

Dimension(L*W*H):

(10800-12000)*(2800-3200)*2500mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

No. of axle:

2

Payload:

45,000kgs

Kingpin:

The world-famous JOST brand bolt-in/welded type 3.5”/2”

Landing gear:

JOST brand two-speed manual operation 19”

Tire size:

11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5

Rim size:

8.25*22.5、9.00*22.5、11.75*22.5

Axle:

Original BPW-12T/ FUWA-13T

Suspension

Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

12(for 1x20GP,2X20GP,1X40HQ)

Painting:

S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory:

One tool box; one set of standard tool

We can build the trailers according to customer’s design and requirement
