Dimensions:18000×2500×1500mm
Tare Weight:8-14T
Description
20 Shipping Container Trailer Specification
20 Shipping Container Trailer is crucial in the transportation industry. They securely and efficiently move shipping containers from one place to another.Sinotruk trailer 20 Shipping Container Trailer support and transport shipping containers, ensuring their safety and compliance with regulations.
Chinese trailers for sale 20 Shipping Container Trailer, also known as a skeletal trailer, is a workhorse of the logistics industry. Here’s chinese semi truck 20 Shipping Container Trailer should be your go-to trailer for maximizing your freight hauling operation.
20 Shipping Container Trailer Parameters
| Manufacturer | Sinotruk trailer |
| Trailer Model | 20 Shipping Container Trailer |
| Function | Carry 1*20ft container or other stuff |
| Overall Dimension (Lx W x H)(mm) |
7260*2500*1550 |
| Loading Weight( KG) | 30 000 |
| Total Weight(KG) | 40 000 |
| Axle Brand | FUWA 13TON Axle |
| Axle Number | 2/3/4/5 |
| Wheelbase(mm) | 6260+1310 |
| Suspension system | Common Mechanical suspension |
| Steel Spring | 10/10 leaf spring suspension |
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. |
| Platform plate | 3mm Diamond plate |
| Container Twist Locker | 12 pieces |
| Tire Type and quantity | 12R22.5 8units |
| Traction Pin | 90mm or 50mm |
| Spare Wheel Bracket | 2 picecs |
| Tool Box | 1Standard tool boxes |
| Landing Gear | Chinese brand 28ton |
| Brake system | Dual Line braking system ,none ABS |
| Brake air chamber | Two double and two single chamber, |

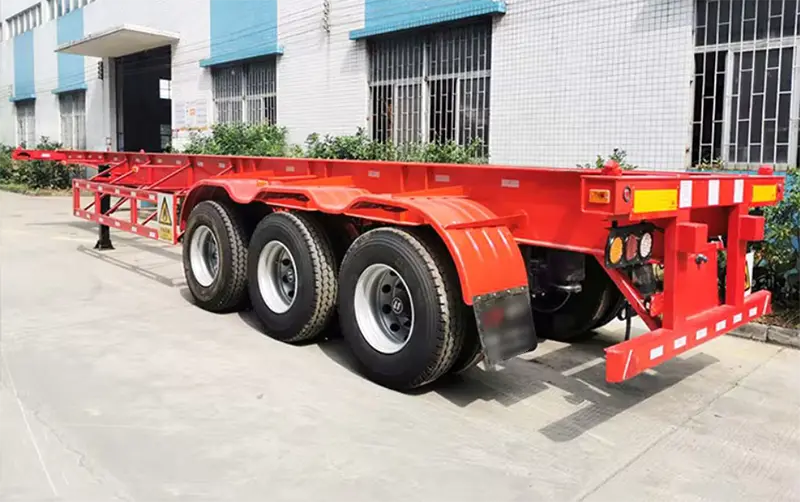

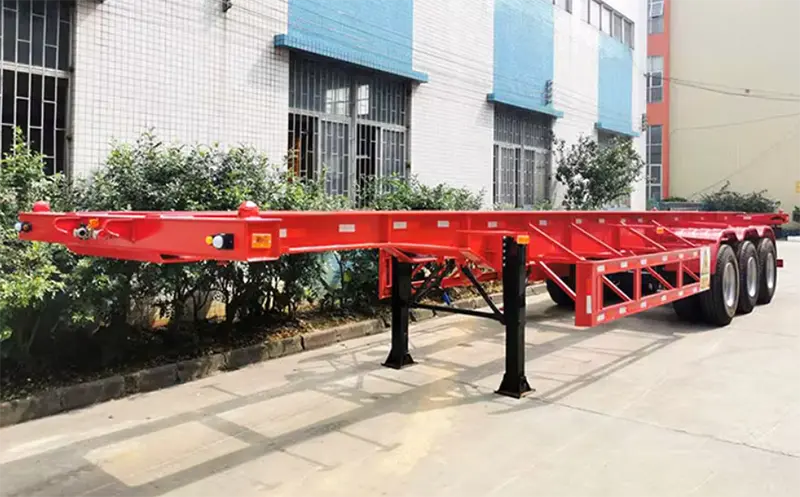

Products picture
20 Shipping Container Trailer | 20 foot shipping container trailer | shipping container trailer for sale
20 Shipping Container Trailer | 20 foot shipping container trailer | shipping container trailer for sale
