Home Trailer Flatbed Semi Trailer

3 Axle Flatbed Trailers For Sale

Overall L*W*H12450 *2490*1557mm
Loading≤ 45 T
Gross WeightAbout 6.5tons
Axles 13T/16/20T
Tire12.00R
ColorCustomized
3 Axle Flatbed Trailers For Sale

Description

3 Axle Flatbed Trailers For Sale Specification

3 Axle Flatbed Trailers For Sale uses Q345 high-strength steel to produce the trailer. The 3 Axle Flatbed Trailers For Sale middle plate of its main beam is 500 mm high and 8 mm thick. 3 Axle Flatbed Trailers For Sale upper plate is 14 mm thick and the bottom plate is 16 mm thick. And the gooseneck parts,sinotruk-trailers group use a double plate to reinforce it.

Flatbed trailer dimensions:12450 *2490*1557mm

3 Axle Flatbed Trailers For Sale Parameters

Gross Weight

About 6.5tons

Outer side dimension (mm)

12450 × 2490 × 1557

Loading Capacity (Ton)

≤ 45 T (40FT)

AXLES

13 T /PER , FUWA Brand, BPW Brand

Tire

12.00R,22.5 or 315/80R22.5,

China Brand or According to Customer requirement

Rim

9.00-22.5 China Brand

Suspension

Mechanical suspension

Spring leaf

90(W) mm* 13 (Thickness) mm

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand E100 or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

down plate is 16mm ; Material is Q345B Steel .

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks

Twist Locks

Twelve pieces (Lifting type or Twist Screw Type)

Valve

WABCO valve

ABS

Optional

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

Transport by bulk cargo carrier, RORO or 40HQ container.

Products picture

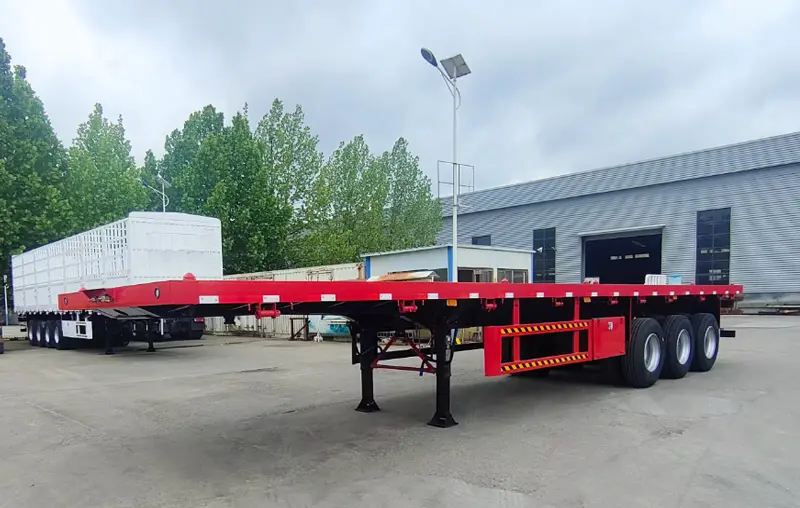

3 axle flatbed trailers for sale-2

3 Axle Flatbed Trailers For Sale | 10 ton flatbed trailer |  flatbed truck trailer

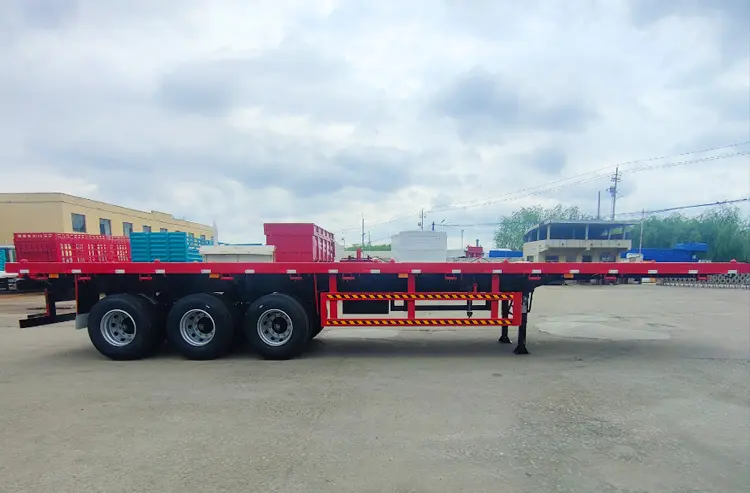

3 axle flatbed trailers for sale-1

3 Axle Flatbed Trailers For Sale | 10 ton flatbed trailer | flatbed truck trailer
