Overall L*W*H:12500*2500*1550mm
King Pin:2 inch or 3.5 inch

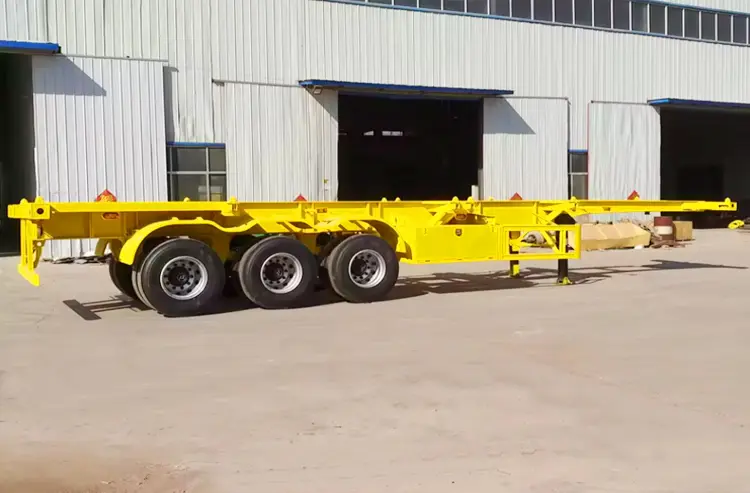

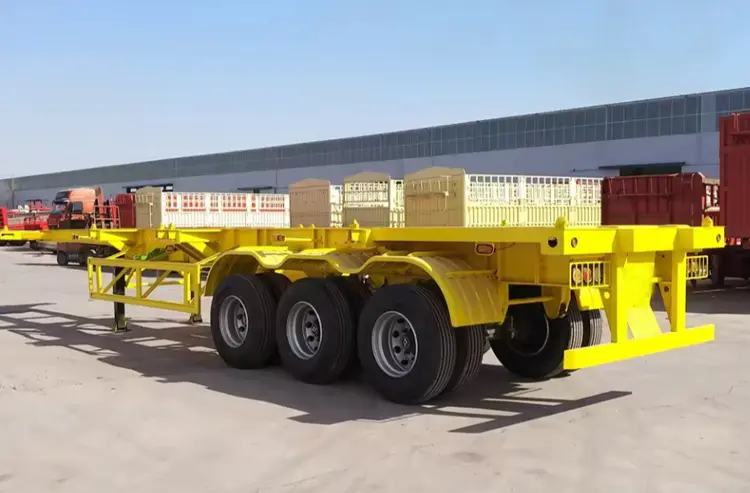

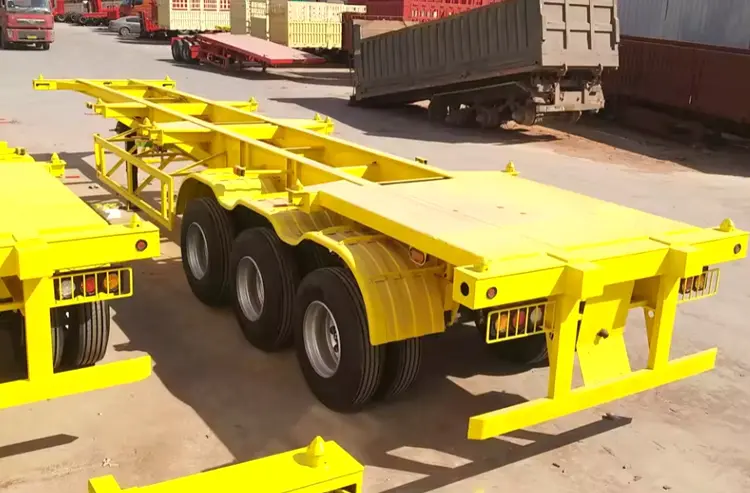

3 Axle Skeleton Semi Trailer Specification
3 Axle Skeleton Semi Trailer for Sale also called Shipping Container Trailer, Skeletal Trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport. 3 Axle Skeleton Semi Trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.
Especially used for transportation of various containers. 3 Axle Skeleton Semi Trailer Container Chassis can be used repeatedly for a long time, with sufficient strength. Use containers to transfer goods, which can be loaded directly in the consignor’s warehouse and shipped to the consignee’s warehouse for unloading. When replacing the Container Trailer for Sale or ship midway, there is no need to take the goods out of the box and replace them.
Flatbed trailer dimensions:12400*18000*2500mm.
3 Axle Flatbed Trailers For Sale Parameters
Dimensions (LxWxH)
|
12400*18000*2500-3200*1500*1550mm
|
Tare Weight
|
8000kg–14000kg
|
Loading Capacity
|
40T
|
Axle Weight Load
|
13T
|
Axle number
|
3
|
Axle Brand
|
Fuwa/BPW/Optional upon choice
|
Suspension
|
Common mechanical Or Air suspension
|
King Pin
|
2″ or 3.5″ traction pin
|
Support legs
|
28T
|
Wheel Rim
|
8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim/optional upon choice
|
Wheelbase
|
7180/6680/6260+1310+1310mm
|
Steel Spring
|
10-13 pieces per axle
|
Twist lock
|
12 sets of ISO twist lock for 1*20ft,2*20ft,1*40ft container
|
Landing Gear
|
Manual operating, Heavy duty landing gear (Brand Optional upon chioce)
|
Floor
|
3-5 Diamond steel plate
|
Accessories
|
1 Set standard tool box
|
Light
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
Painting
|
1coat of anticorrosive prime, twice coats of final paint
|
