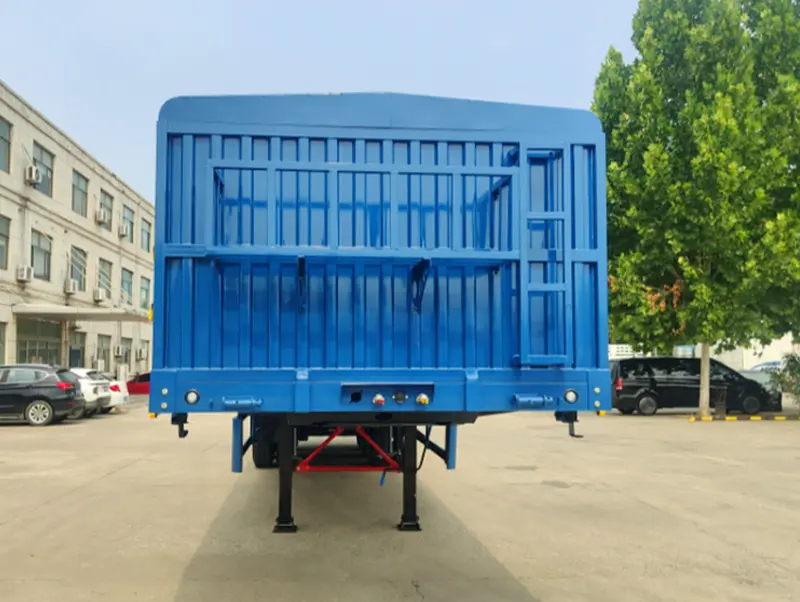

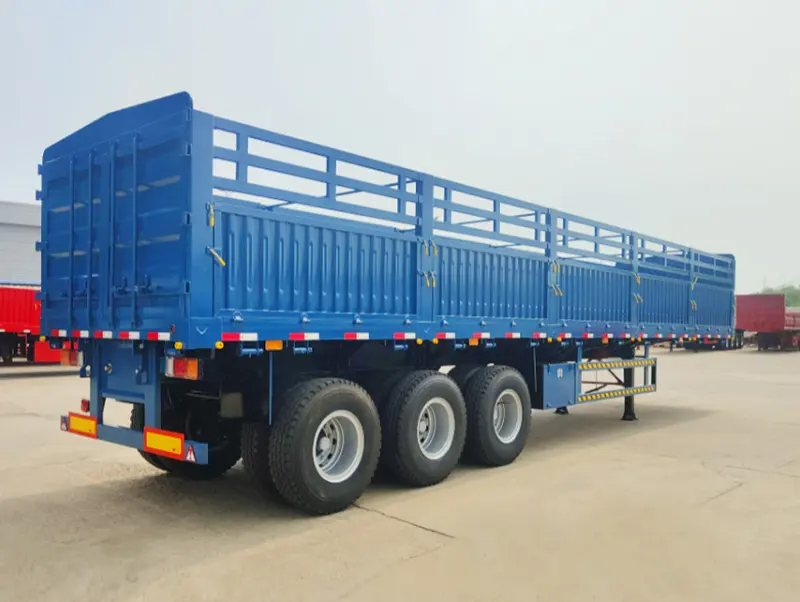

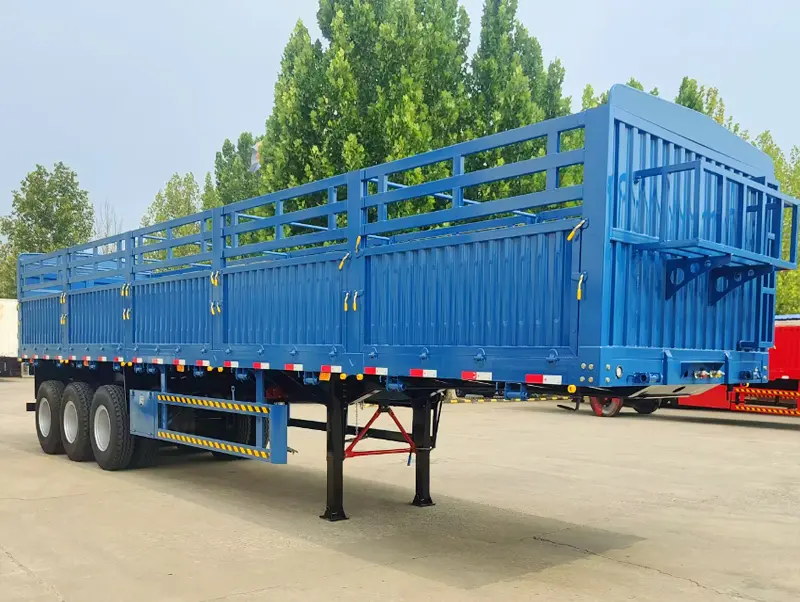

3 Axle Wall Side Semi Trailer

3 Axle Wall Side Semi Trailer Specification

3 Axle Wall Side Semi Trailer for sale developed on the basis of a container flatbed trailer, Sinotruk 3 Axle Side Wall Semi Trailer has a side wall structure design.
Sinotruk 3 Axle Wall Side Semi Trailer is widely used in the logistics. Sinotruk Trailer could be used to carry the bagged grain. cement. steel or other kinds of bulk goods. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
Sinotruk 3 Axle Side Wall Semi Trailer for sale can be customized according to customer needs.
Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

3 Axle Wall Side Semi Trailer  Parameters

DimensionL*W:12500mm*2500mm
Sidewall Height:1000mm
Max. Payload:<60T
Application: Coal/Cargo/Containers Loading
Material: Q345B Steel
Bottom Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 or 3.5inch (bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / bogie suspension
Axles: FUWA/BPW/other
Tires:12.00R22.5/31580R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
