34 Ton Side Tipper Trailer

34 Ton Side Tipper Trailer Specification

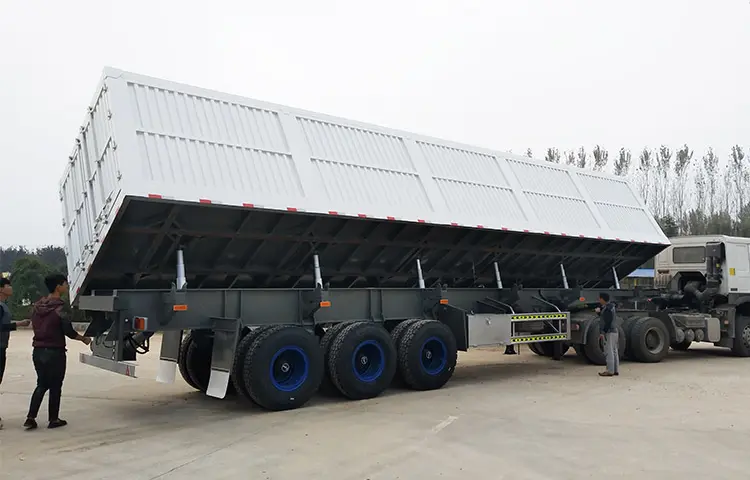

Sinotruk Trailer 34 Ton Side Tipper Trailer is popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

Sinotruk howo Trailer 34 Ton Side Tipper Trailer higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer’s needs. With ability to carry heavy loads with utmost ease and OEM assured body warranty, Sinotruk Trailer 34 Ton Side Tipper Trailer is an ideal choice for your business.

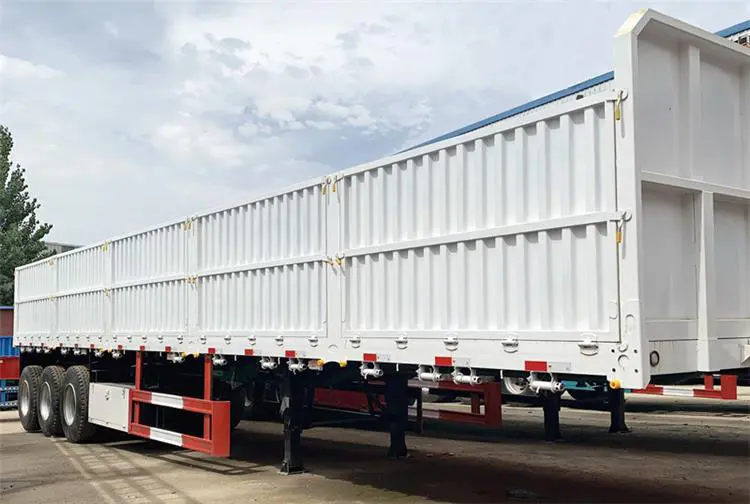

The sideboard design of high drop sided trailer makes loading and unloading convenient, and is suitable for transporting various types of goods. Sinotruk howo Trailer 34 Ton Side Tipper Trailer can carry goods of various shapes and sizes, such as steel, wood, etc., and has strong adaptability.High drop sided trailer can have good economy, making the operating cost relatively low, and is suitable for long-distance transportation. Made of high-strength materials, Sinotruk howo Trailer 34 Ton Side Tipper Trailer has good durability and can adapt to harsh environments.
Sinotruk howo Trailer 34 Ton Side Tipper Trailer participates in the formulation of national and industry standards, leading the new trend of technical design,raw material use, and tooling process production.

34 Ton Side Tipper Trailer Parameters

Dimension(mm): 12500x2500x2350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
