40ft Curtain Side Trailer

Overall L*W*H13000*2530*3750mm
Tare weight68kg
Payload60Tons
Axle3 axles  FUWA/SAF/BPW  brand optional
KingpinJOST 2"/3.5" bolt-in king pin
ColorCustomized
40ft Curtain Side Trailer

Description

40ft curtain side trailer Specification

1. 40ft curtain side trailer,From the standpoint of self-weight, in addition to replacing iron with aluminum, replacing iron with fabric is the best way to achieve lighter weight. The cord car has its unique advantages in terms of flexible operation and maximizing attendance. This is especially obvious when frequent pickups and deliveries are required in freight.

2. From the perspective of loading and unloading efficiency, 40ft curtain side trailer the cord car can greatly improve the loading and unloading efficiency of goods. When the curtain car is opened, in addition to our common loading and unloading at the rear of the car, the loading and unloading of goods can also be realized on the sides or top of the car. This gives greater play to the role of loading and unloading tools (such as forklifts, hoisting tools, etc.), thereby reducing the labor intensity of workers.

3. In terms of appearance, the 40ft curtain side trailer of the curtain car are smooth and regular, with beautiful patterns or advertisements painted on them, just like a flowing landscape.



40ft curtain side trailer  Parameters

Curtain Semi Trailer
Tare weight 8000kg
Payload 30-50Tons
Overall Length 13750* 2550 *4000 mm ( Our trailers are very compliant with Russian driving standards )
Color Customized
Chassis Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-arc processes. Upper plate:16mm, width200mm; middle plate: 8mm; bottom plate: 18mm, width 200mm
Axle 3 axles  FUWA/SAF/BPW  brand optional
Tire 385/65R22.5 ,  Triangle, Linglong, Double star brand optional
Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75  optional
Suspension High standard , Air suspension
Leaf spring Without
Floor   30 mm Waterproof phenolic flooring (double sided)
Kingpin JOST 2″/3.5″ bolt-in king pin
Landing gear JOST two-speed, manual operating, heavy duty landing gear
Braking system WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks
Painting Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights
Vehicular applications Bulk Cargo Transport

Products picture

40ft curtain side trailer-1

40ft curtain side trailer | curtain side van trailer | 40 foot curtain side trailer | curtain side box trailer

40ft curtain side trailer-2

40ft curtain side trailer | curtain side van trailer | 40 foot curtain side trailer | curtain side box trailer

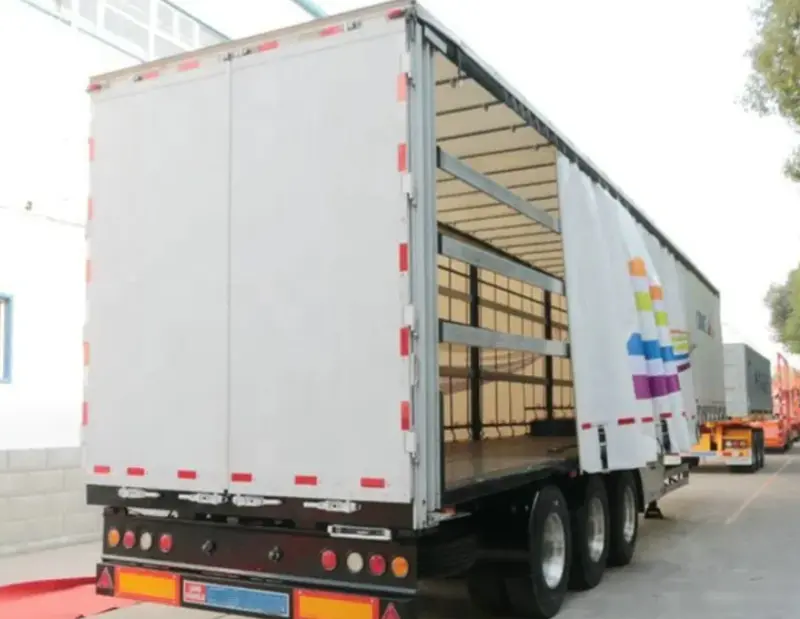

40ft curtain side trailer-4
