Size(mm):22000*3000*1650mm
Load Capacity:80T
Description
40ft Extendable Heavy Duty Low Bed Trailer Specification
40ft Extendable Heavy Duty Low Bed Trailer have no side panels on the vehicle and are widely used. chinese Sinotruk semi trailer are mainly used for medium and long-distance freight transportation.
Sinotruk howo semi trailer 40ft Extendable Heavy Duty Low Bed Trailer are usually used to transport heavy-duty vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, and agricultural machinery (such as excavators, bulldozers,loaders, pavers, cranes, etc.) And other heavy-duty goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport over-height goods and pass overhead obstacles.
40ft Extendable Heavy Duty Low Bed Trailer Parameters
|
Name：
|
Sinotruk howo semi trailer – 40ft Extendable Heavy Duty Low Bed Trailer
|
Tare Weight:
|
Around 20.2T
|
|
Spec.:
|
SYF9940TDP
Size: 19730mm*3300mm |
Axle:
|
4pcs Longer axle, 16T
|
|
Main beam:
|
Height: 500mm, Top flange: 20mm, under flange: 25mm, middle flange: 10+10mm, material: Q550D
|
Leaf spring:
|
Widen 10pcs
|
|
Side beam:
|
Height: 350mm, Top flange: 10mm,
under flange: 10mm, middle flange : 10mm |
Brake chamber：
|
8 double
|
|
Cross beam:
|
Bending steel plate (reinforced)
|
Rim：
|
8.0#（16mm）* 17pcs
|
|
King pin:
|
90#
|
Tyre：
|
11.00R20 (18PR)* 17pcs
|
|
Suspension:
|
60 pin, widening and thickening
|
Air tanker：
|
3 pcs
|
|
Floor:
|
Both sides is 5mm, middle plate is 4mm
|
Emergency valve：
|
Standard
|
|
Landing gear:
|
28T, Fuwa brand
|
Gas circuit：
|
&12 red yellow nylon tube
|
|
Draw plate：
|
Thickness:14mm,
|
Tool box:
|
2pcs on gooseneck
|
|
Tyre carrier：
|
2 pcs
|
Gusset & hook
|
24 pcs each
|
|
Leg crank：
|
1 pair
|
Shaft head wrench：
|
1 pc
|
|
Electric system：
|
Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness.
|
||
|
Payload：
|
100T under closed status, 60T after extendable.
|
Paint：
|
One coat of anti-rust paint, one coat of polyurethane paint.
|
|
Remark: The length of deck in closed status is 7600mm, it can be extended by 6000mm. Sinotruk howo semi trailer is with a simple ladder. The main beam of gooseneck is per the drawing.
|
|||
Products picture

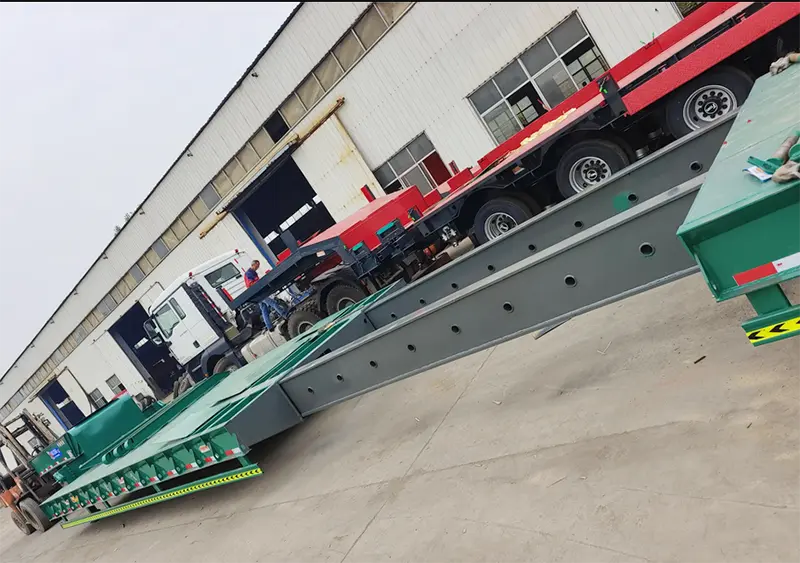

40ft Extendable Heavy Duty Low Bed Trailer | China Extendable Low Bed Trailer | Sinotruk howo semi trailer

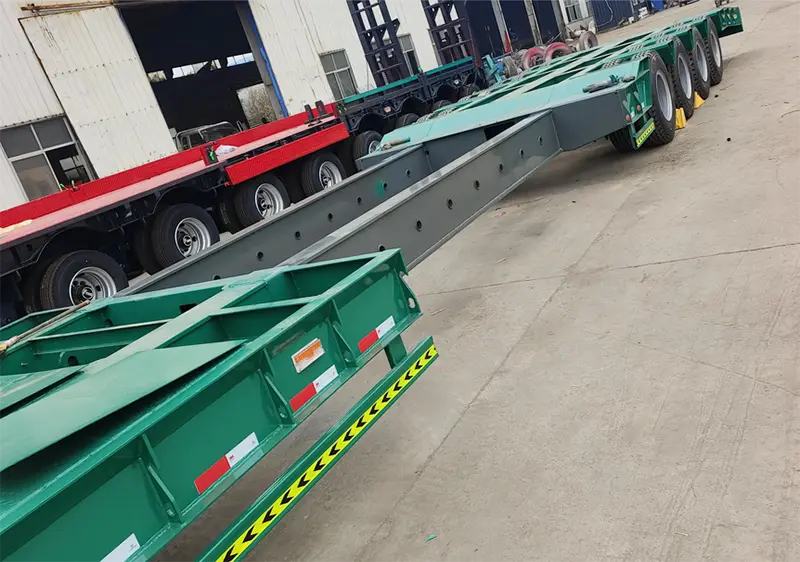

40ft Extendable Heavy Duty Low Bed Trailer | China Extendable Low Bed Trailer | Sinotruk howo semi trailer

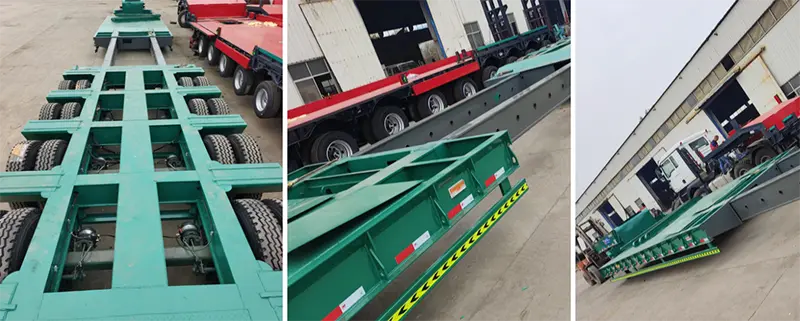

40ft Extendable Heavy Duty Low Bed Trailer | China Extendable Low Bed Trailer | Sinotruk howo semi trailer
