Home Trailer Extendable Lowboy Trailer

50 Shades Freed Trailer Extended

Size(mm)15500*2550*3330mm
Load Capacity80-100 Tons
MaterialSteel/Aluminum
ColorCustomized
ManufacturerSinotruk factory
50 Shades Freed Trailer Extended

Description

50 Shades Freed Trailer Extended  Specification

50 Shades Freed Trailer Extended is designed for some heavy machinery, the overall design of the arched cargo compartment, the longitudinal beam is a high-strength steel structure, the overall design, to improve the loading capacity, but also to reduce its weight.

Sinotruk howo semi trailer  truck – 50 Shades Freed Trailer Extended can be loaded with 60ton, making it even more convenient to use. Its front-loading is easier for some medium-sized machines, such as excavators, while Sinotruk howo semi trailer  truck  has higher requirements for high-strength steel.



50 Shades Freed Trailer Extended Parameters

Sinotruk howo semi trailer  truck – 50 Shades Freed Trailer Extended

Outside Dimensions

15500*2550*3330mm

Bearing weight

80-100T

Tare Weight

15000 kg

Usage

For heavy duty machine, as transformer, crane, excavator transportation.

Axle Brand

CTC Axle

No. Of the Axles

5

Tyre Specifications

235/70R17.5, 20pcs

Suspension

Heavy Duty Leaf Spring

Floor

3mm management plate

Tool Box

1 box of standard tools

Spare tire carrier

2 sets

Main Beam Material

Q345B/ST52-3 manganese plates, automatic submerged arc,

Main-beam Height 350mm,

Lower flange: 18mm

Upper flange: standard

Mid Web: 12+12mm

Brake Air Chamber

Four double and two single chamber

Pin Height

According to the height of the tractor saddle.

Electrical System

24V, 7core socket, lights according to European standards.

Brake System

Dual Lines Braking System With Automatic Air Chambers

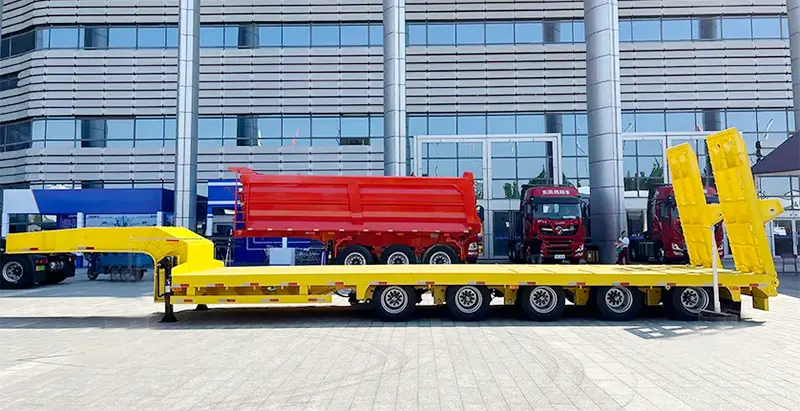

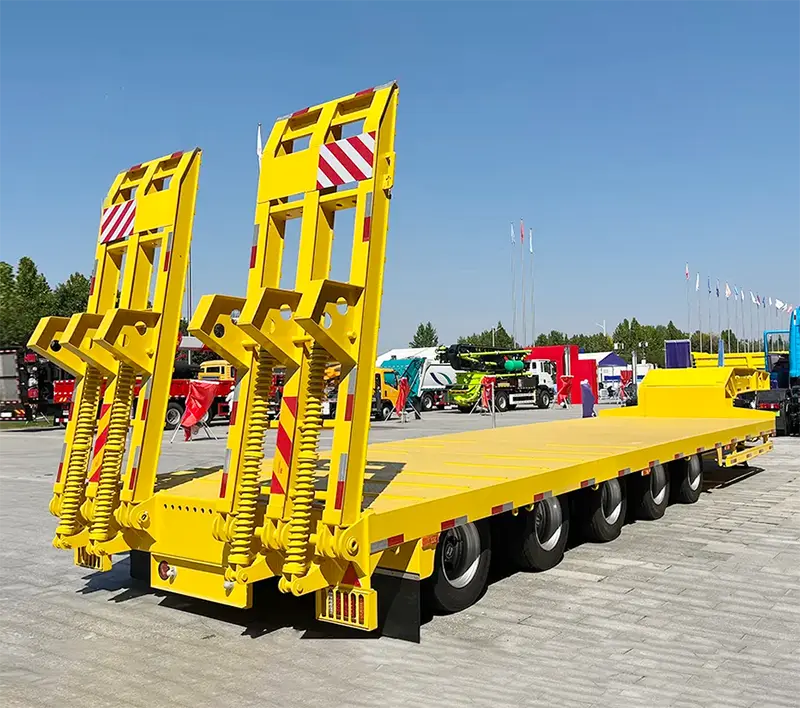

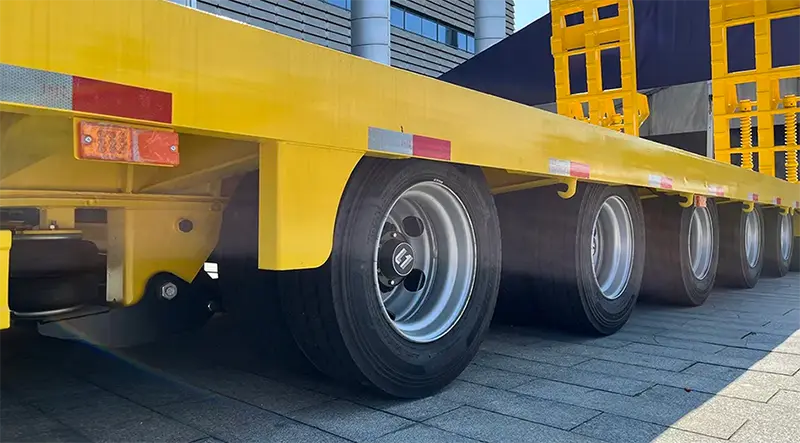

Products picture

50 Shades Freed Trailer Extended

50 Shades Freed Trailer Extended | China Extendable Low Bed Trailer | Sinotruk howo semi trailer  truck

50 Shades Freed Trailer Extended

50 Shades Freed Trailer Extended | China Extendable Low Bed Trailer | Sinotruk howo semi trailer  truck

50 Shades Freed Trailer Extended

50 Shades Freed Trailer Extended | China Extendable Low Bed Trailer | Sinotruk howo semi trailer  truck
