53 Ft Dry Van Trailers For Sale

Overall L*W*H12400*2480*4000mm
Tare weight7225kg
Payload60Tons
Axle3 axles  FUWA/SAF/BPW  brand optional
KingpinJOST 2"/3.5" bolt-in king pin
ColorCustomized
53 Ft Dry Van Trailers For Sale

Description

53 Ft Dry Van Trailers For Sale Specification

53 Ft Dry Van Trailers For Sale combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security.

53 Ft Dry Van Trailers For Sale are widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.



53 Ft Dry Van Trailers For Sale Parameters

Specification
Tare  Weight 7225kg
Overall  Length 12400mm
Overall  Width 2480mm
Payload 60000kg
SPECIFICATIONS
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle 3 axles
FUWA, BPW, L1, or 16 ton
Suspension Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring 10 piece Leaf spring
King Pin JOST brand 2″ Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.25-22.5 steel wheel rim, 13 pieces including one spare
Tire 12.00R20 all steel radial tire, 13 pieces including one spare tire.
Twist Lock 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box

Products picture

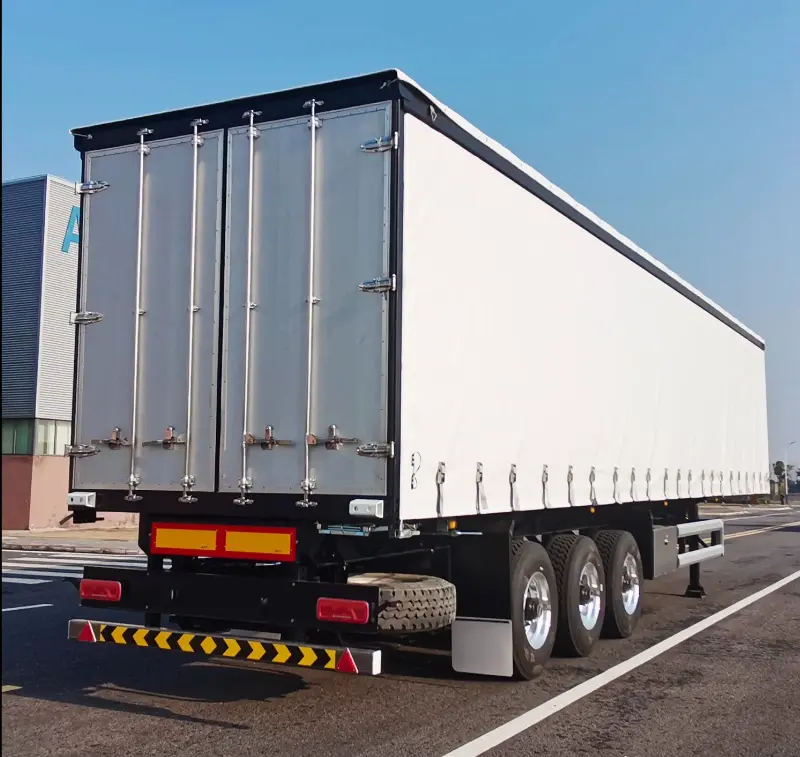

53 Ft Dry Van Trailers For Sale-2

53 Ft Dry Van Trailers For Sale | semi van trailers for sale | semi van trailer | dry van trailer

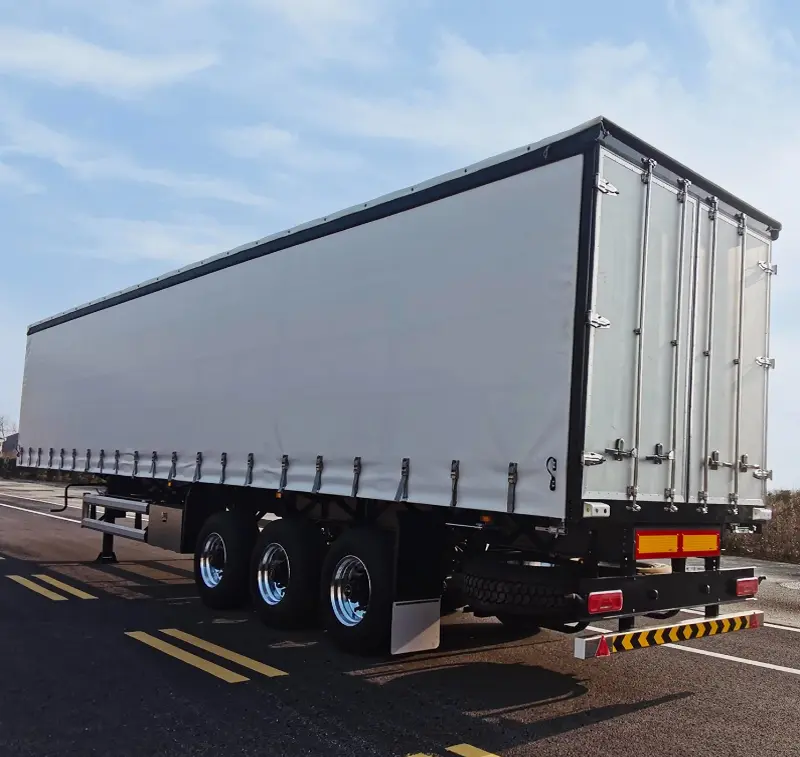

53 Ft Dry Van Trailers For Sale-3

53 Ft Dry Van Trailers For Sale | semi van trailers for sale | semi van trailer | dry van trailer

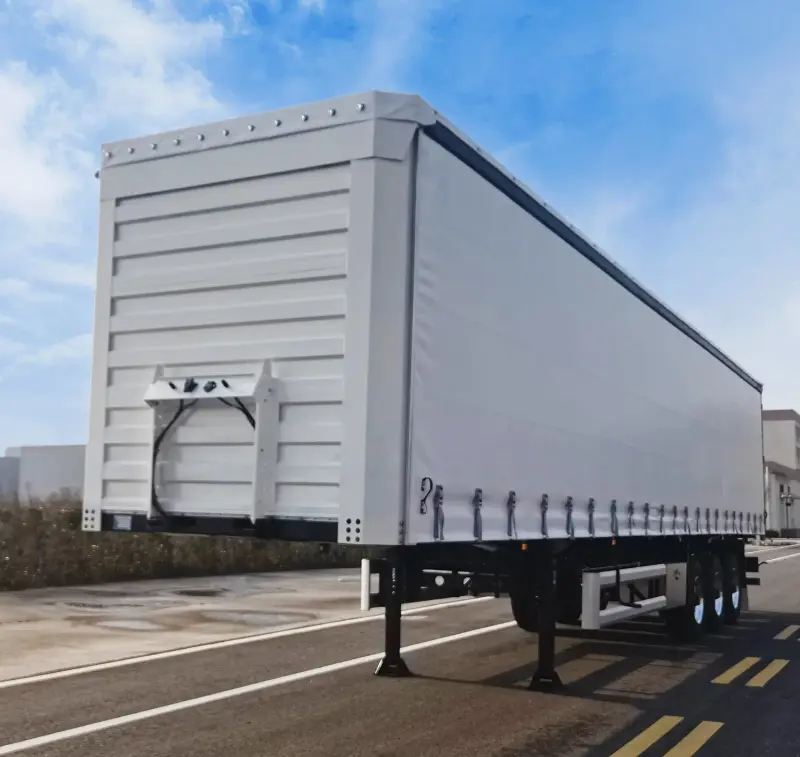

53 Ft Dry Van Trailers For Sale-1

53 Ft Dry Van Trailers For Sale | semi van trailers for sale | semi van trailer | dry van trailer
