Overall L*W*H:12500*2500*1550mm
King Pin:2 inch or 3.5 inch
Description
Aluminum Flatbed Trailer Specification
Aluminum Flatbed Trailer for sale is another commonly used type of container and equipment in the transportation industry.
Aluminum Flatbed Trailer feature durability in off-road conditions, they are cross-functional for the carriage of commercial and industrial cargo up to 60 tons on roads of any category.
Sinotruk trailers Aluminum Flatbed Trailer for carrying 40ft container, 20ft container and bulk cargo. the 40ft semi flatbed trailer can carry loads 40 ton machines and cargos. The 3 axles 40ft flatbed trailer also called tri-axle semi flatbed trailer.
Aluminum Flatbed Trailer Parameters
|
Dimension (L*W*H):
|
12500* 2500*1500mm;
|
|
Twist lock:
|
12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time;
|
|
King pin:
|
2.0/3.5 inches (bolted or welded);
|
|
Axles:
|
13T, 3pcs;
|
|
Suspensions:
|
Mechanical suspension (America type);
|
|
Leaf springs:
|
10 layers 90mm*13mm, 6 units;
|
|
Tires:
|
12pcs; 12R22.5
|
|
Rims:
|
9.0-22.5, 12pcs;
|
|
Landing gear:
|
JOST 28T, Linkage Outrigger;
|
|
Spare tire carrier:
|
1pc;
|
|
Tool box:
|
1 unit;
|
|
Brake system:
|
WABCO 6 relays valve; T30/30+T30 air chambers, 40L air tanks;
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set
of 6-pin standard cable. |
|
Accessories:
|
1 unit tool box, 1 pc spare tire carrier, all set of standard tools.
Others as the factory standard or according to the customer’s requirements. |
|
Painting:
|
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
|
|
Color:
|
Optional, to be determined by customer
|

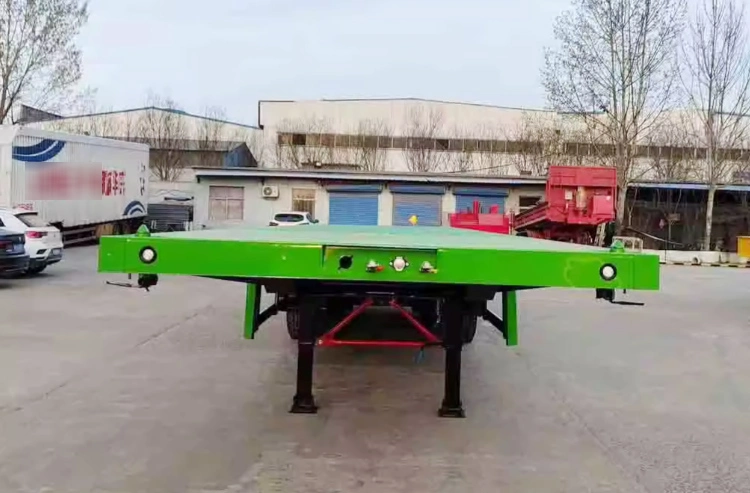

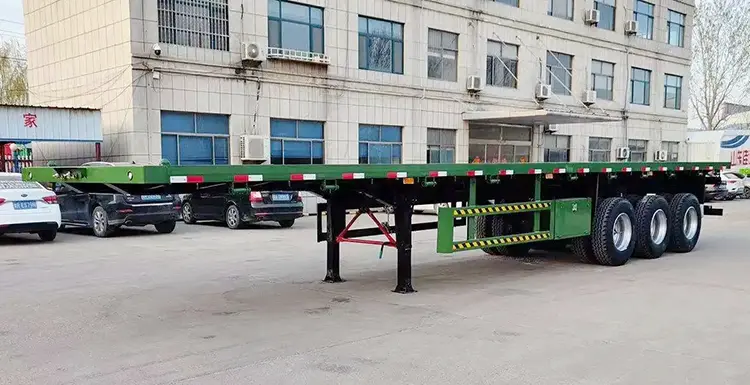

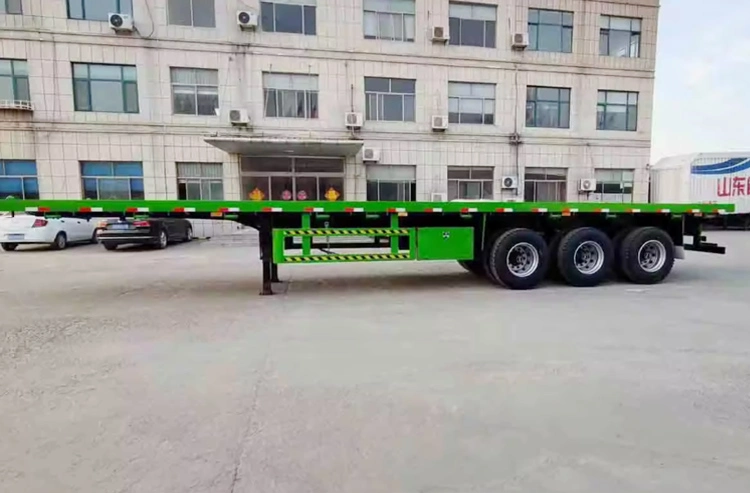

Products picture
Aluminum Flatbed Trailer | 40ft Flatbed Trailer | 3 Axle Flatbed Trailers For Sale
Aluminum Flatbed Trailer | 40ft Flatbed Trailer | 3 Axle Flatbed Trailers For Sale
Aluminum Flatbed Trailer | 40ft Flatbed Trailer | 3 Axle Flatbed Trailers For Sale
