Overall L*W*H:10500*2500*3750 mm
Tare weight:60000L
Description
Aluminum Tanker Trailer Specification
Sinotruk Aluminum Tanker Trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.
Sinotruk offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.
The tri axles aluminum fuel tanker trailer used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc.
In addition, to satisfy the special needs of our customers from Africa,Central Asia, South America, Central America ,the fuel tanker trailer also can be complete with accessories like Oil recovery unit,Fuel filling machine,Flowmeter, Level gauge etc ,which allow them not only transport fuels but also sell fuel easily with our fuel tanker trailers.
Van Semi Trailer Parameters
| Overall Length | 10200mm-13000mm | ||
| Overall Wide | 2500mm | ||
| Overall Height | 3600mm-3990mm | ||
| Tare Weight | About 5500KGS-9000KGS | ||
| Total Volume | 40000L-55000L | ||
| Tanker Body: | |||
| Compartment | Single/2/3/4/5/6/7 compartments optional | ||
| Tanker Body | 5mm or 6mm/Q235 Carbon Steel/Aluminium Alloy/Stainless steel | ||
| End plate | 5mm or 6mm/Q235 Carbon Steel/Aluminium Alloy/Stainless steel | ||
| Manhole Cover | Safety manhole with breath valve, 2/3/4/5/6/7 pcs, diameter 500mm. | ||
| Discharging Pipe | 3 or 4 inch rubber hose,1-7pcs,6m/each | ||
| Chassis | |||
| Axles | 2/3/4/5 Axles, 13T/16T, BPW/FUWA Brand | ||
| Main Beam | Q345carbon steel ,Welding Design | ||
| Support Legs | JOST(D200T) or China brand 28T | ||
| Suspension | Mechanical suspension/ Germany or America type/ Air Suspension | ||
| Leaf Spring | 90(W)mm*13(Thickness)*10 Layer or other | ||
| Braking System | WABCO RE6 relay valve; T30/30+T30 Spring brake chamber,45L air chamber | ||
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optiona | ||
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand | ||
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin | ||
| ABS | Optional | ||
| Painting | Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | ||
| Accessories | One tool box | ||
| Shipping Terms | By Bulk Cargo,RORO or 40HQ or 40ft FR container | ||

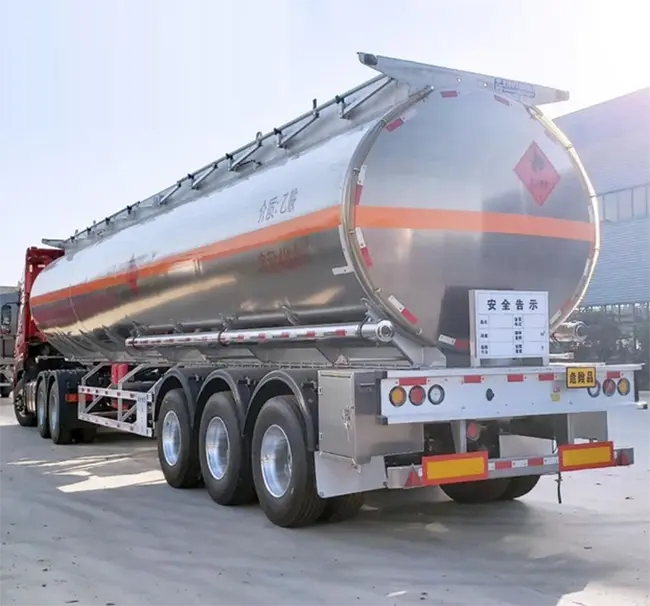

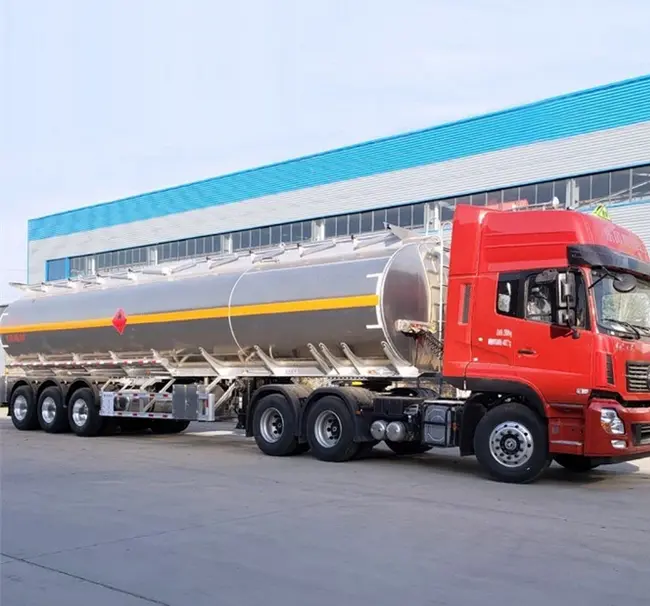

Products picture
aluminum tanker trailer | stainless steel tanker trailer | oil tanker trailer for sale
aluminum tanker trailer | stainless steel tanker trailer | oil tanker trailer for sale
