Overall L*W*H:13000*2600*3420mm
Trailer Sides:1800mm

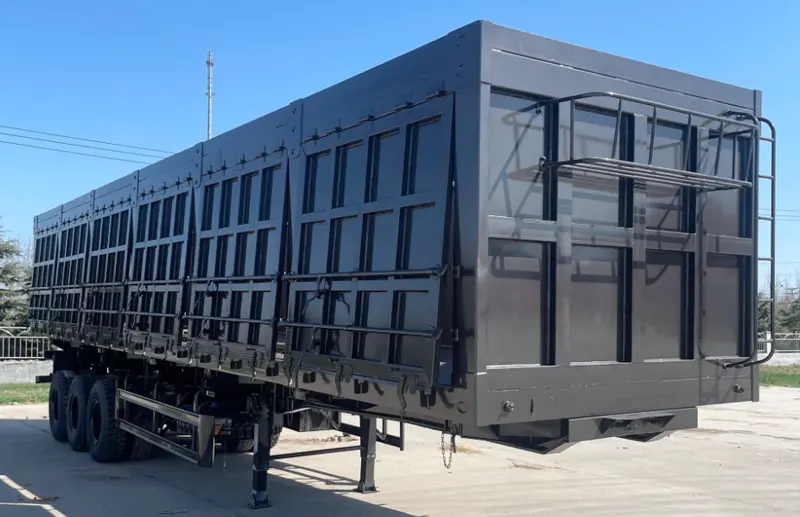

Axle Side Wall Semi Trailer Specification
Sinotruk trailer Axle Side Wall Semi Trailer is a trailer pulled by a truck tractor and used to these trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.
Distinguishing features of Chinese semi truck Axle Side Wall Semi Trailer
1. Use FUWA Axle (China Best Brand), Triangle Tire(China Famous Brand), WABCO Valve(Germany Brand), JOST King Pin(Germany Brand).
2. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
3. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
4. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
5. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
6. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished
products.
Sinotruk trailer Axle Side Wall Semi Trailer Parameters
Material
|
Main beams Q345B, upper flange: 14mm, middle: 8mm, down: 16mm
|
Side Tipper Truck Dimensions
|
8000-12000*2500*1500mm(length*width*height)
|
Cylinder
|
175, 191, 202, 214 / 4TG, 5TG
|
Brake System
|
WABCO Valve with big chamber
|
Axles
|
13T/16/20T BPW or FUWA brand
|
King Pin
|
2 inch or 3.5 inch JOST Brand
|
Side Tipper Loads
|
30T, 40T, 45T, 50T, 60T
|
LandingGears
|
JOST brand two-speed, Manual operating heavy duty 28ton
|
Suspension
|
Bogie suspension, spring suspension, Air suspension
|
Floor
|
3mm,4mm,6mm diamond steel plate
|
ElectricalSystem
|
24v, 7core socket, lights according to European standards (suitable for all market)
|
Twist lock
|
8 or 12 sets
|
Functions
|
Transport container, loose cargo, bulk cement, bulk rice,etc
|
Other Side Tipper Trailer parts
|
1 tool boxs, 1 spare tire carrier
|
Any parts fitted could according to clients request, contact us to get more.
|
