Overall L*W*H:10700*2500*3950mm
Air compressor:12m3/minute

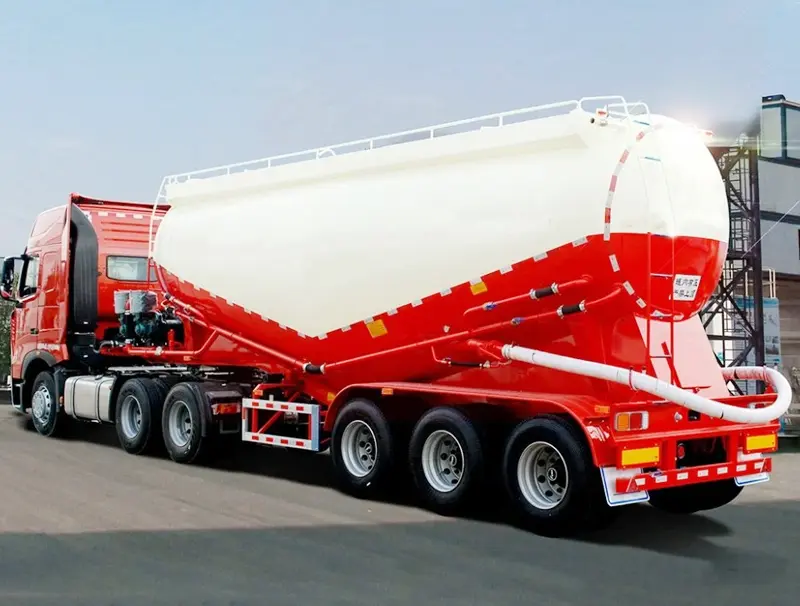

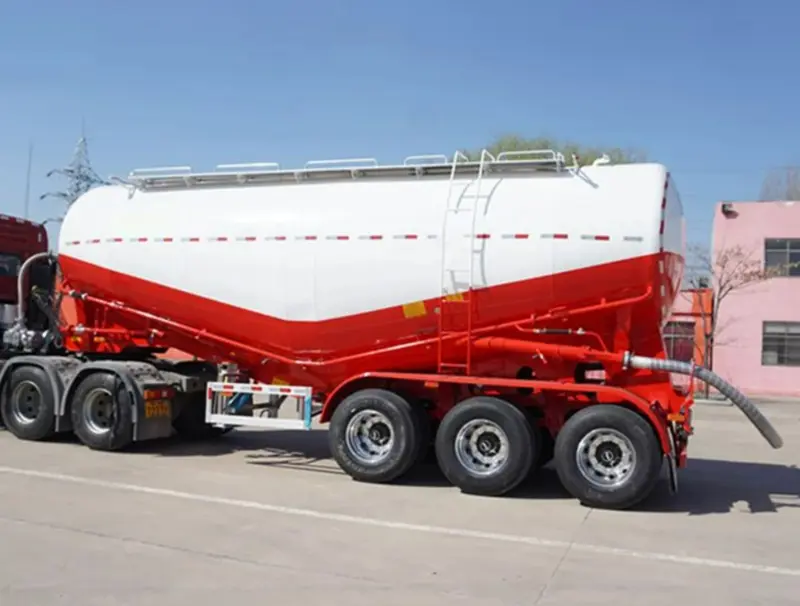

Bulk Cement Tanker Trailer Specification
Bulk cement carrier is a specially designed chassis, travel system, management system, tank composition, it is mainly created to transport cement and other bulk powder materials. Cement bulk carrier was born to greatly improve the cement construction industry’s efficiency and promote the construction industry’s progress.
Bulk Cement Tanker Trailer Parameters
Trailer Model | Bulk Cement Tanker Trailer |
Overall Dimension (Lx W x H) (mm) | 10700x 2500x 3950mm |
Function | transport bulk powder |
Loading Weight( KG) | 54000 |
Thickness(mm) | Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel |
Air compressor | 12m3/minute |
Engine | Diesel engine: Weichai Tianhe 4102 |
Compartment | 1 inner fluidized bed: air bag |
Axle | 3x13Ton |
Suspension system | Mechanical leaf spring suspension |
Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
Manhole cover | 500mm manhole cover. 2 sets |
Landing Gear | 28Ton, double speed,Yahua brand |
Tire | 12R22.5, Taitong brand 12units |
Traction Pin | 2“ or 3.5“ bolts in, changable |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Side guard | According to customer’s requirement |
Brake system | Dual Line braking system |
Emergency valve | WABCO |
Brake air chamber | Six big double air chambers |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. |
Packing | Polish with wax before shipping |
