Home Trailer Fuel Tank Trailer

Bulk Tanker Trailer

Overall L*W*H11500*2500* 3900 mm
Volume28000liter - 70000liter
Load Capacity28 - 70tons
Axle13t/16t
Tire Number12-24
ColorCustomized
Bulk Tanker Trailer

Description

Bulk Tanker Trailer Specification

Bulk Tanker Trailer from uses a multi-chamber version inside the tank to lessen the exchange in axle load and boom the stableness of the oil trailer. a wave-evidence baffle is brought within the diesel trailers, so that the tank has the characteristics of high energy, stable middle of gravity, and safe and stable trailers transportation.

We are manufacturer.
The trailer model we show is standard product; meanwhile, all our trailers can be customized according to your unique request.

Bulk Tanker Trailer is equipped with shoulder guards on both sides of the tank top. The shoulder guards are higher than all the accessories of the tank top. Its strength can bear twice the total weight of the tanker. In the event of an accident such as a rollover, the tank top will not be damaged to avoid liquid leakage.

Bulk Tanker Trailer Parameters

SPECIFICATION
Payload 28T – 70tons
Volume 28000liter – 70000liter
Compartments 1-9
Tanker body 5mm
Manhole 2 – 9 pcs 16″, 20″ with vent valve
Discharge vale 4″ API Adaptor Valve or 3″ Spherical Valve
Bottom valve 3″, 4″ Contral by Pneumatic Block
Handrail Manual, Pneumatic
Bottom Loading (Optional) Overfilling, Recovery system
Chassis
Main Beam Q345B
Axles 2 – 4 pcs 13 – 20tons BPW or Fuwa Axles
Suspenssion Mechanical, Air, Bogie
Landing Leg JOST E100

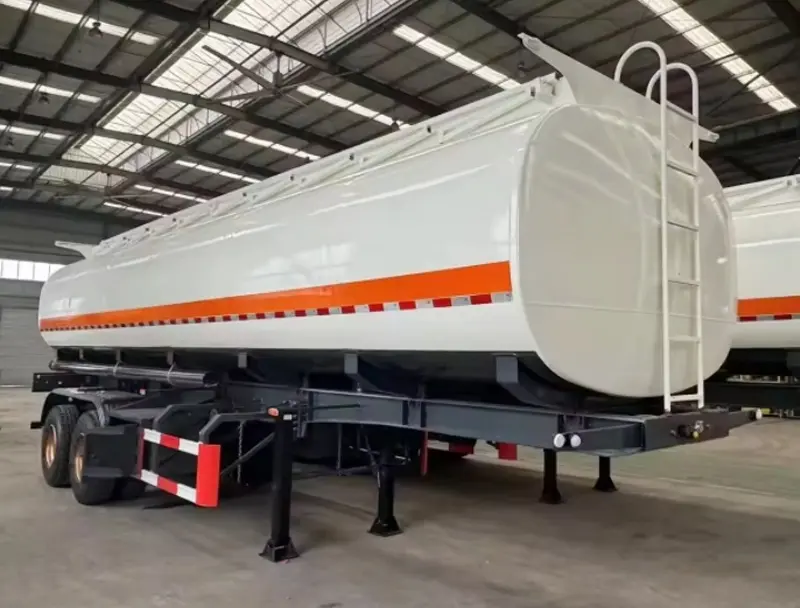

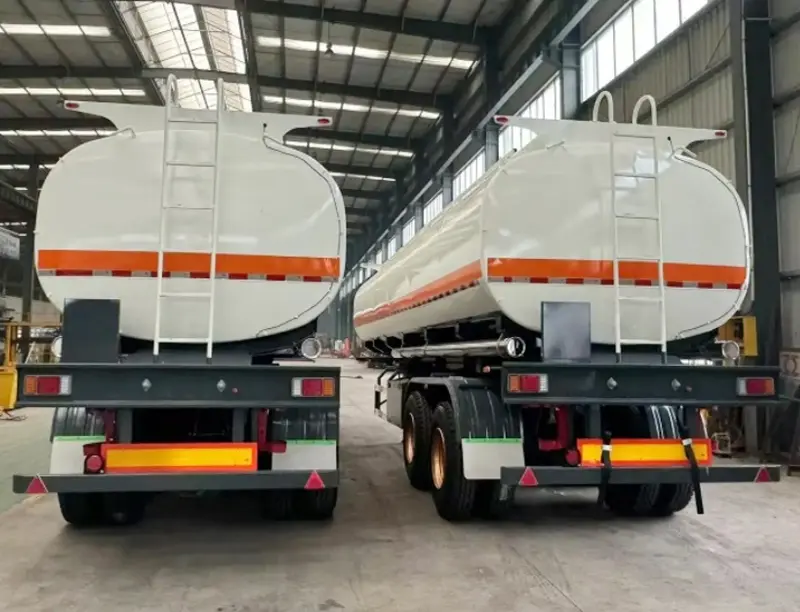

Products picture

Bulk Tanker Trailer | oil tanker trailer | crude oil tanker trailer for sale

Bulk Tanker Trailer | oil tanker trailer | crude oil tanker trailer for sale
