Overall Dimension:17500 * 2650 *4000mm
Loading Weight:18T-28T
Description
Car Transport Semi Trailer Specification
Car Transport Semi Trailer can be made into different lengths according tocustomer requirements,The frame is a welded 1-beam, and the entire body adopts automatic sub-merged arc welding and carbon dioxide gas shielded welding.After the welding is completed, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface, so that thequality is stable and the appearance is beautiful.
Sinotruk howo trailer Car Transport Semi Trailer is equipped with a tool box, a spare tire rack, and a drip brakesystem to improve the safety of vehicle transportation.
From raw materials, beams, side beams, cross beams to floors, axles, braking systems and tires, Chinese Sinotruk trailers every part is supervised by dedicated personnel to strictly control every product detail.
Car Transport Semi Trailer Parameters
|
Name：
|
Chinese trailers Car Transport Semi Trailer
|
Tare Weight:
|
Around 20.2T
|
|
Spec.:
|
Size: 19730mm*3300mm
|
Axle:
|
4pcs Longer axle, 16T
|
|
Main beam:
|
Height: 500mm, Top flange: 20mm, under flange: 25mm, middle flange: 10+10mm, material: Q550D
|
Leaf spring:
|
Widen 10pcs
|
|
Side beam:
|
Height: 350mm, Top flange: 10mm,
under flange: 10mm, middle flange : 10mm |
Brake chamber：
|
8 double
|
|
Cross beam:
|
Bending steel plate (reinforced)
|
Rim：
|
8.0#（16mm）* 17pcs
|
|
King pin:
|
90#
|
Tyre：
|
11.00R20 (18PR)* 17pcs
|
|
Suspension:
|
60 pin, widening and thickening
|
Air tanker：
|
3 pcs
|
|
Floor:
|
Both sides is 5mm, middle plate is 4mm
|
Emergency valve：
|
Standard
|
|
Landing gear:
|
28T, Fuwa brand
|
Gas circuit：
|
&12 red yellow nylon tube
|
|
Draw plate：
|
Thickness:14mm,
|
Tool box:
|
2pcs on gooseneck
|
|
Tyre carrier：
|
2 pcs
|
Gusset & hook
|
24 pcs each
|
|
Leg crank：
|
1 pair
|
Shaft head wrench：
|
1 pc
|
|
Electric system：
|
Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness.
|
||
|
Payload：
|
100T under closed status, 60T after extendable.
|
Paint：
|
One coat of anti-rust paint, one coat of polyurethane paint.
|
|
Remark: The length of deck in closed status is 7600mm, it can be extended by 6000mm. chinese trailers is with a simple ladder. The main
beam of gooseneck is per the drawing. |
|||
Products picture

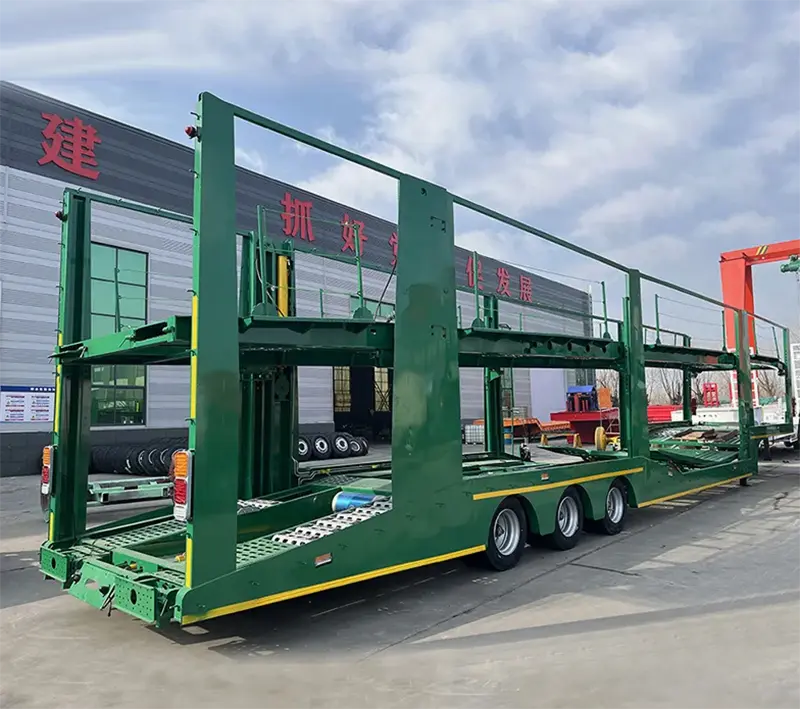

Car Transport Semi Trailer | semi car carrier trailer | semi car hauler trailer for sale | chinese trailers

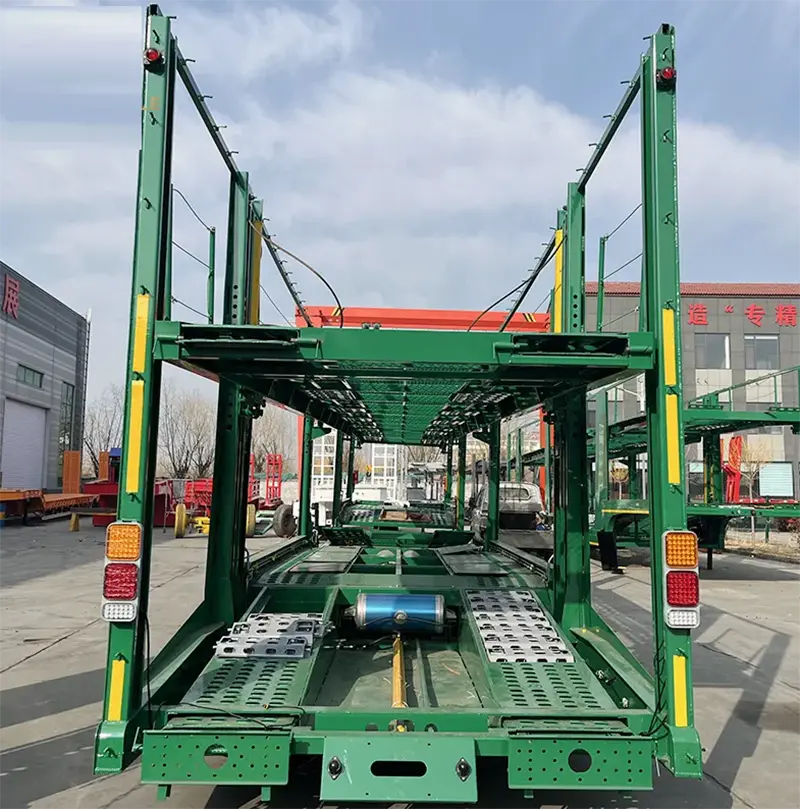

Car Transport Semi Trailer | semi car carrier trailer | semi car hauler trailer for sale | chinese trailers

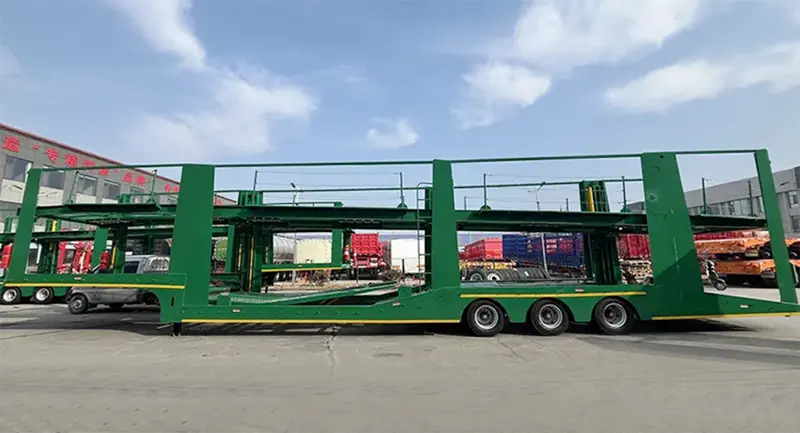

Car Transport Semi Trailer | semi car carrier trailer | semi car hauler trailer for sale | chinese trailers
