Home Trailer Side Wall Semi Trailer

Cargo Side Wall Semi Trailer

Overall L*W*H13000*2600*3420mm
Trailer Sides1800mm
Tire12 units,12.00R22.5 or315/80R22.5
Loading capacity≤80T
Rim9.00-22.5 or9.75-22.5
Landing gearJOST
Cargo Side Wall Semi Trailer

Description

Cargo Side Wall Semi Trailer Specification

Sinotruk trailer adopts advanced submerged arc welding technique to produce the fence semi trailer, there is no welding interface between middle, bottom and upper plate of the main beam. Cargo Side Wall Semi Trailer uses high-density inclined support to support the fence cargo semi trailer beams, every beam has its own support. And the distance between every two inclined support is only 50 cm.

The main beam of  sinotruk trailer Cargo Side Wall Semi Trailer is made of Q345 high strength steel, which has more loading capacity. The service life will be more than 10 years.

Cargo Side Wall Semi Trailer Parameters
Dimension(mm): 13000x2600x3420mm
Trailer Sides:1800mm
Loading capacity(ton):≤80T
Axles: 3 axles, 13T/16T, FUWA/ BPW Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical Suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T
Main Beam: Height:500mm, Upper plate:14mm, Middle plate:8mm, Bottomplate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate

Products picture

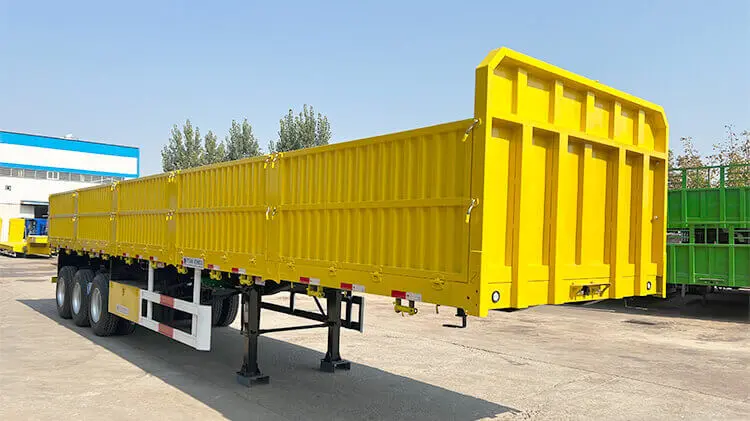

3 Axle Side Dump Trailer-1

Cargo Side Wall Semi Trailer | side dumper | side dump trailers | Sinotruk trailer

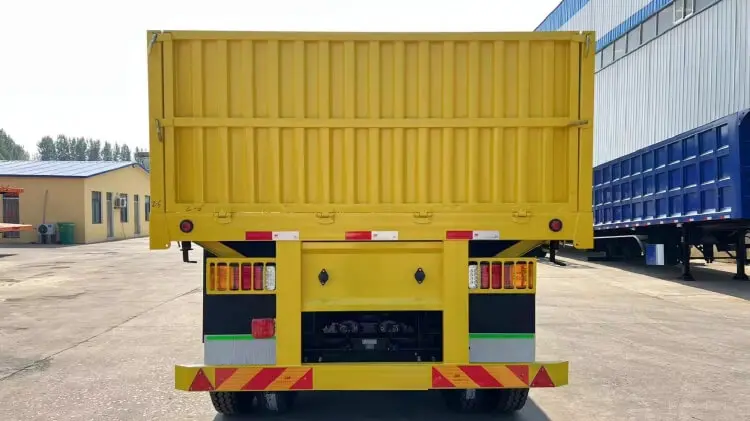

3 Axle Side Dump Trailer-2

Cargo Side Wall Semi Trailer | side dumper | side dump trailers | Sinotruk trailer

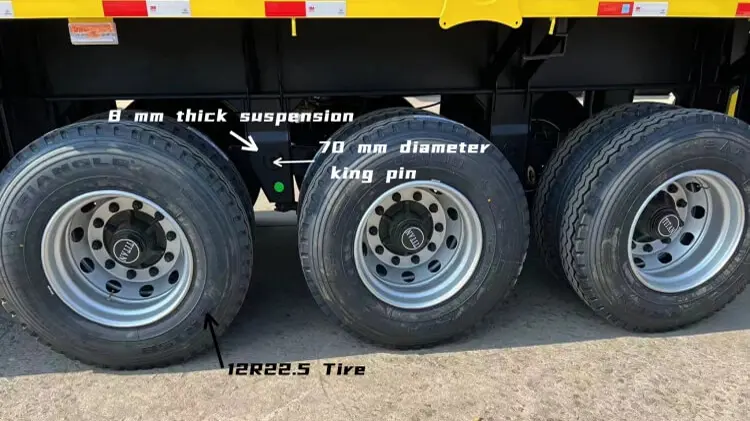

3 Axle Side Dump Trailer-3

Cargo Side Wall Semi Trailer | side dumper | side dump trailers | Sinotruk trailer
