Home Trailer Cement Tank Trailer

Cement Mixer

Overall L*W*H10200*2500*3800mm
Total volume40m³
Tare weight7500KGS-15000KGS
Axle3x13Ton
ABSOptional
ColorCustomized
Cement Mixer

Description

Cement Mixer Specification

Cement Mixer bulker trailer for sale in Kenya is designed using spray + powder spraying process, which can make the coating last 5-8 years without fading.
Cement Mixer bulker trailer for sale in Kenya adopts a sealed structure and self-unloading device, cargo can be loaded and unloaded quickly and efficiently, improving loading and unloading efficiency.



Cement Mixer Parameters

Cement Mixer
Overall Length 10200mm-12000mm
Overall Wide 2500mm
Overall Height 3800mm-3990mm
Tare Weight About 7500KGS-15000KGS
Total Volume 40m³
Tanker Body:
Shape Optional (One Silo with V type or two, Three Silo Design) Ratedwork Pressure 0.2MPa
Tanker Body 5mm or 6mm/Q235carbon steel Diesel Engine 4102/4105 or other brand
End plate 5mm or 6mm/Q235carbon steel Compressor 12 m³/14 m³ or other brand
Manhole Cover Cobon steel 500mm Discharging Valve Diameter is 3 or 4 inch
Discharging Pipe 3 or 4 inch rubber hose, 1PCS, 6m/each Cat Walk With(Common or special design)
Chassis
Axles 2 or 3 axles, 13T/16T, BPW/FUWA brand
Main Beam Q345carbon steel, Welding Design
Support Legs JOST(D200T) or China brand 28T
Suspension Mechanical suspension/Germany or America type/Air Suspension
Leaf Spring 90(W)mm*13(Thickness)*10 Layer or other
Braking System WABCO RE6 relay valve; T30/30+T30 Spring brake chamber, 45L air chamber
Tire 12.00R22.5 /315 80R22.5 /11.00R20 /12.00R20 Brand can be optiona
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
ABS Optional
Painting Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One tool box
Shipping Terms By Bulk Cargo, RORO or 40HQ

Products picture

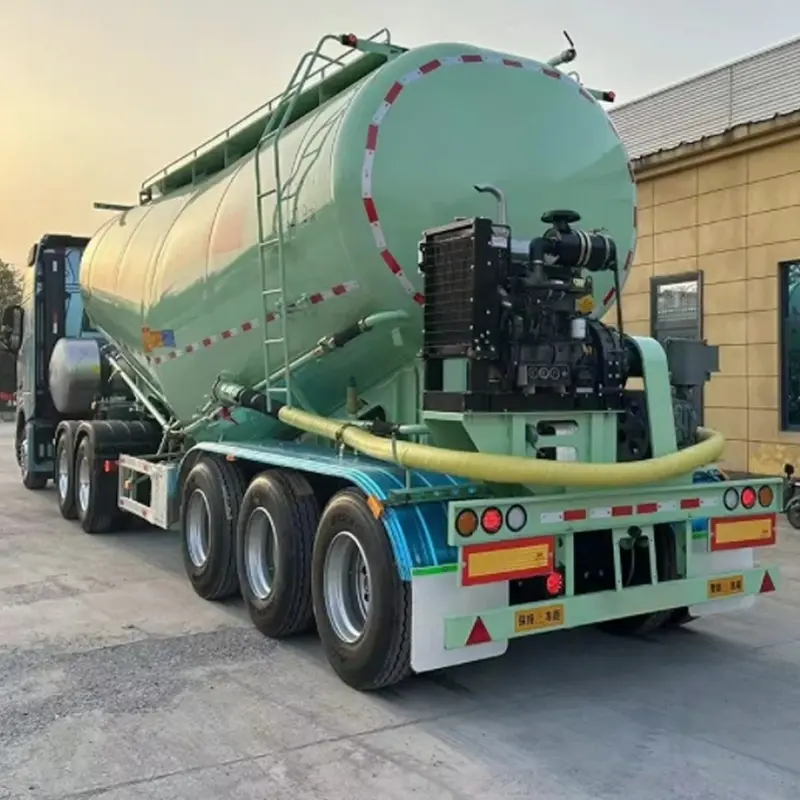

cement mixer-1

Cement Mixer | cement tanker trailer for sale | bulk cement tank semi trailer

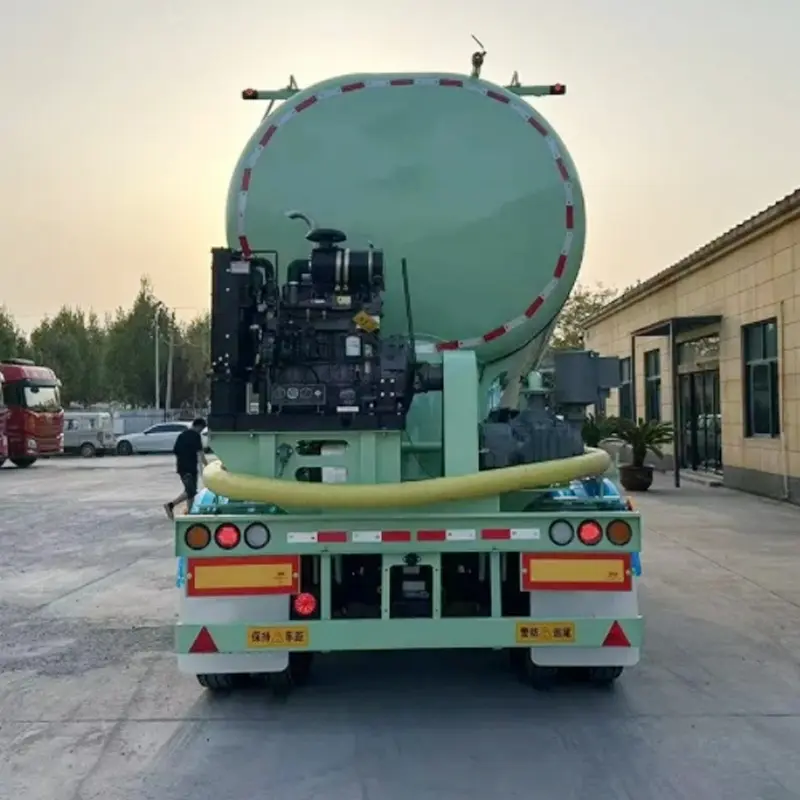

cement mixer-2

Cement Mixer | cement tanker trailer for sale | bulk cement tank semi trailer
