Home Trailer Cement Tank Trailer

Cement Tanker Trailer

Overall L*W*H12000*2500*3900mm
Total volume40-48cbm
Payload 50T
Tire12 units
ABSOptional
ColorCustomized
Cement Tanker Trailer

Description

Cement Tanker Trailer Specification

Cement Tanker Trailer, especially designed for portable cement plant for carrying different bulk items like cement, flour, powder, soda, ash, alumina.

The volume of the Cement Tanker Trailer can be customized. We offer a wide range of Cement Trailers with different specification and capacities with diesel engine and air compressor.

Advantage:

1. Cement Tanker Trailer, adopt high strength wear-resistant steel. To fabric the most durable tankers, especially for Africa Market, considering the road condition.

2. Sinotruk trailers adopts the advanced machine, that ensure the high quality of welding seams, long service life and good appearance in tank body.

3. After the production, all the Cement Tanker Trailer will go through the pressure test and metal inspection testing, to ensure a good sealing property of our cement tank trailer.

4. There are 10 air bags inside the tank (others only 6 or 8 ).

5. Sinotruk trailers uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better, the discharging speed can reach to 1.6ton per minute



Cement Tanker Trailer Parameters

Trailer Model

Cement Tanker Trailer

Overall Dimension (LxWxH)(mm)

12000*2500*3900mm bulk cement

Function

transport bulk powder

Thickness (mm)

5mm Carbon steel Q235B

Loading Weight (KG)

60000KGS BULK CEMENT TANKER

Axle

3x13Ton, FUWA brand

Air compressor

37 KW,0.2Mpa. 1000r/Min (12m3/minute) Bohai brand

Diesel engine

Diesel engine: Weichai brand
Model: 4102

Compartment

1 inner fluidized bed: air bag

Manhole cover

500mm manhole cover

Suspension system

Standard Mechanical suspension

Steel Spring

-10/10/10 leaf spring suspension

Tire

12R22.5 12units tubeless tire

Traction Pin

50mm or 90mm optional

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

Standard 28 tons

Brake system

Dual Line braking system

Brake air chamber

WABCO brand, Six big double air chambers

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer’s requirement

Painting

According customer requirement

Packing

Polish with wax before shipping



Products picture

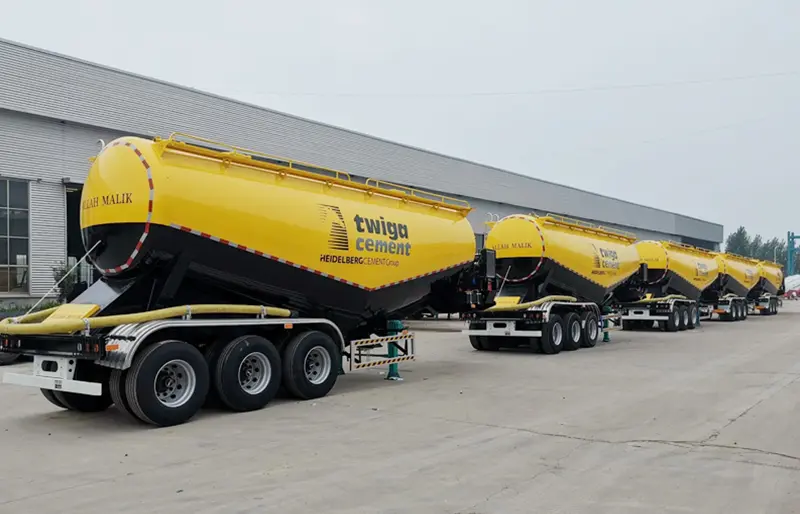

cement tanker trailer-2

Cement Tanker Trailer | Cement Tanker Semi Trailer | Cement Mixer | cement tanker trailer for sale

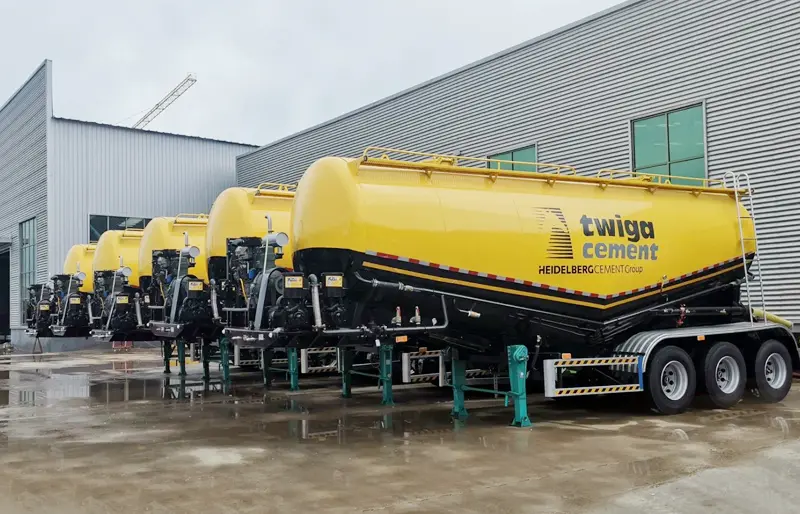

cement tanker trailer-1

Cement Tanker Trailer | Cement Tanker Semi Trailer | Cement Mixer | cement tanker trailer for sale

cement tanker trailer-3

Cement Tanker Trailer | Cement Tanker Semi Trailer | Cement Mixer | cement tanker trailer for sale

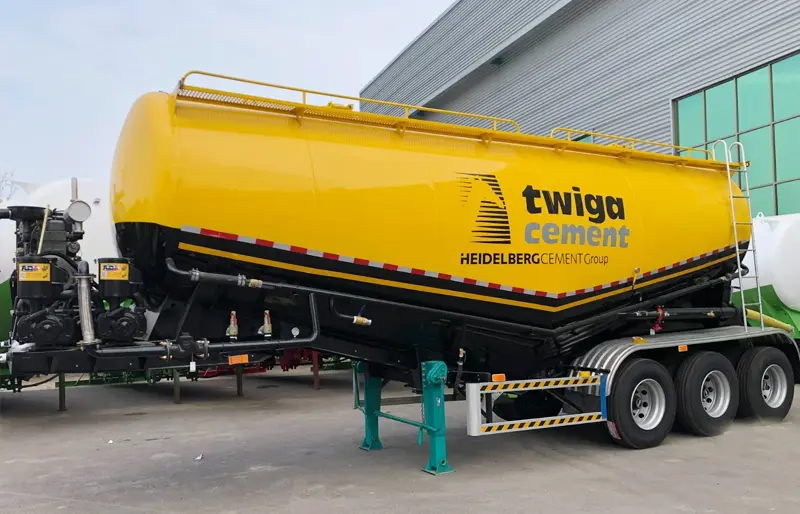

cement tanker semi trailer-3



Cement Tanker Trailer | Cement Tanker Semi Trailer | Cement Mixer | cement tanker trailer for sale
