Size(mm):22000*3000*1650mm
Load Capacity:80T
Description
China Extendable Low Bed Trailer Specification
China Extendable Low Bed Trailer have a low chassis design and can easily transport various large-scale mechanical equipment, such as excavators, bulldozers, loaders, road rollers, etc. The low flat structure allows the equipment to be placed stably on the semi-trailer, making transportation safe and reliable, and reducing damage to the equipment during transportation.
China Extendable Low Bed Trailer can also be used to transport various agricultural machinery and agricultural products, such as tractors, harvesters, pesticides, fertilizers, etc. The low flat structure can improve the stability and safety of transportation, reduce damage to transported items, and also facilitate agricultural production needs.
China Extendable Low Bed Trailer Parameters
|
N |
Name |
Parameters |
|
1 |
Wheelbase |
1550 mm |
|
2 |
Wheelbase |
735/1820 mm |
|
3 |
Number of tires |
8 pieces/each axis |
|
4 |
Tire specifications |
215/75R17.5 |
|
5 |
Rim specifications |
6.00-17.5 |
|
6 |
Cargo bed width |
2990 mm |
|
7 |
Cargo platform height (middle heavy load) |
1070mm |
|
8 |
suspension travel |
±300 mm |
|
9 |
Steering mechanism |
All-wheel hydraulic traction steering or control steering |
|
10 |
Frame main material |
Q550D |
|
11 |
Maximum turning angle in the first round |
55° |
|
12 |
Frame form |
Flat grid format |
|
13 |
Cargo platform support method |
Three-point support or four-point support |
|
14 |
The effective load capacity of each axis |
22.5tons(18km/h) |

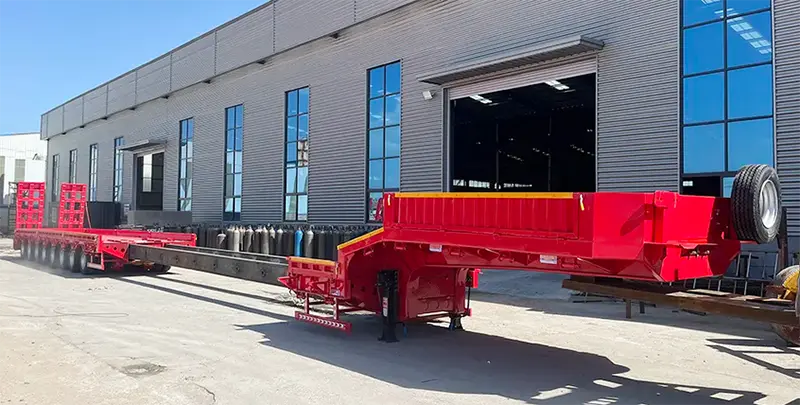

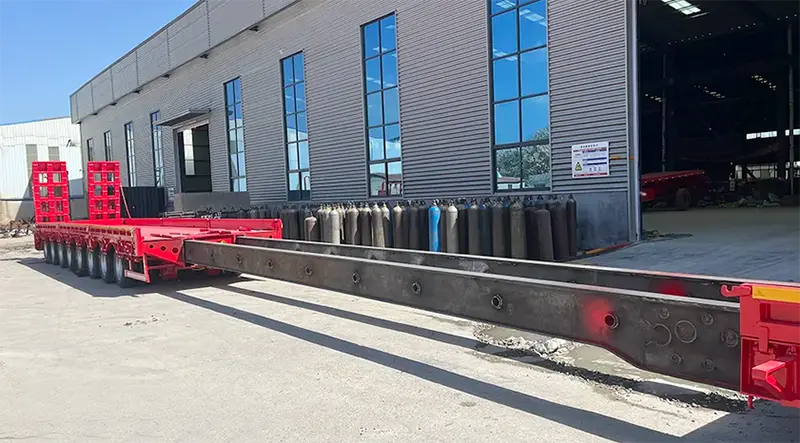

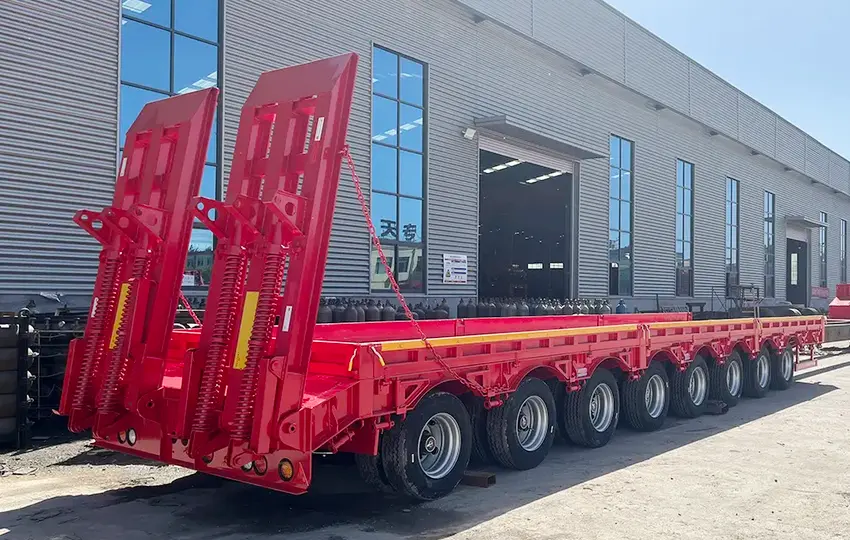

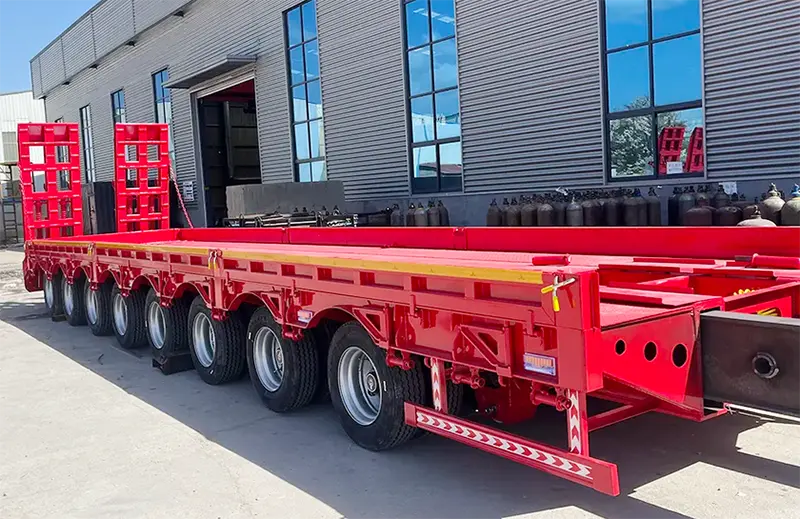

Products picture
China Extendable Low Bed Trailer | extendable low bed trailer for sale | extendable deck lowbed price
China Extendable Low Bed Trailer | extendable low bed trailer for sale | extendable deck lowbed price
China Extendable Low Bed Trailer | extendable low bed trailer for sale | extendable deck lowbed price
China Extendable Low Bed Trailer | extendable low bed trailer for sale | extendable deck lowbed price
