China Side Wall Semi Trailer

Overall L*W*H13000x2500x3050mm
Trailer Sides1500mm
Axles3 axles, 13T/16T ,FUWA/ BPW Brand
Loading capacity≤60T
Rim9.00-22.5 or9.75-22.5
Landing gearJOST
China Side Wall Semi Trailer

Description

China Side Wall Semi Trailer Specification

China Side Wall Semi Trailer with board is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. These cargo semi trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

The small door of the triaxle with boards facilitates the loading and unloading of grain.

China Side Wall Semi Trailer Parameters

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Products picture

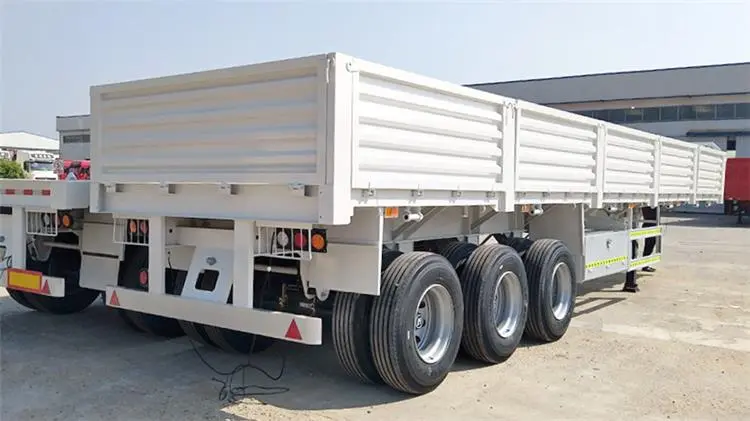

Side Dump Truck trailer for sale-2

China Side Wall Semi Trailer | Side Wall Semi Trailer | Side dump trailers for sale in nebraska

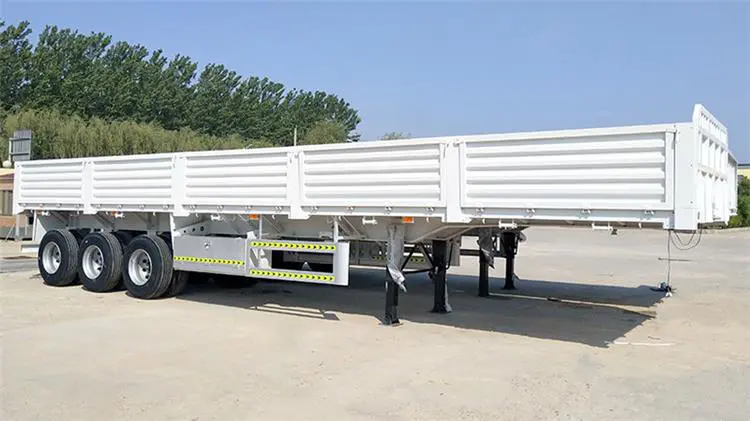

Side Dump Truck trailer for sale-1

China Side Wall Semi Trailer | Side Wall Semi Trailer | Side dump trailers for sale in nebraska

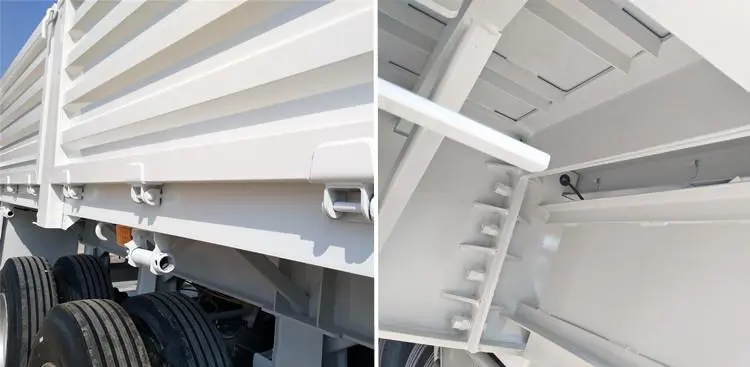

Side Dump Truck trailer for sale-3

China Side Wall Semi Trailer | Side Wall Semi Trailer | Side dump trailers for sale in nebraska
