Home Trailer Lowboy Semi Trailer

China Trailer Manufacturers

Overall L*W*H16000*2500*1850mm
Payload60 tons
Curb weight 12300kg
Axles 4,13T FUWA/BPW
ColorCustomized
China Trailer Manufacturers

Description

China Trailer Manufacturers  Specification

China Trailer Manufacturers lowboy semi trailers are usually used to transport heavy vehicles (such as tractors, buses, special-purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty goods. china sinotruk howo semi trailer – the lower its centre of gravity, the better its stability and safety, enabling it to transport super-high cargo and pass overhead obstacles.

Definition of china sinotruk howo semi trailer
China sinotruk howo semi trailer means that the tyre height is lower than ordinary semi-trailer, the carriage is sunken, the shape is flat, and it is suitable for transporting high, wide, large and heavy goods.

Advantages of china sinotruk howo semi trailer
1. Carrying capacity: the height of china sinotruk howo semi trailer trucks is low, so the loading height is guaranteed when transporting, and china sinotruk howo semi trailer trucks can meet the height restriction requirements and has strong carrying capacity.

2. High safety: chinese trailers for sale lowboy semi trailer trucks has good stability, and the optimised structural design makes the safety of the whole vehicle guaranteed.

3. Adaptability: china sinotruk howo semi trailer lowboy semi trailer trucks is suitable for transporting all kinds of large equipment, machines, engineering machinery, low weight items such as construction materials, bridge components, steel, etc., and it is convenient for loading and unloading, access.

4. Reduce loss: china sinotruk howo semi trailer trucks lowboy semi trailer adopts low bearing platform, which effectively prevents the goods from vibration and loss in the process of transport.

5. Reduce transport costs:trailers made in china lowboy semi trailer adopts semi-trailer design, does not need special forklift or crane and other equipment, short operating time, strong flexibility, greatly saving the transport cost.

China Trailer Manufacturers  Features
The china sinotruk howo semi trailer is also widely loaded, suitable for a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment machine all kinds of steel transport.

1,Series of china sinotruk howo semi trailer lowboy semi-trailers have flat, concave beam and tyre-exposed structure, and the longitudinal beam adopts flat or gooseneck type. The frame is of ladder type and the longitudinal beam section is I-beam, which has the features of high rigidity and high strength.

2,The china sinotruk howo semi trailer  main level of the frame cargo platform is low, which ensures the smoothness of transport, and is suitable for carrying all kinds of construction machinery, large equipment and steel.

The application of china sinotruk howo semi trailer trucks lowboy semi trailer scene
The Sinotruk trailer lowboy semi-trailers is suitable for transporting construction materials, large equipment, machinery and other heavy objects. Due to its strong carrying capacity, wide adaptability and optimised design, china sinotruk howo semi trailer lowboy semi trailer is commonly used in the logistics and transportation of steel, cement, traffic, steel structure and other industries.



China Trailer Manufacturers Parameters

Name sinotruk howo semi trailer lowboy semi-trailers
Vehicle brand Sinotruk group Brand
Number of steel plate springs -/10/10/10/10
Tire Size 235/75R17.5
Wheelbase 9141+1310+1310+1310
Number of axles 4
Curb weight  12300kg
Model NO. HJZ9790TDP
Overall dimensions 16000*2500*1850mm
Number of tires 16
Track width 1950/1950/1950/1950
Axle load -/24000kg (4-axis group)
Total Quality 72300kg
Rated load capacity 60000kg

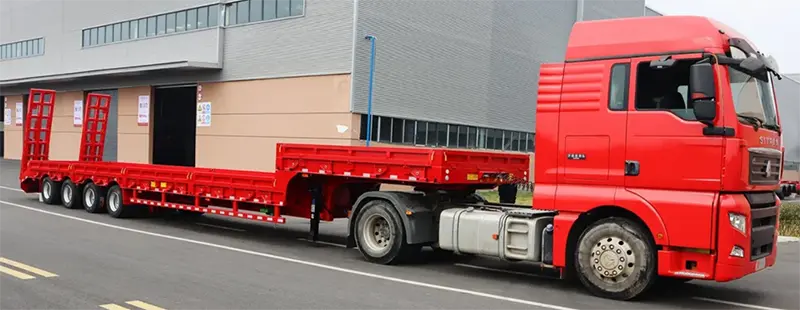

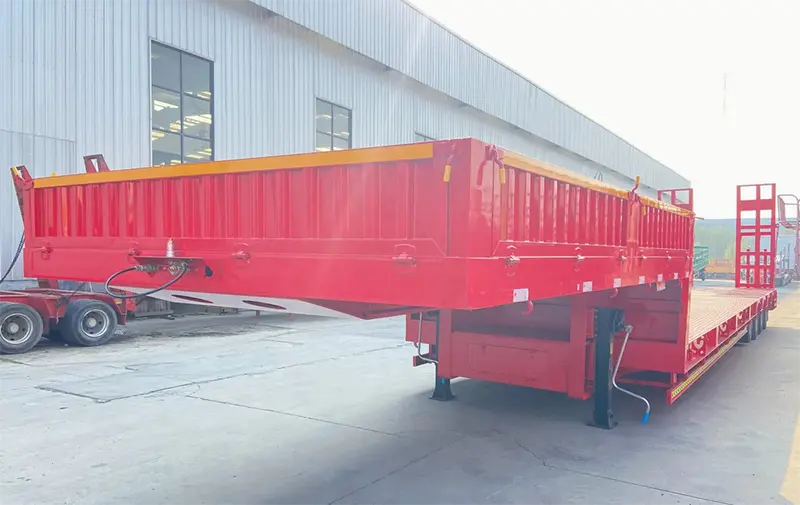

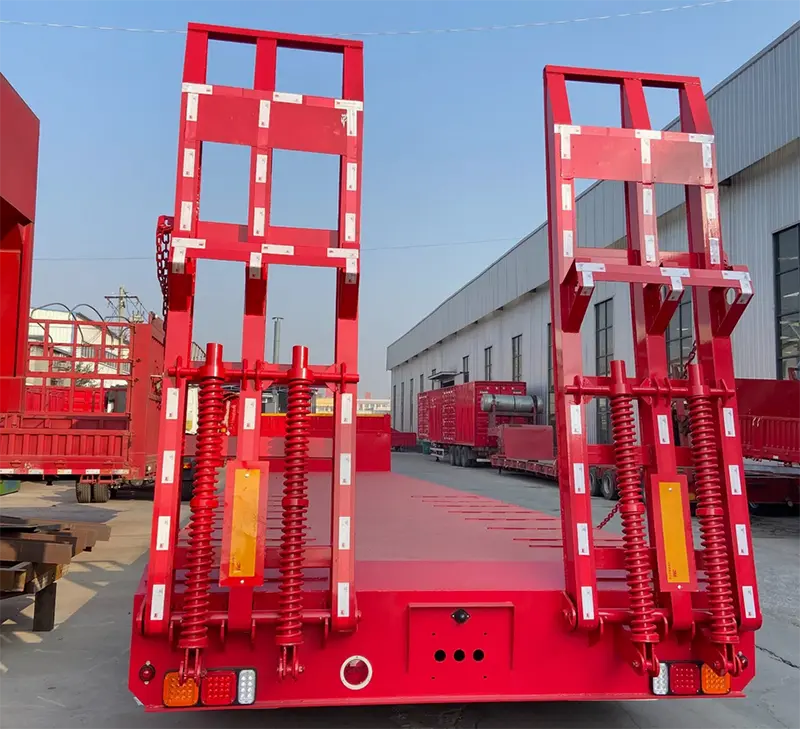

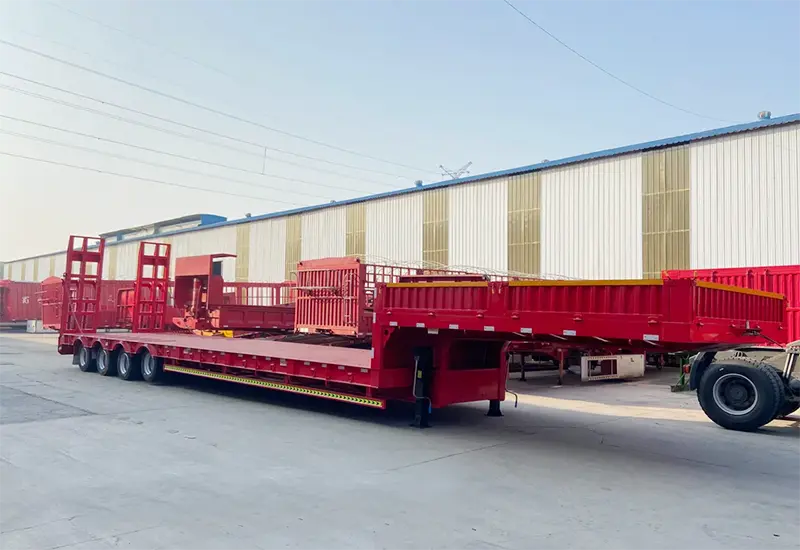

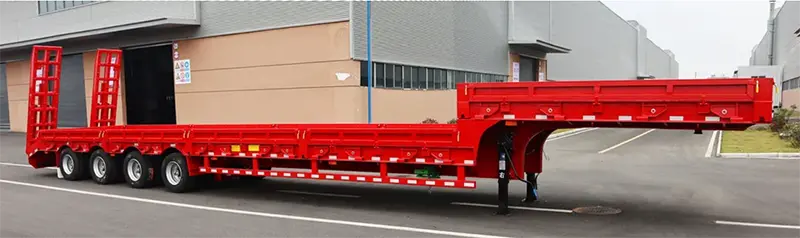

Products picture

China Trailer Manufacturers

China Trailer Manufacturers | china trailer truck | trailers made in china | semi truck chinese​

China Trailer Manufacturers

China Trailer Manufacturers | china trailer truck | trailers made in china | semi truck chinese​

China Trailer Manufacturers

China Trailer Manufacturers | china trailer truck | trailers made in china | semi truck chinese​

china trailer manufacturers-4

China Trailer Manufacturers | china trailer truck | trailers made in china | semi truck chinese​

china trailer manufacturers

China Trailer Manufacturers | china trailer truck | trailers made in china | semi truck chinese​
