Home Trailer Dump Semi Trailer

China Truck Trailer

Overall L*W*H13000*2550*3440(mm)
Payload60tons, customized
Volume (CBM)24 to 45 CBM
Axles3-6 Axle, 13T
Landing gearJOST
SuspensionMechanical Suspension
China Truck Trailer

Description

China Truck Trailer Specification

China Truck Trailer sinotruk trailer is a kind of large semi-trailer, usually, when we unload it, we will first drive it to the designated position, then lift it and unload it. China Truck Trailer sinotruk trailer can help you to carry and unload goods in an easy way, it is very simple to operate and the body is designed so that it can be unloaded quickly.

1. China Truck Trailer sinotruk trailer – High load capacity
China Truck Trailer sinotruk trailer has a high payload capacity, which makes it ideal for transporting heavy loads. With a maximum load capacity of up to 80,000 pounds, this semitrailer can handle even the most challenging hauls with ease.

2. China Truck Trailer  sinotruk trailer – Excellent manufacturing quality
Semi trucks for sale  Our China Truck Trailer sinotruk trailer semi truck dump trailer are designed and manufactured using only the highest quality materials, ensuring they provide exceptional performance and durability. China Truck Trailer sinotruk trailer semi truck dump trailer is made of high-strength steel, which is corrosion-resistant and rust-proof, ensuring a service life of many years.

3. China Truck Trailer sinotruk trailer – Easy to operate
Thanks to the state-of-the-art hydraulic system, the China Truck Trailer sinotruk trailer semi truck dump trailer is extremely easy to operate. The hydraulic lift system allows the trailer to be easily unloaded, making China Truck Trailer sinotruk trailer semi truck dump trailer ideal for businesses looking for a quick and efficient solution to their transportation needs.



China Truck Trailer  Sinotruk trailer Parameters

Trailer Name China Truck Trailer  Sinotruk trailer
Dimensions 13000mm*2550mm*3440mm
Loading 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3
Tire 12R22.5, 11.00R20, 12.00R20, 315/80R22.5
Material Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm
Axles 13T/16T/20T BPW or FUWA
King Pin 2″ or 3.5″
Brake System WABCO Valve with big chamber
LandingGears 28ton ,double speeds
Suspension spring suspension or Air suspension
ElectricalSystem 24v, 7core socket, lights according to European standards (suitable for all market)
Floor 8mm plate, side wall 6mm
Other parts 1 tool boxs, 1 spare tire carrier
Functions

Transport sand,earth work, stone,etc

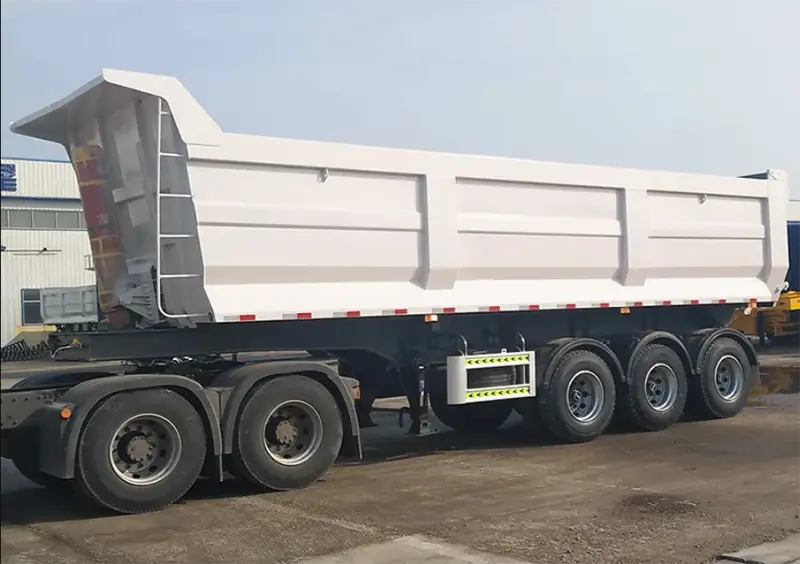

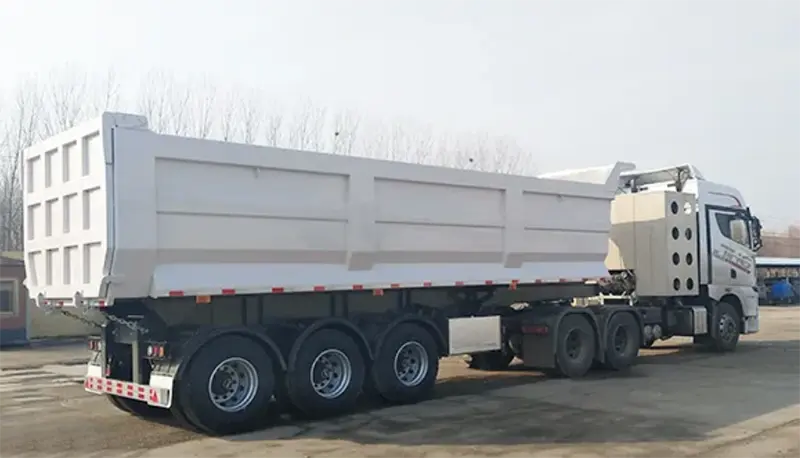

Products picture
