Home Trailer Lowboy Semi Trailer

Chinese Semi Truck

Overall L*W*H13730*2500*1710mm
Payload60 tons
Tare weight10-12 tons
Axles 4,13T FUWA/BPW
ColorCustomized
Chinese Semi Truck

Description

Chinese Semi Truck Specification

Chinese Semi Truck is usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, engineering machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy cargo.The Chinese sinotruk howo semi trailer Truck lower its centre of gravity, the better its stability and safety, and the stronger its ability to transport super-high cargo and pass overhead obstacles.


Chinese Sinotruk Howo Semi Trailer Truck Structure:
The chinese semi truck low-profile semi-trailer usually adopts a concave beam (or well) frame, with the front part of the frame being the gooseneck (the towing pin in the front part of the gooseneck is connected to the towing saddle on the tractor, and the rear end of the gooseneck is connected to the semi-trailer frame), the middle part being the cargo platform (the lowest part of the frame), and the rear end being the wheel frame (with wheels).


Chinese Sinotruk Howo Semi Trailer Truck Loading:
When machinery and equipment is loaded onto a flatbed semi-trailer trailers made in china, it is usually loaded from the rear of the semi-trailer, i.e. by moving the machinery and equipment from the top of the rear wheel frame or by removing the wheels and then securing the machinery and equipment to the china semi trailer.



Chinese Semi Truck Parameters

Chinese Semi Truck specification

Sinotruk howo trailer Longitudinal beam specification

Overall outline (box size)

Height

500MM    Q345B

Length

13730MM

Upper wing

16MM/140MM

Width

2500MM

Lower wing

20MM/140MM

Height

1700MM

Web

8MM

Vehicle Configuration Specifications

Guardrail

Height 1100MM Reserved for guardrail socket

Traction pin

50# traction pin 2 traction pin positions

Climbing ladder

hydraulic folding ladder

legs

JOST 28T double speed legs

Swivel locks

14 two high container swivel locks





Base plate

5MM

Axle

3 axles Australian standard Fuwa brand

Toolbox

2

tyres

255/70R22.5 tyres to export standard

Spare wheel carrier

1 under beam

steel rim

with aluminium rim

Air reservoir

Australian standard Air reservoir FUWA brand

Suspension

Air suspension Reverse mount

Same pace

WABCO brake valve

Brake system

Double air chamber

Light fittings

LED lamps to Australian standards

Electrical system

12V

Colour: to be confirmed

Traction pin saddle height: 1270-1300MM

Rated load capacity: 60T

Gross vehicle mass: approx. 10.5T

Remarks: Can pull 2 x 20ft containers and 1 x 40ft container

Products picture

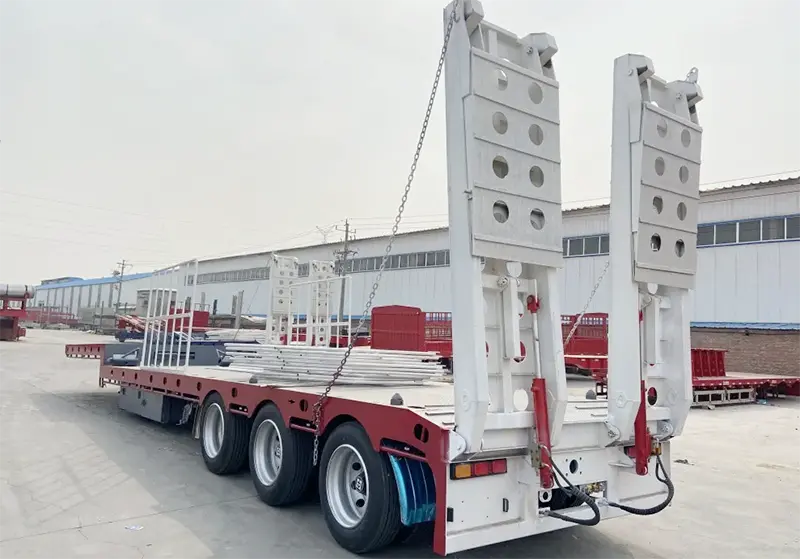

chinese semi truck

Chinese Semi Truck | chinese trailers for sale | chinese trailer manufacturers | sinotruk semi trailer

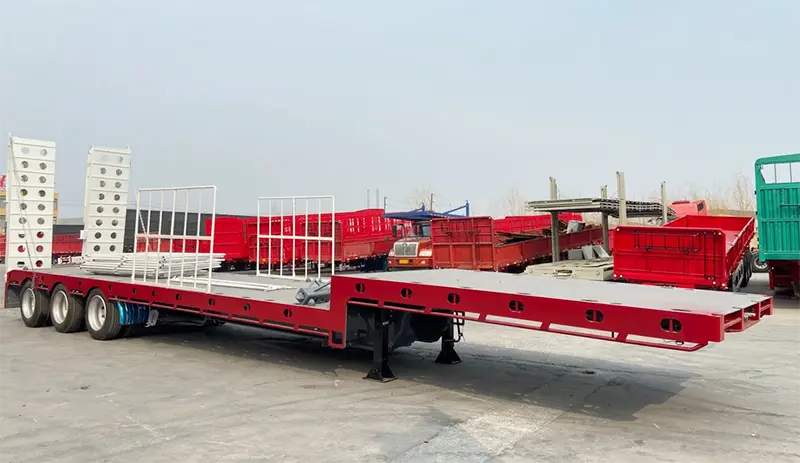

chinese semi truck

Chinese Semi Truck | chinese trailers for sale | chinese trailer manufacturers | sinotruk semi trailer

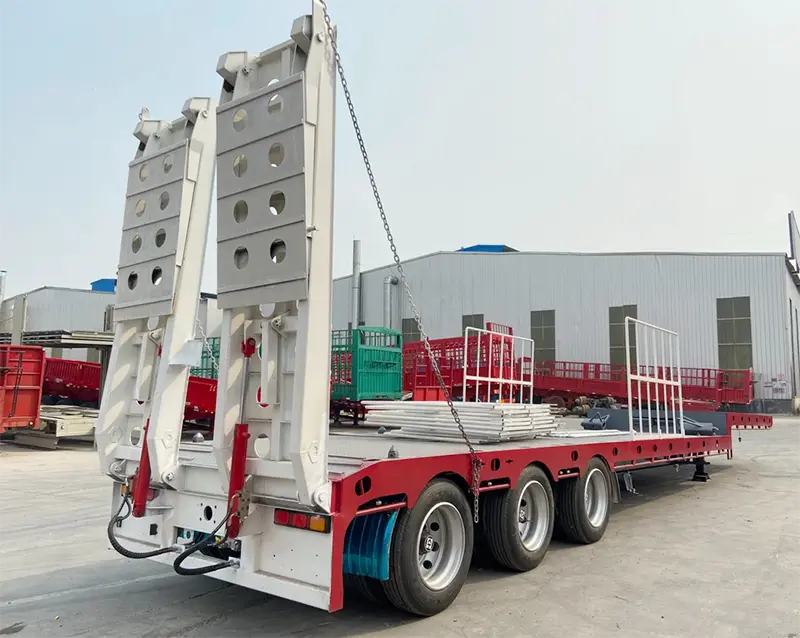

chinese semi truck

Chinese Semi Truck | chinese trailers for sale | chinese trailer manufacturers | sinotruk semi trailer

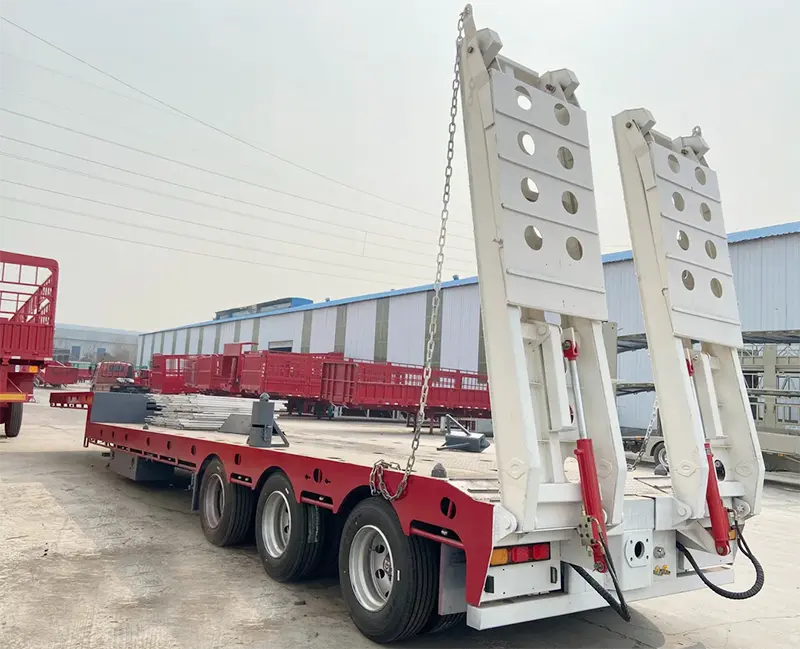

chinese semi truck

Chinese Semi Truck | chinese trailers for sale | chinese trailer manufacturers | sinotruk semi trailer
