Home Trailer Cement Tank Trailer

Concrete Mixer Trailer

Overall L*W*H10700*2500*3950mm
Total volume40-48cbm
Payload 54T
Tire12 units
ABSOptional
ColorCustomized
Concrete Mixer Trailer

Description

Concrete Mixer Trailer Specification

China trailer manufacture Concrete Mixer Trailer trailer is used to transport bulk powder such as cement, flyash, and other powder which is smaller than 1mm.
It is cement tank trailer, and we can also supply cement tanker truck.

The Concrete Mixer Trailer is able to delivery more cement by one trip, and save packaging cost for the user.



Advantage:

1. Concrete Mixer Trailer trailer, adopt high strength wear-resistant steel. To fabric the most durable tankers, especially for Africa Market, considering the road condition.

2. Sinotruk trailers adopts the advanced machine, that ensure the high quality of welding seams, long service life and good appearance in tank body.

3. After the production, all the Cement Tanker Trailer will go through the pressure test and metal inspection testing, to ensure a good sealing property of our cement tank trailer.

4. There are 10 air bags inside the tank (others only 6 or 8 ).

5. Sinotruk trailers uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better, the discharging speed can reach to 1.6ton per minute



Concrete Mixer Trailer Parameters

Trailer Model

Sinotruk-trailers Concrete Mixer Trailer

Overall Dimension

(Lx W x H)(mm)

10700*2500*3950mm

Function

transport bulk powder

Loading Weight( KG)

54000

Thickness(mm)

Tank body: Q235 5mm carbon steel

End plate: Q235 5mm carbon steel

Air compressor

12m3/minute  Bohai brand

Engine

Diesel engine: Weichai Tianhe 4102

Compartment

1 inner fluidized bed: air bag

Axle

3x13Ton, ZY brand

Suspension system

Mechanical leaf spring suspension

Leaf spring

90(W)mm*13(Thick)mm*10 Layer

Manhole cover

500mm manhole cover. 2 sets

Landing Gear

28Ton, double speed,Yahua brand

Tire

12R22.5, Taitong brand 12units

Traction Pin

2” or 3.5” bolts in, changable

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Side guard

According to customer’s requirement

Brake system

Dual Line braking system

Emergency valve

WABCO

Brake air chamber

Six big double air chambers

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.

Packing

Polish with wax before shipping

Products picture

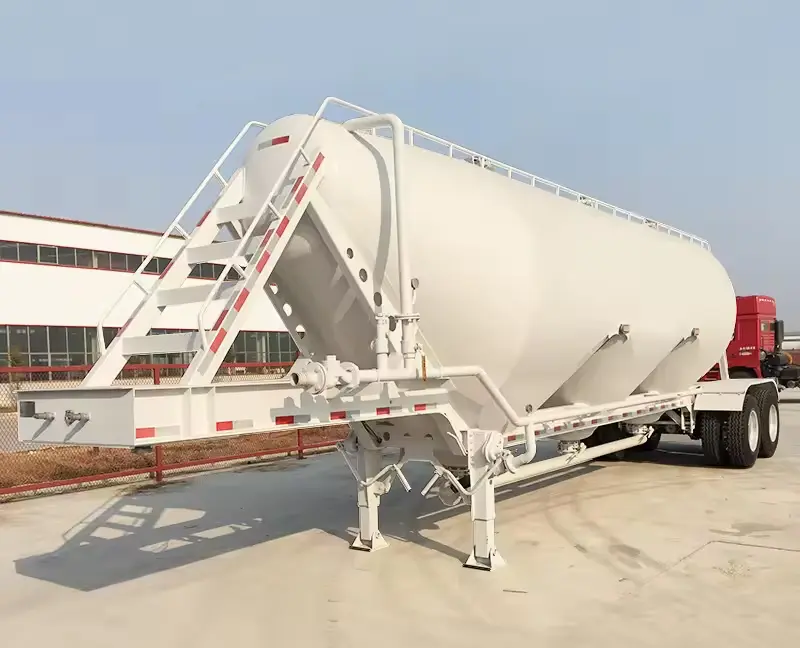

concrete mixer trailer-1

Concrete Mixer Trailer | concrete mixers for sale | concrete mixers | tank and trailer

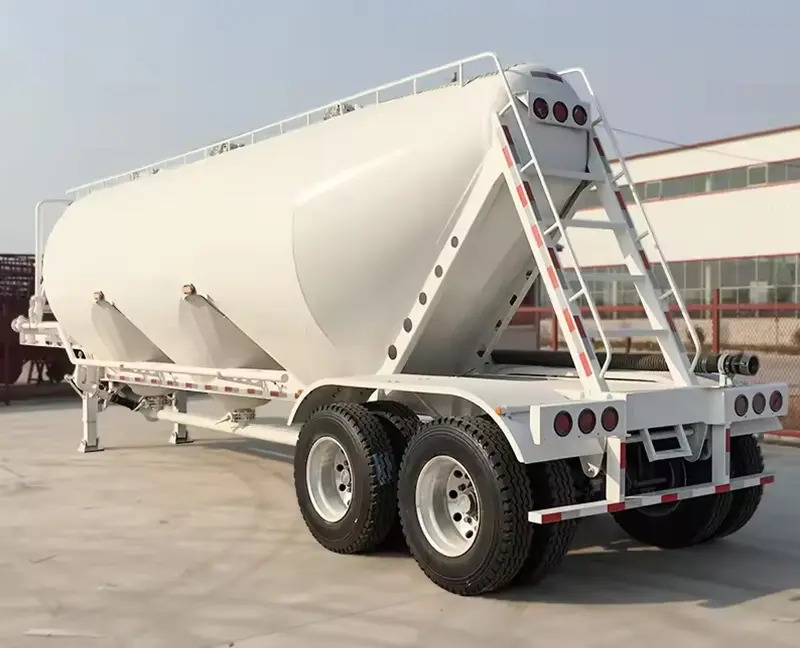

concrete mixer trailer-2

Concrete Mixer Trailer | concrete mixers for sale | concrete mixers | tank and trailer

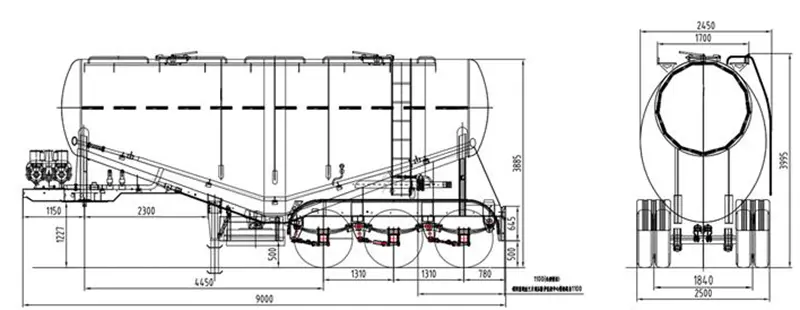

cement tanker semi trailer-3



Concrete Mixer Trailer | concrete mixers for sale | concrete mixers | tank and trailer
