Home Trailer Container Trailer

Container Truck Trailer​

Dimensions12500*2500*1570mm
Tire12.00R
Loading Capacity<80 tons
AxleFUWA 13TON Axle
ManufacturersSinotruk company
ColorCustomized
Container Truck Trailer​

Description

Container Truck Trailer​ Specification

Container Truck Trailer​ are essential components in the transportation industry for securely and efficiently moving shipping containers. Constructed from strong and durable steel materials, these chinese trailers for sale chassis provide the necessary structure and support for transporting containers of different sizes. With an adjustable design, sinotruk trailer can accommodate various container lengths, ensuring a secure fit during transit.



Container Truck Trailer​ Parameters

Dimension (mm)
12500mm*2500mm*1550mm or customized size
Tare Weight
6.5-7 Ton
Payload
40T-80T
Main Beam
Q 345B high quality Carbon Steel
Beam height 500 mm, Upper plate 14 mm, lower plate 16 mm: Middle plate 8 mm
Platform
3/4mm pattern board
Twist Locks
12 pcs container lock
Axles
2/3/4 pcs, 13T16T,BPW/FUWA /
King Pin
2 or 3.5 inch
Leaf Spring
90*13-10layer, 4/6/8 sets
Suspension system
Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type )
Tire
12R22.5, 12.00R20,315/80R22.5,12 pcs
Landing Gear
Standard 28Ton, JOST brand
Brake system
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;Two 40L air tanks, ABS Optional
Electrical system
1. Voltage:24V, LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
3. Receotacle: 7 wire

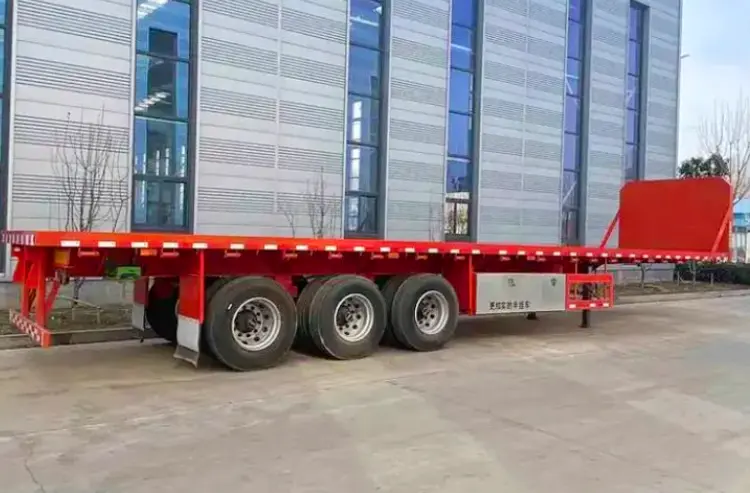

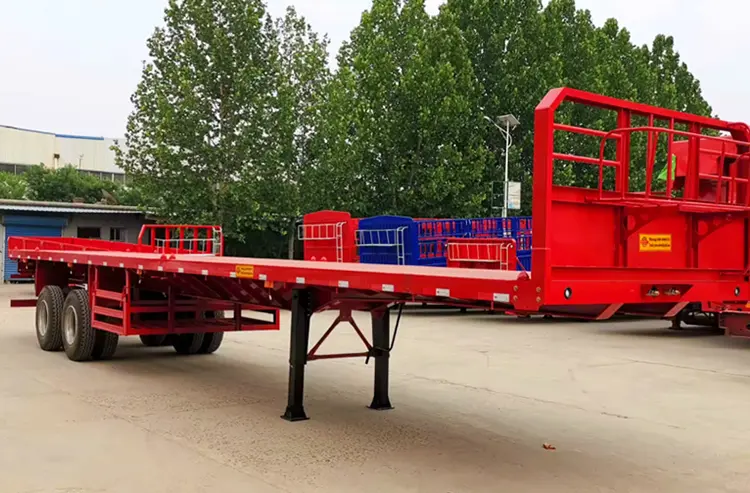

Products picture

container truck trailer​

Container Truck Trailer​ | container truck trailer​ | shipping container on trailer​ | sinotruk trailer

container truck trailer​

Container Truck Trailer​ | container truck trailer​ | shipping container on trailer​ | sinotruk trailer
