Home Trailer Fuel Tank Trailer

Crude Oil Tank Trailer

Overall L*W*H12500*2500*3900 mm
Tare weight40000L-55000L
Load Capacity40T
Axle3-6 Axle, 13T
Tire Number12-24
ColorCustomized
Crude Oil Tank Trailer

Description

Crude Oil Tank Trailer Specification

As a Chinese semi-trailer manufacturer specializing in Crude Oil Tank Trailer, we are pleased to introduce our latest products to the international market. Our trailers are equipped with the latest features and technology, allowing them to transport gasoline and other petroleum products reliably and efficiently. Let’s take a closer look at its features and benefits.

Features of Crude Oil Tank Trailer

1. Large capacity

Crude Oil Tank Trailer are designed to transport large volumes of gasoline and other petroleum products. This makes it ideal for businesses that need to transport large amounts of fuel frequently.

2. High quality materials

We use only the highest quality materials to build our trailers. The main body of the trailer is made of high-strength steel, which is corrosion-resistant and wear-resistant. This ensures a long service life for the trailer, even when used for extended periods in harsh conditions.

3. Safe and reliable

Safety is our top priority. Our trailers are equipped with advanced safety features such as emergency braking systems, anti-spill valves, and grounding systems to prevent static electricity. Additionally, our trailers meet industry standards and undergo rigorous inspections to ensure they are fully compliant with safety regulations.

4. Easy to operate

Our 3-axle tank semi-trailers are designed with user-friendliness in mind. The trailer is easy to operate, even for inexperienced drivers. Additionally, trailers can be customized to meet each customer’s specific needs.

5. Environmental protection

Our trailers are environmentally friendly. They are designed to minimize the risk of any fuel leaking into the ground, which could harm the surrounding ecosystem. Additionally, our trailers have a low carbon footprint, making them an excellent choice for environmentally conscious businesses.

Crude Oil Tank Trailer Parameters

Trailer Model

30000l-55000l  Crude Oil Tank Trailer

Overall Dimension(Lx W x H)(mm)

12500x2500x3900mm

Function

Transport Fuel, Oil, Diesel

Material

Tank body: Carbon steel / Aluminum / Stainless

Loading Weight( KG)

40000

Axle Brand

FUWA Brand 13Ton Axle

Axle Number

Three

Compartment

3 compartments 15000/15000/20000L

Manhole cover

500mm manhole cover. 3 sets with 3 breath valve.

Discharge valve

4″disc valve

Discharge pipe

4″seamless steel tube

Bottom valve quantity

3 units

Suspension

Leaf spring suspension

Main beams

Opting for high tensile steel Q345B welded by automatic submerged-arc processes

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. Material is Q345B Steel

Tire Type and quantity

12R22.5  12units Triangle brand

Traction Pin

50mm (optional 90mm)

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

Standard brand 28ton external

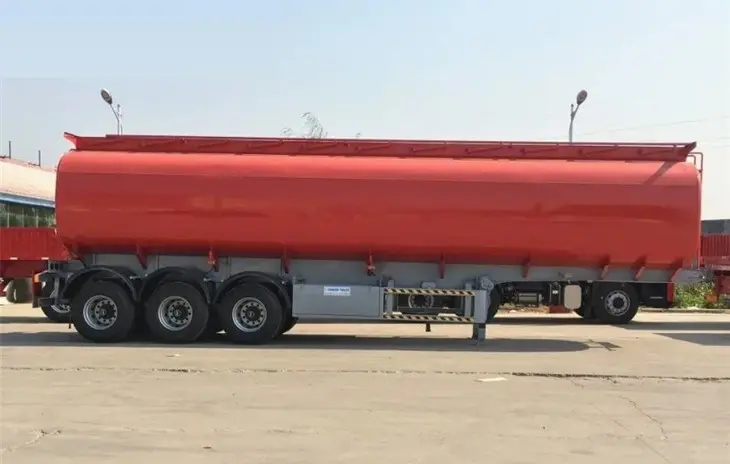

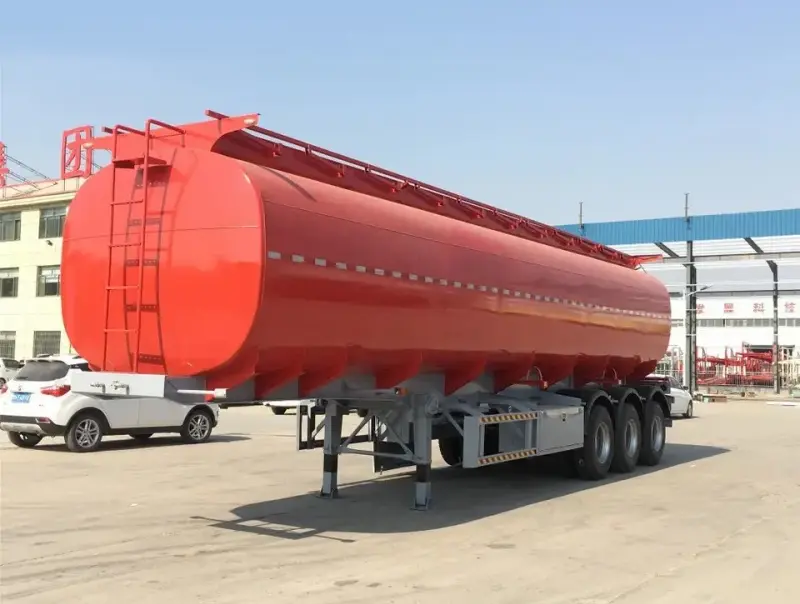

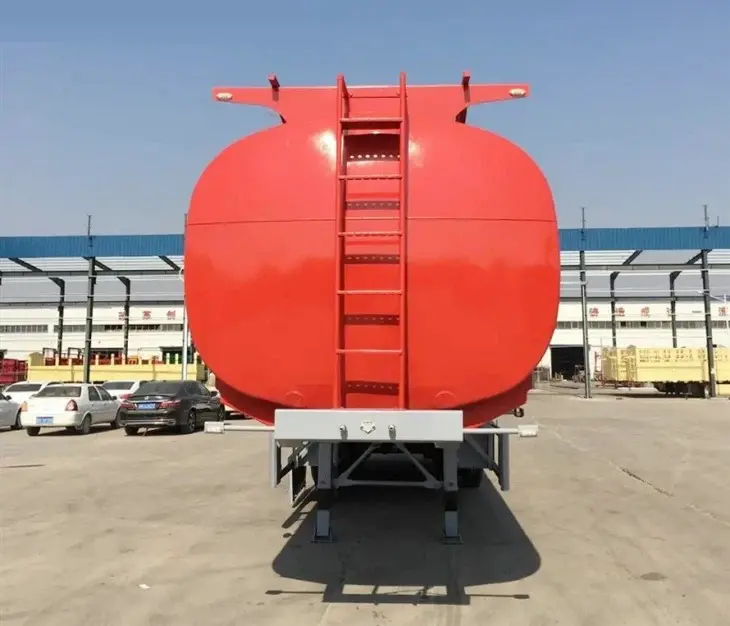

Products picture

crude oil tanker trailer | oil tank semi trailer   |  oil tanker trailer for sale

crude oil tanker trailer | oil tank semi trailer   |  oil tanker trailer for sale

crude oil tanker trailer | oil tank semi trailer   |  oil tanker trailer for sale
