Overall L*W*H:13000x2600x3420mm
Trailer Sides:1800mm
Description
Drop Side Semi Trailer Specification
Sinotruk Drop Side Semi Trailer is a type of trailer commonly used in the transportation and construction industries.
Sinotruk Drop Side Semi Trailer is designed to transport and unload bulk materials such as gravel, sand, coal, and various agricultural products.
The unique feature of sinotruk trailer Drop Side Semi Trailer is its ability to tilt or tip the entire bed to one side, allowing the load to be quickly and efficiently discharged to the side of the trailer.
Drop Side Semi Trailer Parameters
|
Dimension
|
12500*2500*1550mm
|
|
Loading capacity
|
40 ton 60ton 80ton
|
|
Tire
|
11.00R20,12R22.5,12.00R20,385/65R22.5 sinotruk trailer brand
|
|
Material
|
Main beam Q345B upper flange 14mm,middle 8mm,down 16mm
|
|
Axles
|
13T /16/20/25 to BPW brand
|
|
Kingpin
|
2 inch or 3.5 inch JOST Brand
|
|
Brake Syestem
|
Wabco Valve with air chamber
|
|
Landing Gears
|
Jost brand two-speed Manual operating heavy duty 28 ton
|
|
Suspension
|
Bogie suspension,spring suspension ,Air suspension
|
|
Floor
|
3mm,4mm,6mm diamond steel plate
|
|
Oter parts
|
2 tool boxes 2 spare tire carrier
|
|
Functions
|
Transport container,loose cargo ,bulk cement ,bulk rice ,etc
|
|
Vehicle painting
|
KTL Electrophoresis painting and powder spraying
|

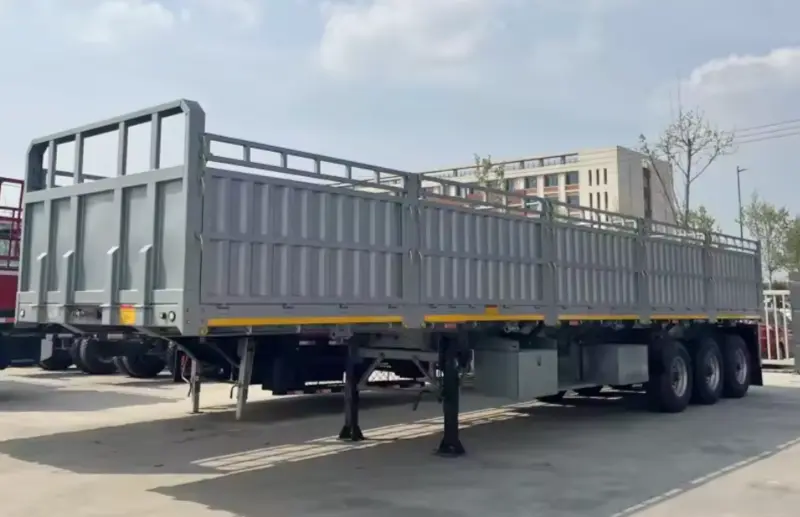

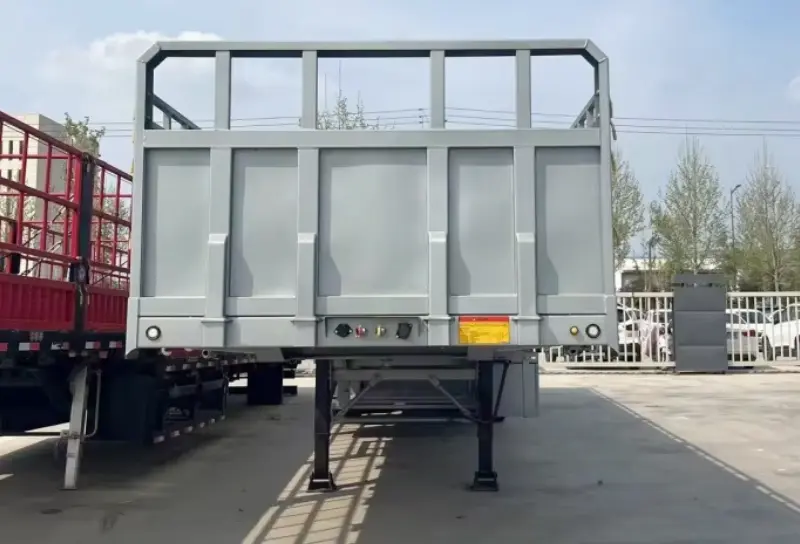

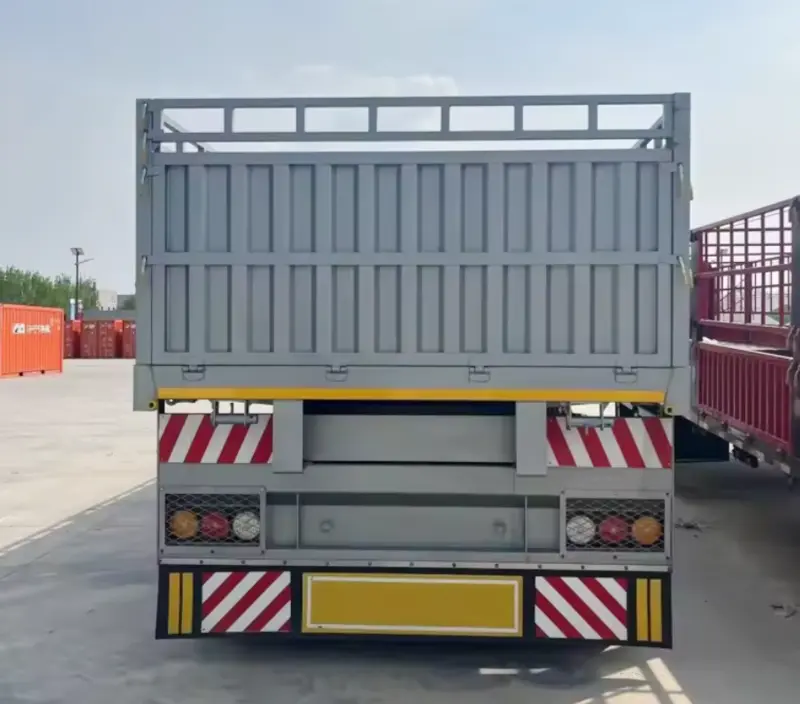

Products picture
Sinotruk Drop Side Semi Trailer | high side dump trailer for sale | side dump trailers for sale in north dakota
Sinotruk Drop Side Semi Trailer | high side dump trailer for sale | side dump trailers for sale in north dakota
Sinotruk Drop Side Semi Trailer | high side dump trailer for sale | side dump trailers for sale in north dakota
