Dropside Side Tipper Trailer

Dropside Side Tipper Trailer Specification

Dropside Side Tipper Trailer consists of a screw rod transmission mechanism, a bevel gear transmission mechanism, a two-speed reduction box, a transmission rod,an operating handle, and the like.

The axle is a square tube axle. sinotruk trailer axle body is provided with a platform for mounting a leaf spring suspension and a bracket for installing a brake air chamber.

Sinotruk trailer Dropside Side Tipper Trailer of suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and has the function of absorbing driving vibration and so on.

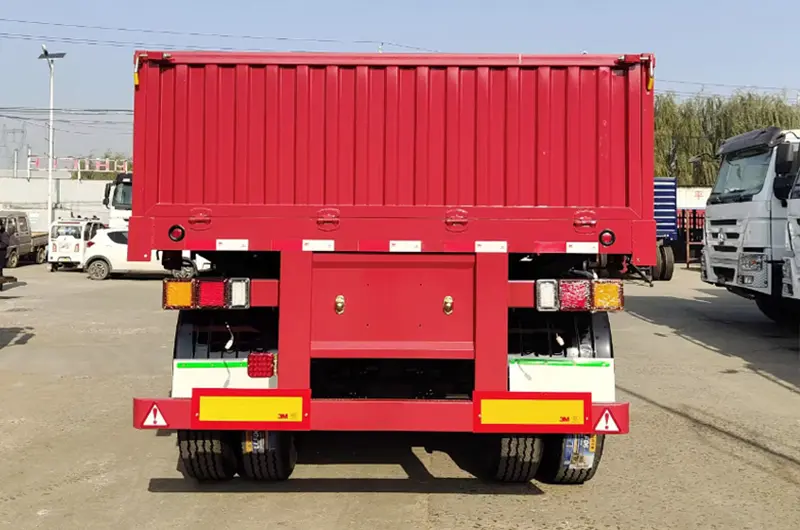

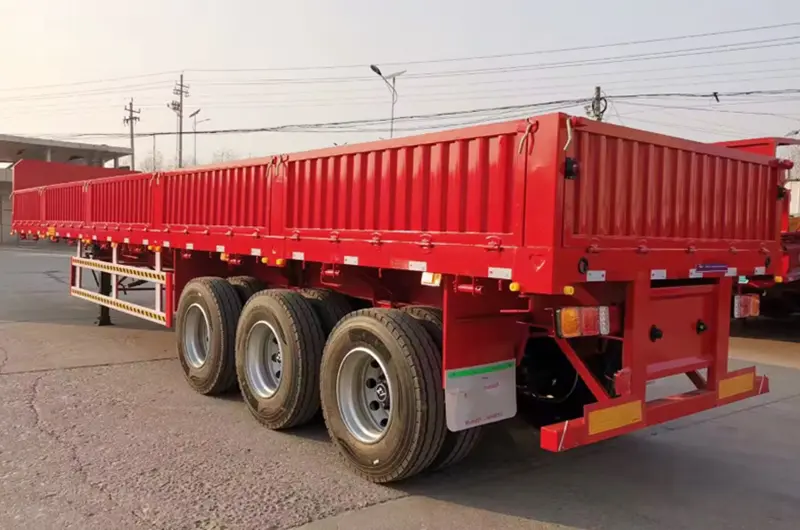

The rear of the frame is equipped with brake lights, turn signals, parking lights, reversing lights, license plate lights, fog lights and triangular reflectors, and front and side lights with front position and width lights, side marker lights, front right Equipped with ABS indicator.Thevoltage of various lamps is DC 24V.

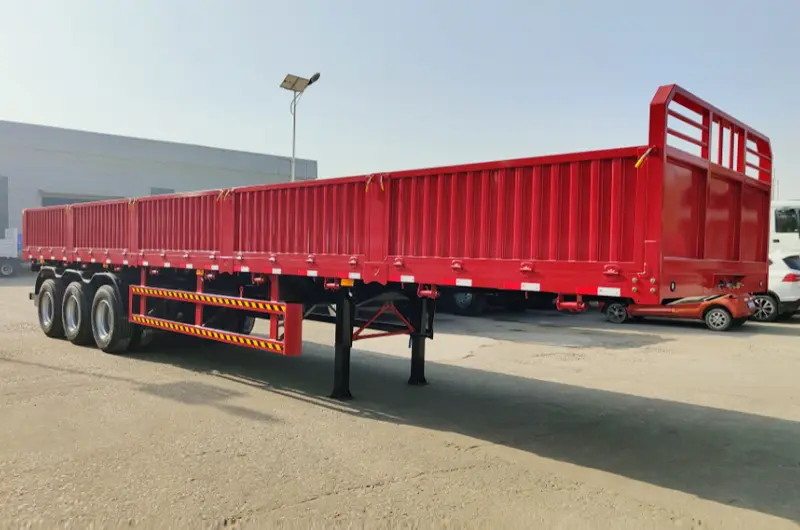

Dropside Side Tipper Trailer Parameters

Dimension(mm): 12500mm*2500mm*1500mm

Trailer Sides: 1200mm, or box type sides

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Sinotruk Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
