Home Trailer Van Semi Trailer

Dry Van Trailer

Overall L*W*H13750*2550*4000mm
Tare weight8000kg
Payload30-50Tons
Axle3 axles  FUWA/SAF/BPW  brand optional
KingpinJOST 2"/3.5" bolt-in king pin
ColorCustomized
Dry Van Trailer

Description

Dry Van Trailer Specification

The Dry Van Trailer is a form of the van semi-trailer. The Dry Van Trailer is mainly used to transport all kinds of pallet goods such as auto parts, beer and beverages.
When loading and unloading goods, the curtains on both sides can be quickly opened, which can be used by forklifts. Loading and unloading goods on both sides at the same time, generally within 5 minutes can load or unload the whole truck, is currently one of the fastest loading and unloading cargo transportation tools, at the same time, the car also has the rain and dustproof of the van Features.



Dry Van Trailer Parameters

Dry Van Trailer
Tare weight 8000kg
Payload 30-50Tons
Overall Length 13750* 2550* 4000 mm  ( Our trailers are very compliant with Russian driving standards )
Color Customized
Chassis Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-arc processes. Upper plate:16mm, width200mm; middle plate: 8mm; bottom plate: 18mm, width 200mm
Axle 3 axles  FUWA/SAF/ brand optional
Tire 385/ 65R22.5 ,  Triangle, Linglong, Double star brand optional
Wheel rim 8.5-20/9.0-20/ 8.25-22.5/ 9.0-22.5/ 9.75  optional
Suspension High standard , Air suspension
Leaf spring Without
Floor   30 mm Waterproof phenolic flooring (double sided)
Kingpin JOST 2″/ 3.5″ bolt-in king pin
Landing gear JOST two-speed, manual operating, heavy duty landing gear
Braking system WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks
Painting Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights
Vehicular applications Bulk Cargo Transport

Products picture

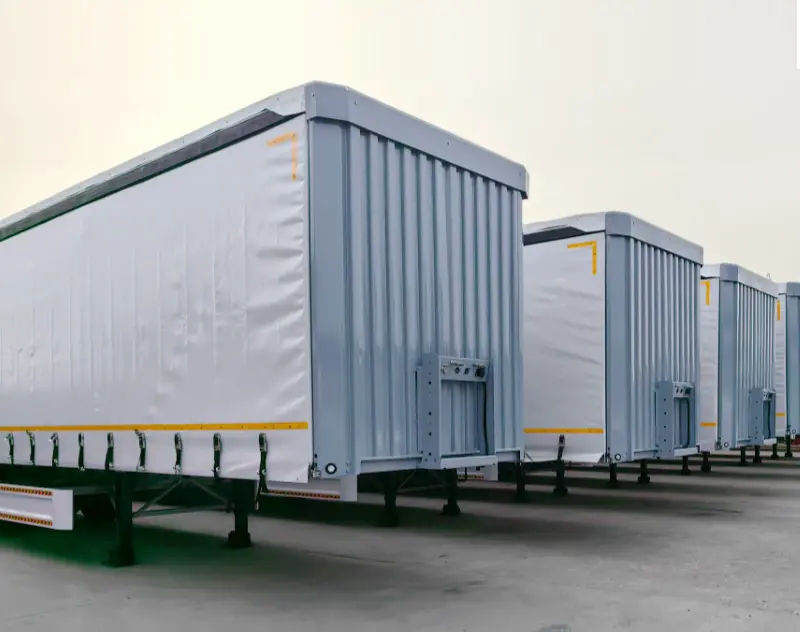

Dry Van Trailer -1

Dry Van Trailer | van semi trailer for sale | van semi trailer price

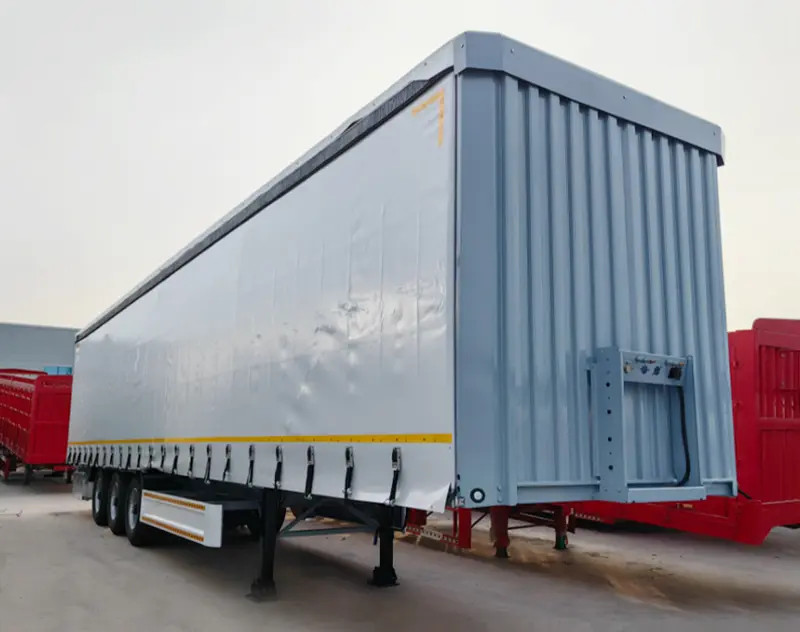

Dry Van Trailer-2

Dry Van Trailer | van semi trailer for sale | van semi trailer price

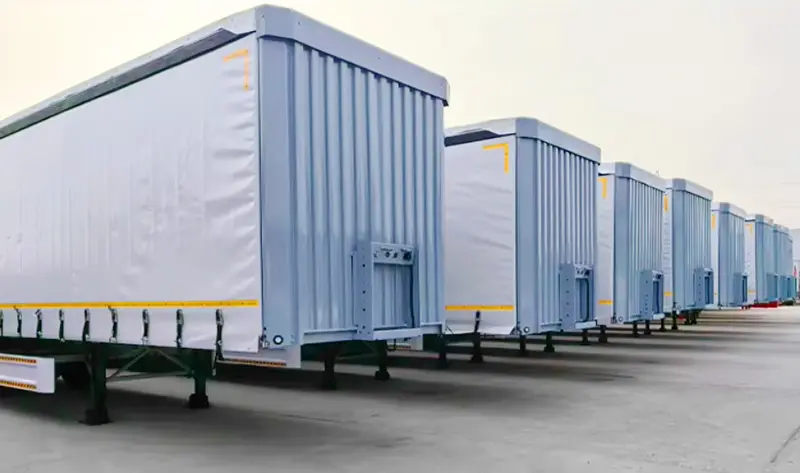

Dry Van Trailer-3

Dry Van Trailer | van semi trailer for sale | van semi trailer price
