End Dump Semi Trailer | semi trailer end dump truck

Description

End Dump Semi Trailer Specification

Compared with traditional manual unloading, End Dump Semi Trailer is efficient and fast. Through automatic unloading, the unloading speed can be greatly improved, labor costs can be saved, and work efficiency can be improved.

End Dump Semi Trailer for sale usually have a large load capacity and can carry a large amount of bulk materials. Its structural design is stable and can maintain good stability during transportation.

End Dump Semi Trailer can adapt to various roads and working environments, such as construction sites, mines, ports, etc. It can not only drive on smooth roads, but also adapt to some more complex terrain and working conditions.

The capacity and specifications of different dump trailers vary by manufacturer and model. Generally speaking, a dump trailer is a vehicle used to transport bulk cargo and has an automatic unloading function.

End Dump Semi Trailer Parameters

Trailer Name	End Dump Semi Trailer
Dimensions	10900mm2500mm3600mm
Loading	30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3
Tire	12R22.5, 11.00R20, 12.00R20, 315/80R22.5
Material	Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm
Axles	13T/16T/20T BPW or FUWA
King Pin	2″ or 3.5″
Brake System	WABCO Valve with big chamber
LandingGears	28ton ,double speeds
Suspension	spring suspension or Air suspension
ElectricalSystem	24v, 7core socket, lights according to European standards (suitable for all market)
Floor	8mm plate, side wall 6mm
Other parts	1 tool boxs, 1 spare tire carrier
Functions	Transport sand,earth work, stone,etc

End Dump Semi Trailer Drawings

End Dump Semi Trailer | semi end dump trailer | semi trailer end dump truck

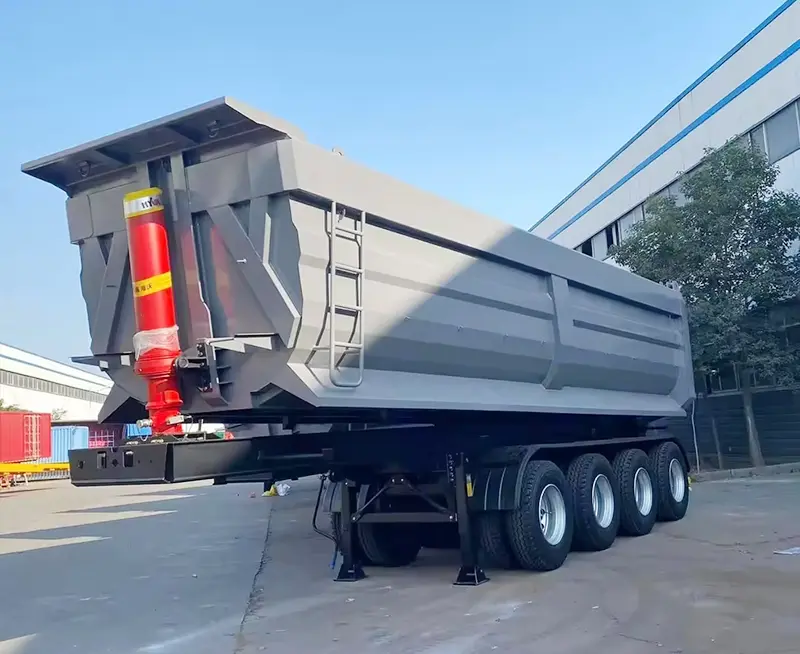

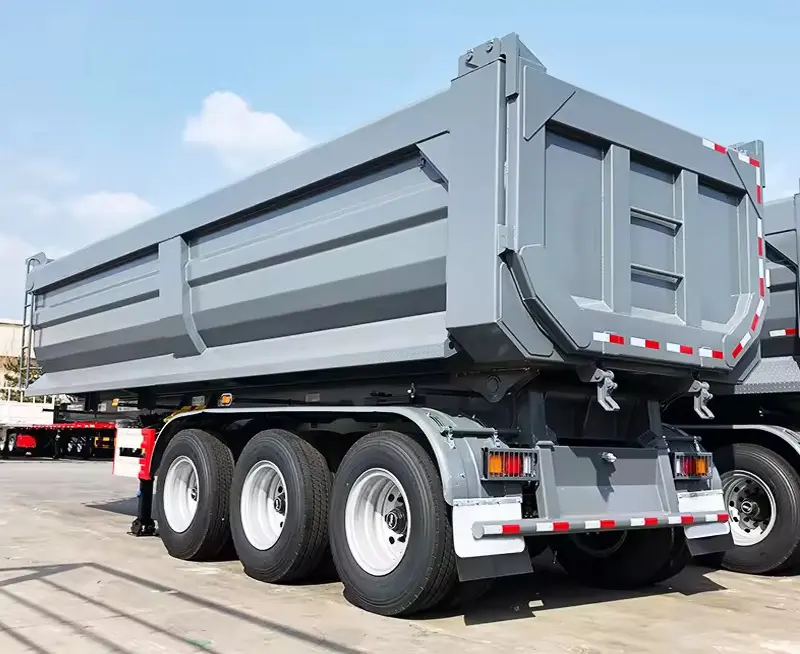

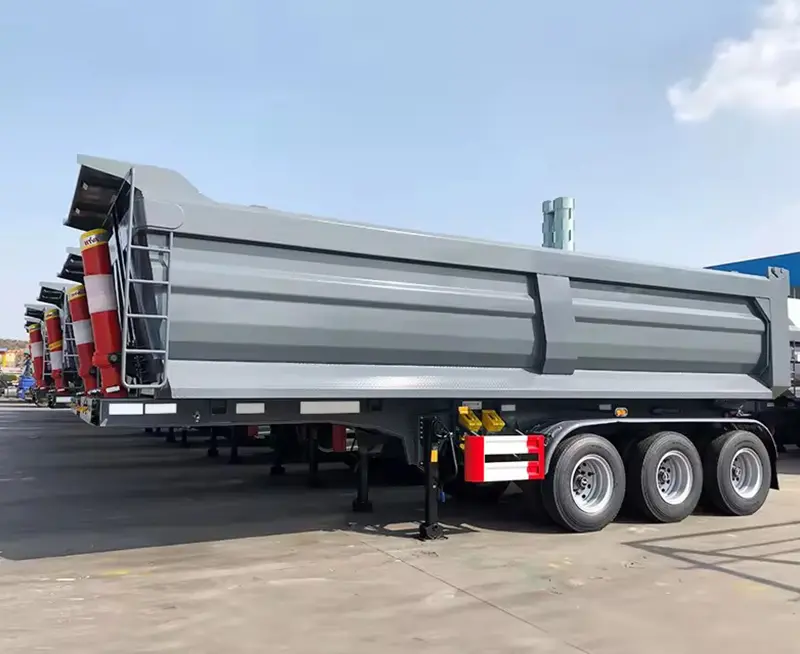

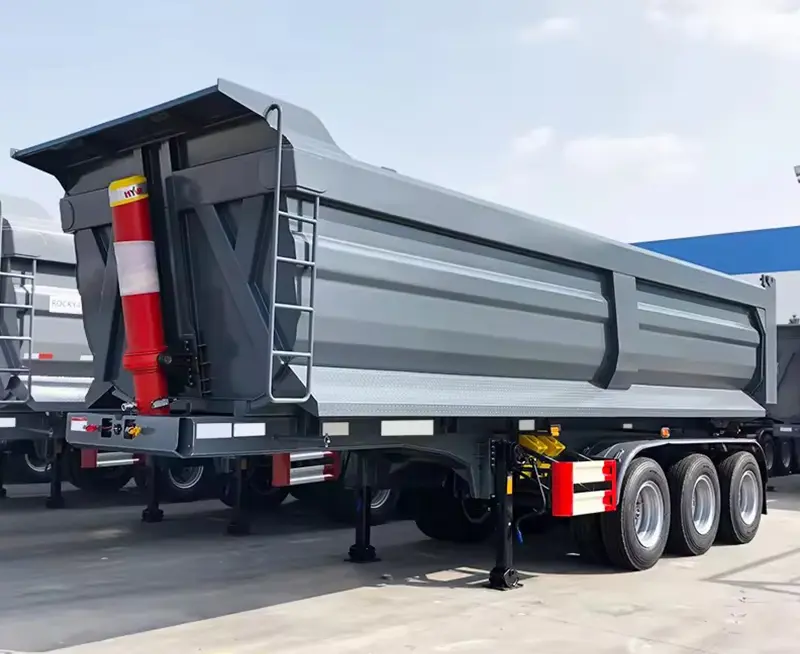

Products picture

End Dump Semi Trailer | semi end dump trailer | semi trailer end dump truck
