Size(mm):22000*3000*1650mm
Load Capacity:80T

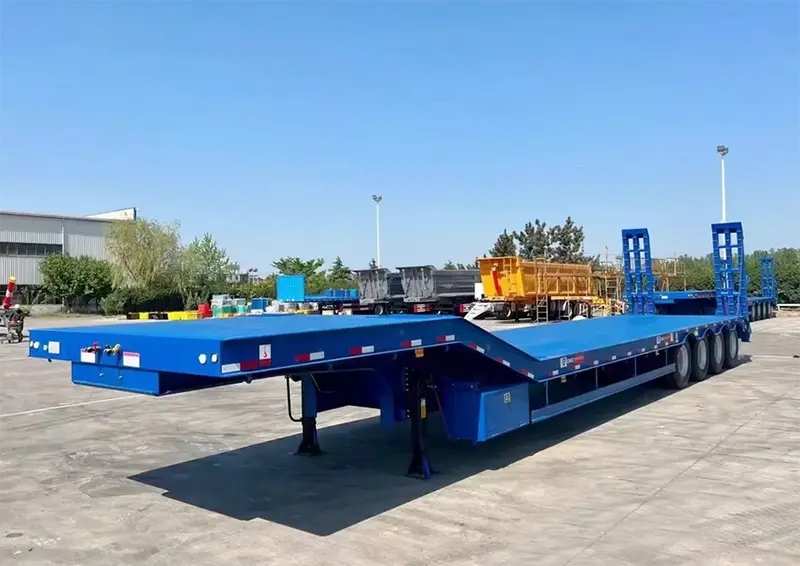

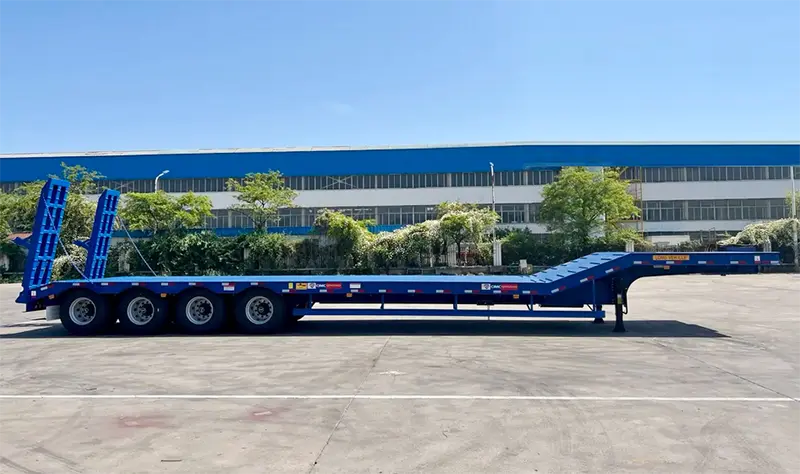

Extendable Low Bed Trailer Specification
Extendable Low Bed Trailer is a means of transport for transporting over-height, over-width, and over-weight cargo. Compared
with other types of semi-trailers, the Extendable low bed trailer has a lower compartment, a flat floor, and no fixed shell or roof, so it can transport goods with a higher height.
Extendable Low Bed Trailer Parameters
Main Beam
|
Material:Q345/T700
|
|
Height:500mm
|
|
Upper Plate:24mm
|
|
Middle Plate:14mm
|
|
Lower Plate:26mm
|
Platform Thickness:
|
4MM
|
Axle:
|
3/4 Axles*13/16 Ton Vehicle Master/FUWA/BPW/Other
|
Tire:
|
12R22.5/8.25r20(12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
Rim:
|
9.0022.5/6.5-20(1216 peces) Steel/Aluminum
|
Leaf Spring:
|
90mm*13mm*10/90mm”16mm10Pcs
|
Suspension System
|
Mechanical or Air Suspension
|
Ladder:
|
Mechanical Spring / Hydraulic
|
Kin Pin:
|
50#(2″)/90#(3.5″)JOST/Other Brand,Changeable
|
Landing Gear:
|
28 Tons Two Speed,JOST/Other Brand
|
Tool Box
|
Steel or Aluminum
|
