Extendable Lowboy Trailer

Description

Extendable Lowboy Trailer Specification

Extendable Lowboy Trailer consists of 4 axles, which help distribute weight more evenly and provide greater stability when carrying heavy loads. Extendable Lowboy Trailer can carry heavy loads ranging from 80 tons to over 100 tons.

The lowbed structure means that the bed of the Extendable Lowboy Trailer is lowered in comparison to standard trailers. This design of semi Extendable Lowboy Trailer lowers the center of gravity, making it easier to transport taller loads without exceeding height restrictions.Extendable Lowboy Trailer adpot spring ramps that allow for easy loading and unloading of equipment.

Extendable Lowboy Trailer Parameters

Dimension(Lx W x H)(mm)	1300025001750(As arranged)
Wheelbase(mm)	8580+1310+1310
Curb Weight(KG)	8000
Loading capacity(KG)	60000
Axle Brand	ORENO/FUWA or BPW 13/16/20Ton Axle
Axle Number	3
Rim type	9.0 22.5 x12 pcs
Tyre type	12.00R20 x 12 pcs
Suspension system	Mechanical suspension/ pneumatic suspension
Steel Spring	10/10/10
Frame	The height of the beam(Carling ) is 500mm, upper plate is18mm, down plate is 20mm, middle plate is 14mm.according to the buyer’s requirement
Platform plate	3-8mm Diamond Plate
Traction Pin	JOST 90# (3.5”) or 50#(2.0”)
Landing Leg	28T load landing leg
Stair Folding Rear	Two pieces
Ramp	The ramp is powered by a hydraulic pump or manual operation
Brake system	Dual Line braking system
	Four double and two single chamber ,
	Valve WABCO Brand
Electrical system	24V,7 Pole plug
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Tool box	One pieces(1000500500mm), equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1unit cranking bar
Painting	Color by customer’s requirement
Packing	Polish with wax before shipping

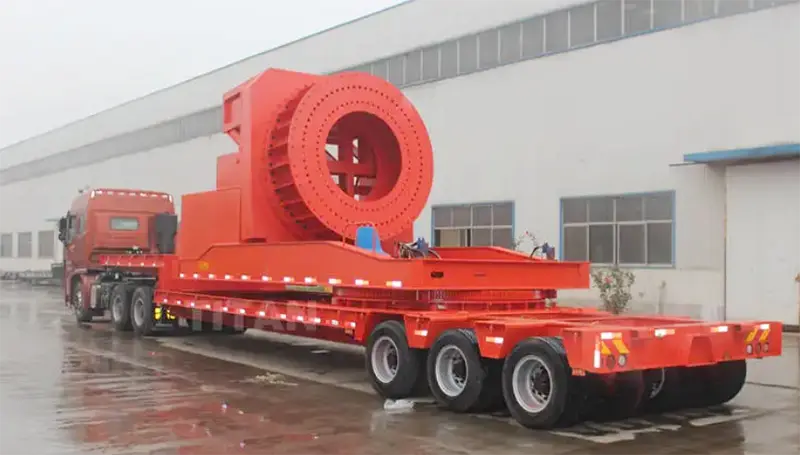

Products picture

Extendable Lowboy Trailer | Extendable Low Bed Trailer | Extendable Semi Trailer
