Home Trailer Extendable Lowboy Trailer

Extendable Semi Trailer

Size(mm)13000*3000*1760mm
Load Capacity30 - 60 Tons
MaterialSteel/Aluminum
ColorCustomized
ManufacturerSinotruk factory
Extendable Semi Trailer

Description

Extendable Semi Trailer Specification

Extendable Semi Trailer are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavily loaded goods. This kind of trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to pass through height limit roads.

About the main configuration:
The configuration will be designed by our engineers in accordance with clients’ requirements.
We choose reliable tires, such as Triangle, Linglong and other China’s famous brands, which are optional. We also adopt celebrated axle brands, such as Fuwa and BPW.

Extendable Semi Trailer Features:

1. Different length available.
2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
3. Line lowbed available.
4. Platform extendable, super low platform availale.
5. Twist lock available.
6. Fence available.



Extendable Semi Trailer Parameters

Axle

3 Axle

Brand

Sinotruk

Application

Heavy Duty Loading

Axle

3 Axles

Loading Capacity

30 – 60 Tons

L*W*H

13000*3000*1760mm

Ladder

Mechanical Spring/Hydraulic

Goose Neck Detachable

Available

Multi-Axles

Available

Steering Axles

Available

Tire Style

Covered or Uncovered

Main Beam

Material: Q345/T700

Height: 500mm

Upper Plate: 24mm

Middle Plate: 14mm

Lower Plate: 26mm

Platform Thickness

4mm

Axle

3/4 Axles *13/16/20 Ton
FUWA/BPW/Other

Tire

12R22.5/8.25r20 (12/16 Pieces)
Linglong/Triangle/Double-Coin/Other

Rim

9.00*22.5/6.5-20 (12/16 Pieces)
Steel/Aluminum

Leaf Spring

90mm*13mm*10/90mm*16mm*10Pcs

Suspension System:

Mechanical/Air Suspension

Ladder

Mechanical Spring/Hydraulic

King Pin

#50(2″)/#90(3.5″)
JOST/Other Brand,Changeable

Landing Gear

28 Tons Two Speed
JOST/Other Brand

Tool Box

Steel/Aluminum

Widened Parts

Available

Painting


Polyurethane combination painting

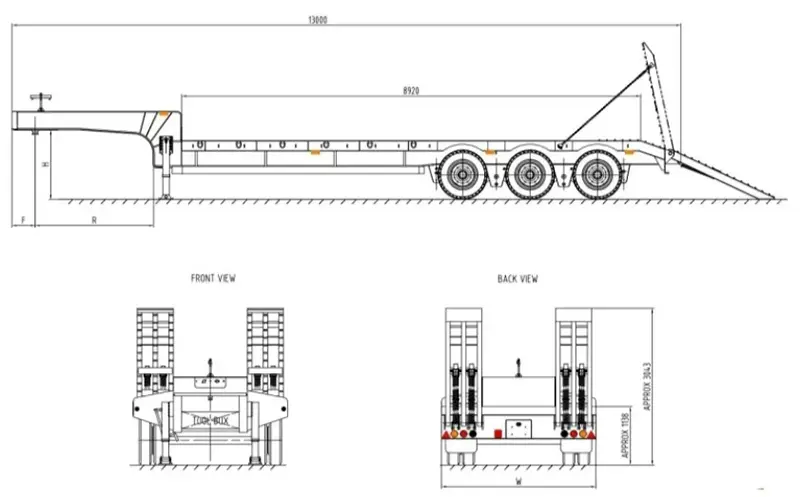

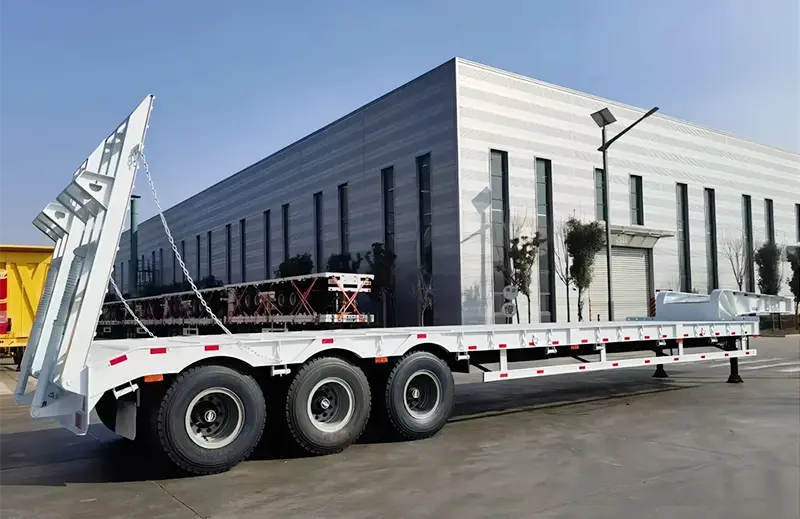

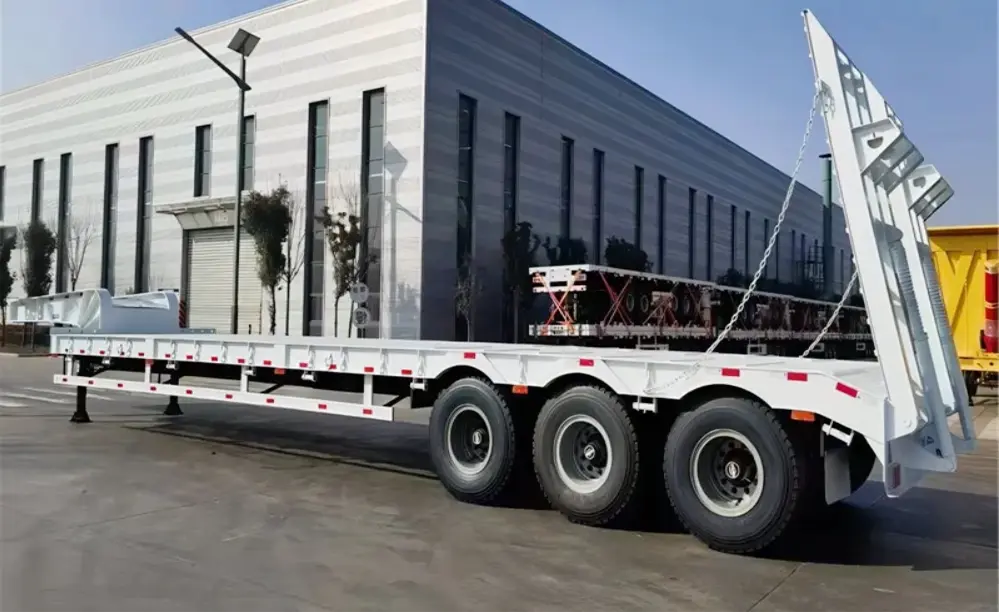

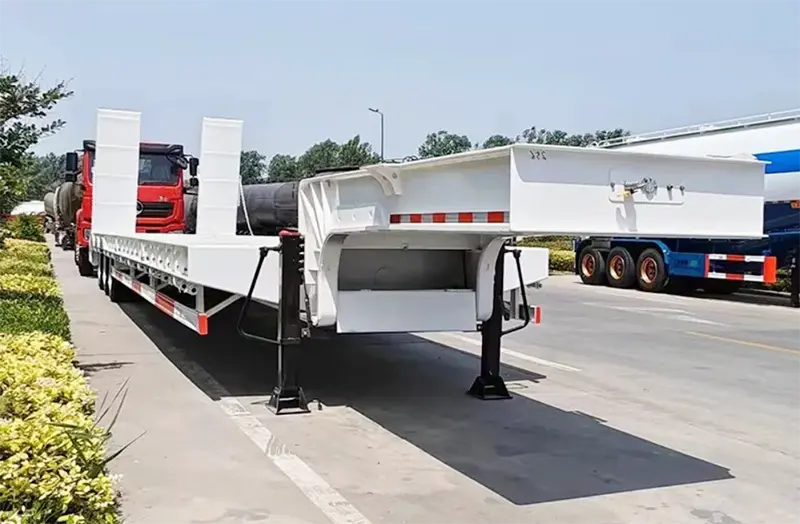

Products picture

Extendable Semi Trailer

Extendable Semi Trailer | Buy Extendable Trailer  |  extendable low bed trailer

Extendable Semi Trailer

Extendable Semi Trailer | Buy Extendable Trailer  |  extendable low bed trailer

Extendable Semi Trailer

Extendable Semi Trailer | Buy Extendable Trailer  |  extendable low bed trailer

Extendable Semi Trailer | Buy Extendable Trailer  |  extendable low bed trailer
