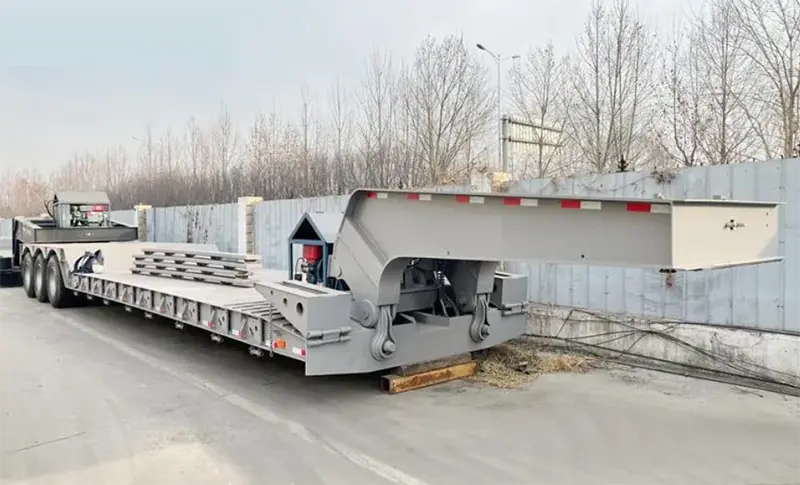

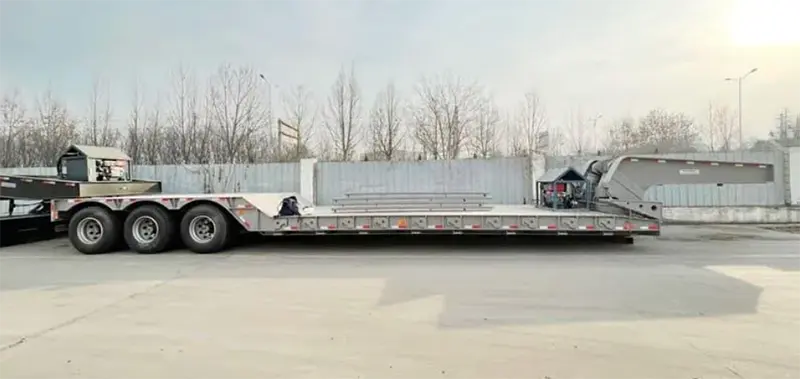

Extendable Tri Axle Trailer

Extendable Tri Axle Trailer Specification

Extendable Tri Axle Trailer can be loaded with 60ton, making it even more convenient to use. Its front-loading is easier for some medium-sized machines, such as excavators, while it has higher requirements for high-strength steel.

Extendable Tri Axle Trailer Application
Extendable Tri Axle Trailer are generally used to transport construction machinery and large equipment. Generally, many places are limited, especially on some bridges. The use of flatbed trailers cannot be transported, so people use lowbed semi trailers for transportation.

Extendable Tri Axle Trailer Parameters

Dimension:15500mm x3000mmx1200mm
Axle:3 axle
Loading capacity:60T
Tire: 15/80R 22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch
Tare weight:10T
Hydraulic cylinder:12KW diesel engine with hydraulic station
Main beam: Height:500mm;Width:230mm; Side beam: 250 1-beam 10/8/10; Material: HG60high-strength
steel.
Ramp: hydraulic type
Bottom Platform: 5mm thick, checkered plate
ABS: Optional
