Home Trailer Fence Semi Trailer

Fence Semi Trailer

Overall L*W*H12700x2700x3400mm
Loading capacity40T
Axle BrandFUWA Brand
Axles3 axles, 13T/16T ,FUWA/ BPW Brand
Traction Pin 90mm or 50mm
Landing gearJOST
Fence Semi Trailer

Description

Fence Semi Trailer Specification

Fence Semi Traileradopts advanced submerged arc welding technique to produce the fence trailer for sale, One-time main beam forming, there is no welding interface between middle, bottom and upper plate of main beam.

Fence Semi Trailer use 6 carlings to produce the frame of the fence cargo trailer for sale in Zimbabwe, which not only makes the trailer’s frame stronger, but also makes the platform never sag.



Fence Semi Trailer Parameters

Trailer Model fence semi trailer price
Overall Dimension(Lx W x H)(mm)  12700*2700*3400
Function transport merchandise, like juice packs, rice etc.
Thickness(mm)  Bottom: 3mm, Side: 1.5mm
Loading Weight( KG)  40000
Axle Brand FUWA 13 tons Axle, 3 axles
Suspension system  Standard Mechanical suspension
Steel Spring  10/10/10 leaf spring suspension
The material of Main beam  The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Tire Type and quantity  12.00R20   12units
Traction Pin  90mm or 50mm
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear   Standard brand 28ton, FUWA brand
Brake system Dual Line braking system
Container lock 12 pieces
Brake air chamber Six big double air chamber
Electrical system 1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard  According to customer’s requirement
Painting Silvery
Packing  Polish with wax before shipping

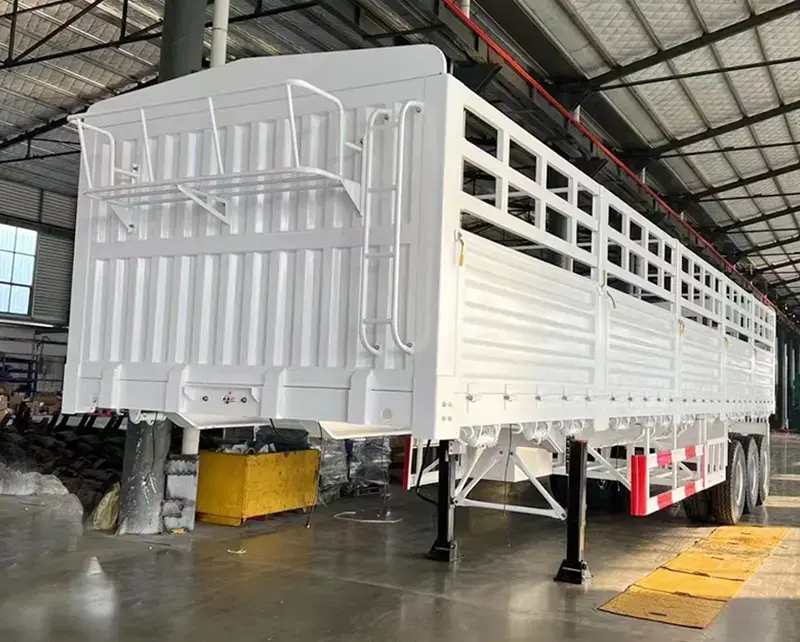

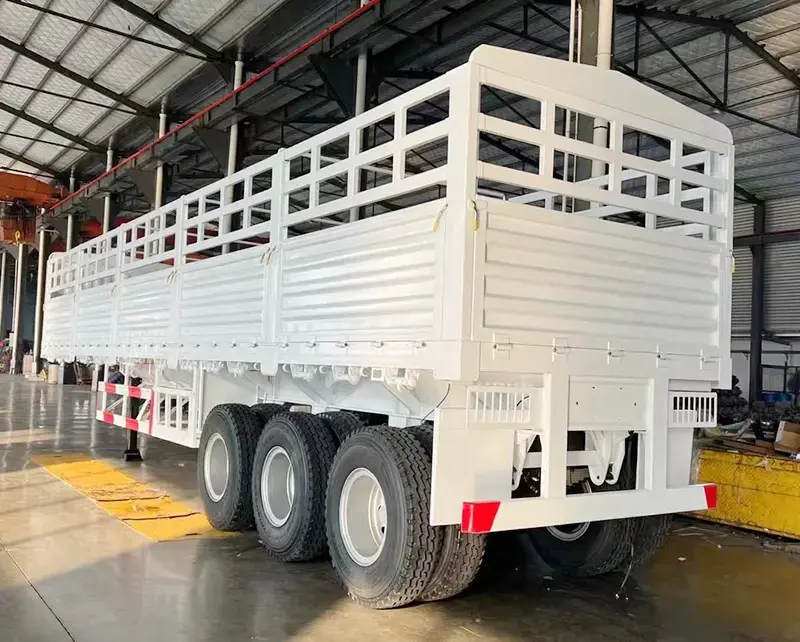

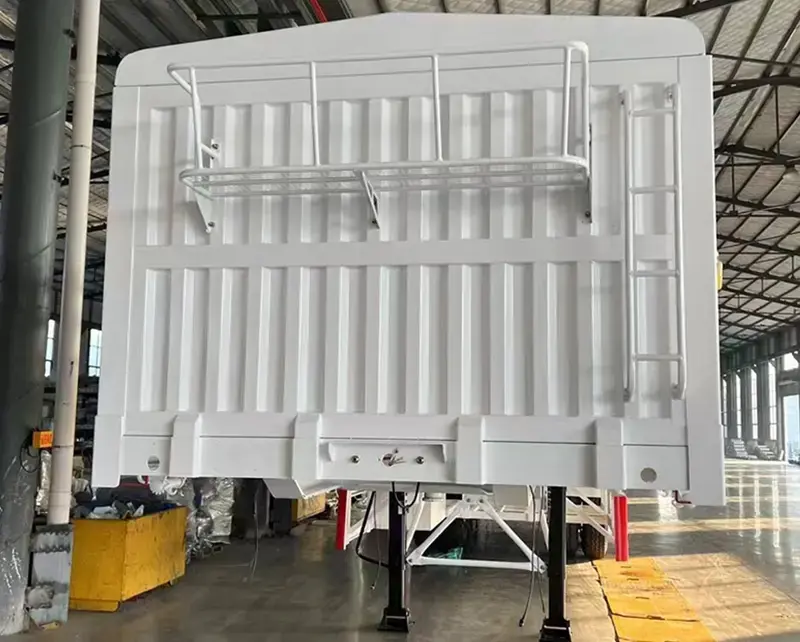

Products picture

Fence Semi Trailer

Fence Semi Trailer | Chinese trailers for sale | Fence Cargo Semi Trailer

Fence Semi Trailer

Fence Semi Trailer | Chinese trailers for sale | Fence Cargo Semi Trailer

Fence Semi Trailer

Fence Semi Trailer | Chinese trailers for sale | Fence Cargo Semi Trailer
