Flatbed Semi Trailer

Overall L*W*H12500*2500*1500mm
Payload60 tons
Landing gearJOST
Axles 13T/16/20T
Tire12.00R
ColorCustomized
Flatbed Semi Trailer

Description

Flatbed Semi Trailer Specification

Flatbed Semi Trailer for sale uses Q345 high-strength steel to produce the trailer. The tri axle flatbed trailer for sale middle plate of its main beam is 500 mm high and 8 mm thick. Flatbed Semi Trailer for sale upper plate is 14 mm thick and the bottom plate is 16 mm thick. And the gooseneck parts,Sinotruk trailers group use a double plate to reinforce it.

Flatbed Semi Trailer Parameters

Tare Weight:
 7.2T
Payload:
60T
Main beam:
500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness
Twist lock:
12 pcs
Side beam:
14# /16#/18#channel steel
Platform:
3mm thickness checkered plate
King pin:
2.0/3.5 inches (bolted or welded)
Axles:
13T, 3pcs
Suspensions:
 Mechanical suspension American type(Mechanical Suspension German Type)
 Leaf springs:
10 layers 90mm*13mm, 6 units;(12 layers 100mm*12mm, 6 units)
Rims:
 9.0-22.5, 12pcs
Tires:
315/80R22.5, 12pcs
Landing gear:
 JOST 28T, Linkage Outrigger
 Tool box:
 1 unit
Accessories:
1 unit tool box, 1 pc spare tire carrier, all set of standard tools.
Painting:
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Brake system:
WABCO 6 relays valve; T30/30+T30 air chambers, 40L air tanks
Spare tire carrier:
1pc
Color
Optional, to be determined by customer

Products picture

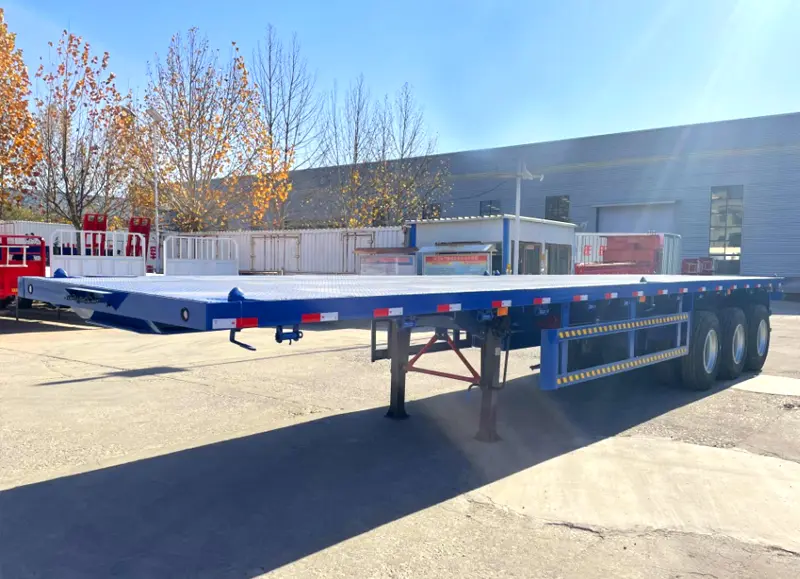

flatbed semi trailer-3

Flatbed Semi Trailer | Aluminum Flatbed Trailer | 3 Axle Flatbed Trailers For Sale

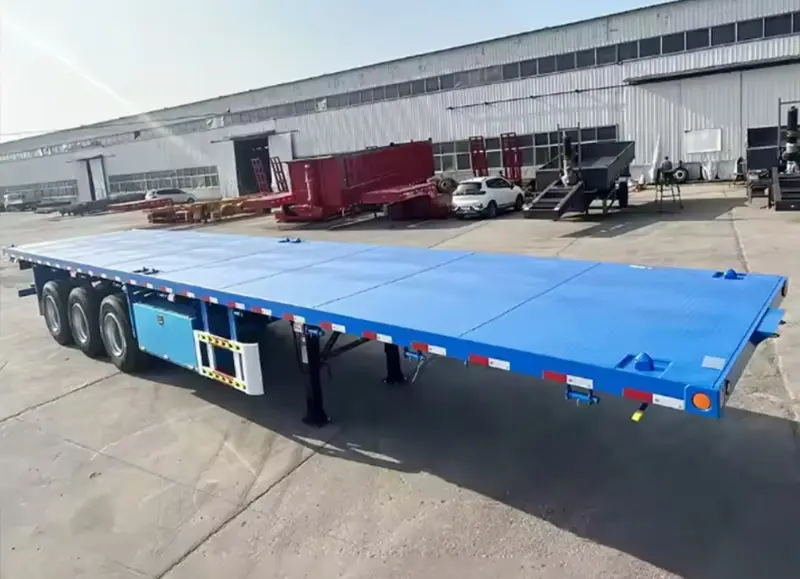

flatbed semi trailer-4

Flatbed Semi Trailer | Aluminum Flatbed Trailer | 3 Axle Flatbed Trailers For Sale

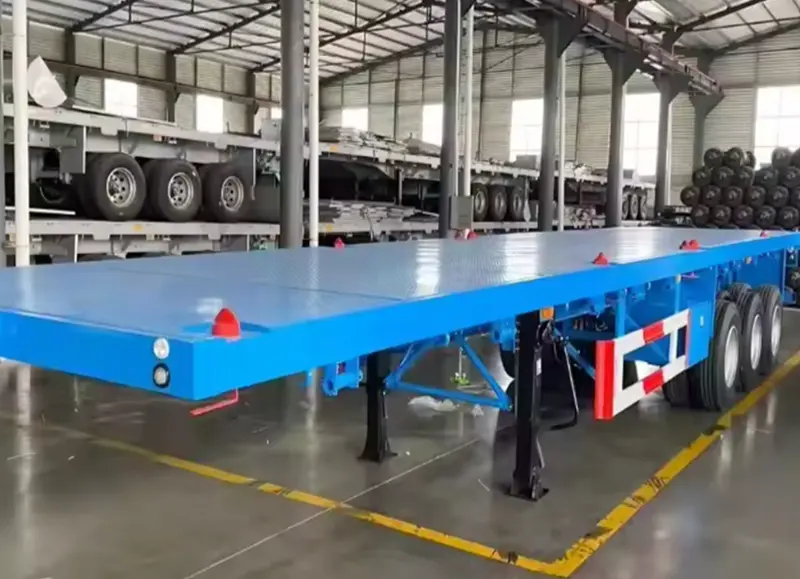

flatbed semi trailer-5

Flatbed Semi Trailer | Aluminum Flatbed Trailer | 3 Axle Flatbed Trailers For Sale

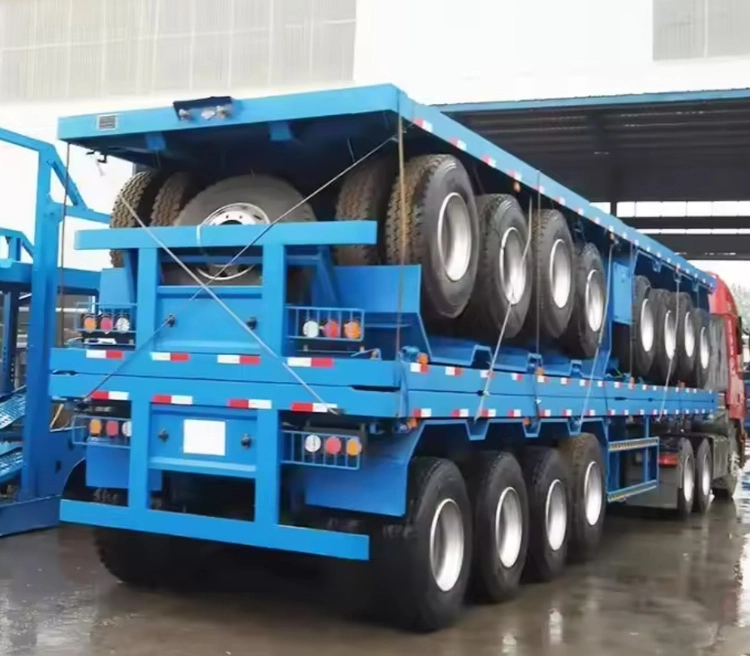

flatbed semi trailer-2

Flatbed Semi Trailer | Aluminum Flatbed Trailer | 3 Axle Flatbed Trailers For Sale

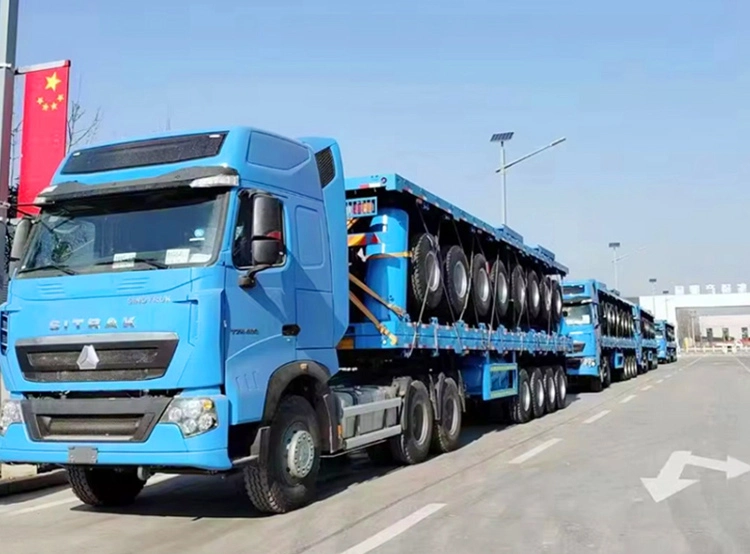

flatbed semi trailer-1

Flatbed Semi Trailer | Aluminum Flatbed Trailer | 3 Axle Flatbed Trailers For Sale
