Home Trailer Fuel Tank Trailer

Fuel Tank With Trailer

Overall L*W*H12500*2500* 1550 mm
Tare weight40000L-55000L
Load Capacity30t~ 60t
Axle13t/16t
Tire Number12-24
ColorCustomized
Fuel Tank With Trailer

Description

Fuel Tank With Trailer Specification

1. Fuel Tank With Trailer is all made of food-grade stainless steel, and the best hygienic level is achieved by automatic welding and surprise polishing.
2. Polyurethane overall thermal insulation layer, ensure 24 hours is greater than or equal to 2 ºC temperature rise.
3. Design multiple compartments or single compartment according to requirements.
4. Reliable safe breathing valve prevents dust entering, reduces material loss and improves safety of the whole tank.
5. The chassis adopts the frame structure, and the frame is adopted with T700 high strength steel plate, which is about 19 percent lighter than the ordinary frame weight. It is that the vehicle is more fuel-efficient and economical to operate under the same load.

Sinotruk trailer are manufacturer.
Fuel Tank With Trailer model we show is standard product; meanwhile, all our trailers can be customized according to your unique request.

Mineral Oil Tank Trailers Parameters

Trailer Model

Fuel Tank With Trailer 45cbm 40cbm oil tank trailer price

Overall Dimension

 11900x2500x3800(Lx W x H)(mm)

Function

transport Fuel, Oil, Diesel

Thickness(mm)

Tank body: Q235/5mm  carbon steel

End plate: Q235/6mm carbon steel

Volume

30000L-60000L

Axle Brand

FUWA 13Ton Axle, top brand

Axle Number

Three

Compartment

3-9compartments

Manhole cover

500mm manhole cover. 3 sets with3 breath valve.

Ladder

Top ladder with handrail, side ladder

Discharge valve

4”disc valve

Discharge pipe

4”seamless steel tube

Suspension system

Leaf spring suspension

Bottom valve quantity

3 units

Steel Spring

10/10/10 leaf spring suspension

90mm width, 13mm thickness

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Tire Type and quantity

12R22.5  Taitong top brand  12units

Traction Pin

50mm/90mm, jost brand

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

Standard brand 28ton external, 2 speed

Brake system

Dual Line braking system

Brake air chamber

Six big double air chambers

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer’s requirement

Painting

According customer requirement

Packing

Polish with wax before shipping

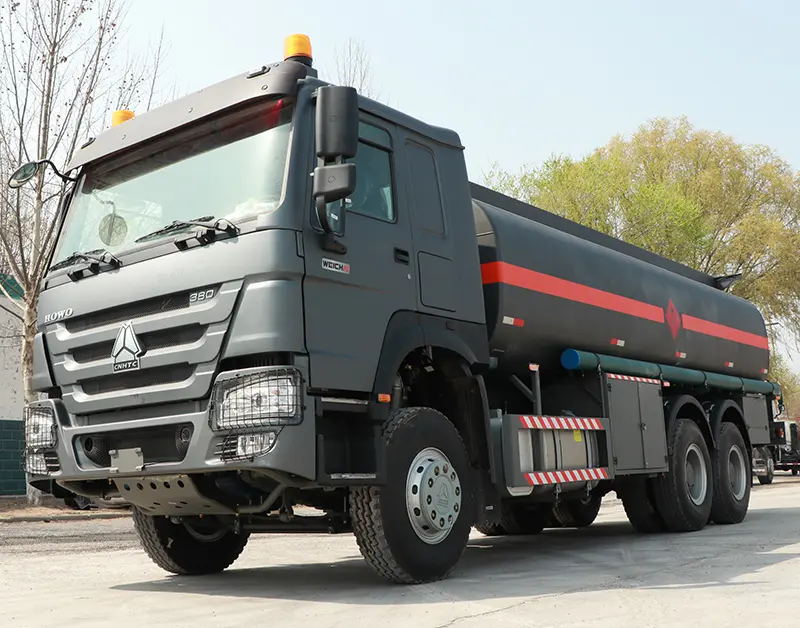

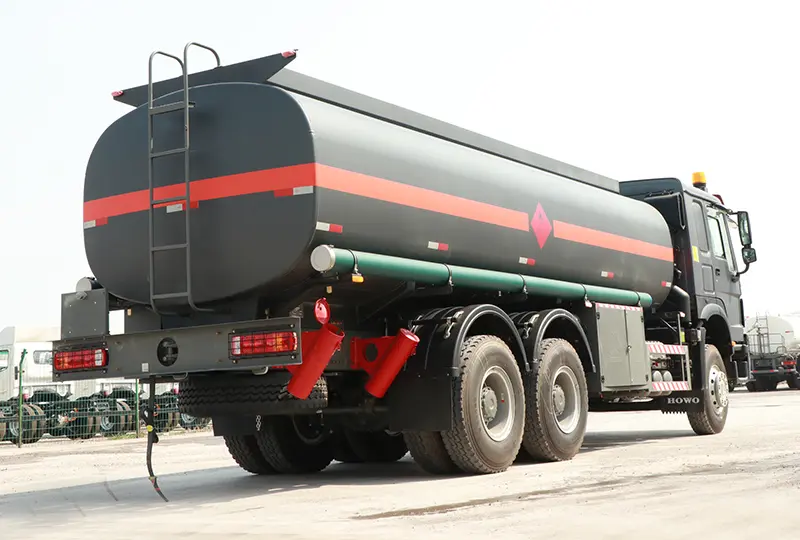

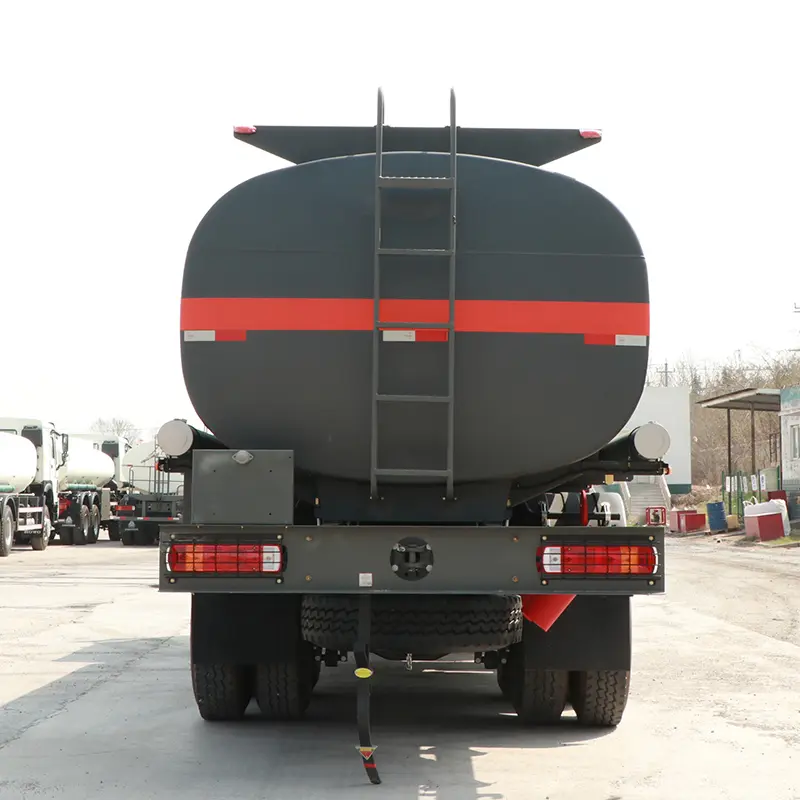

Products picture

Fuel Tank With Trailer

Fuel Tank With Trailer | fuel tanker trailer for sale | fuel tank trailer

Fuel Tank With Trailer

Fuel Tank With Trailer | fuel tanker trailer for sale | fuel tank trailer

Fuel Tank With Trailer

Fuel Tank With Trailer | fuel tanker trailer for sale | fuel tank trailer
