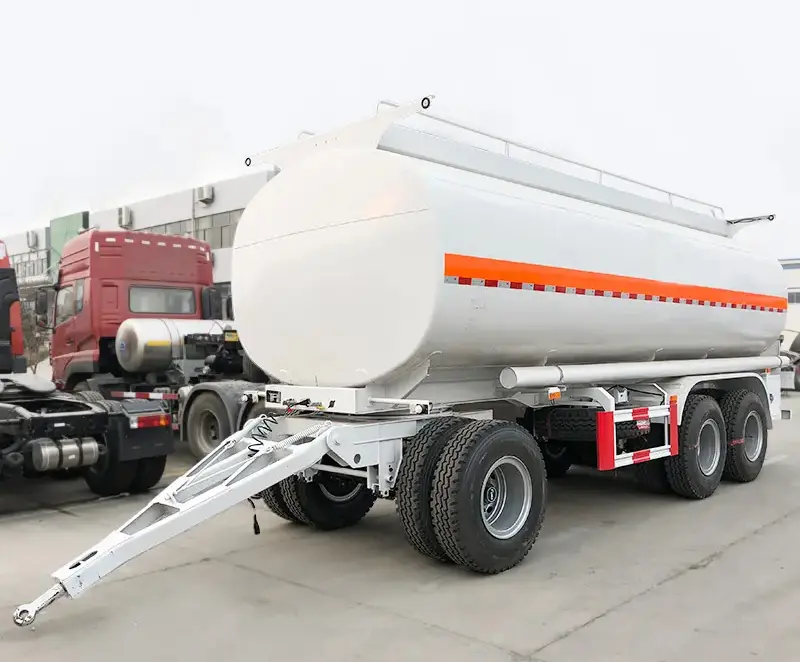

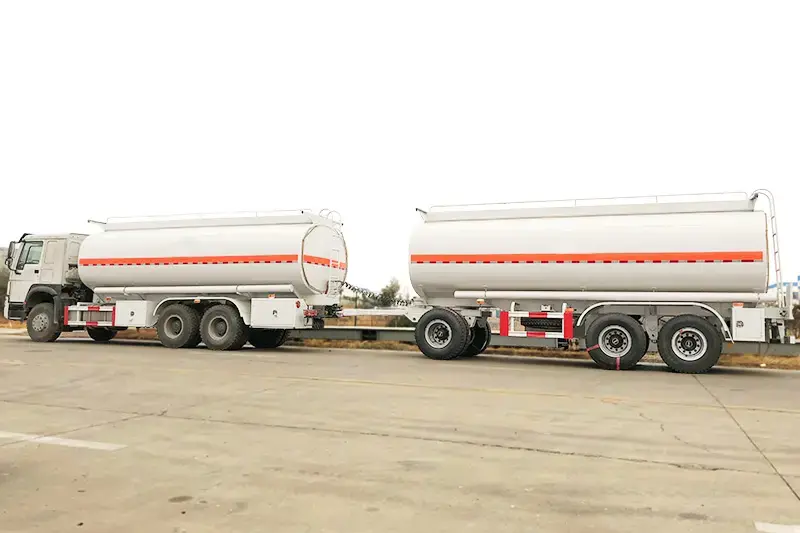

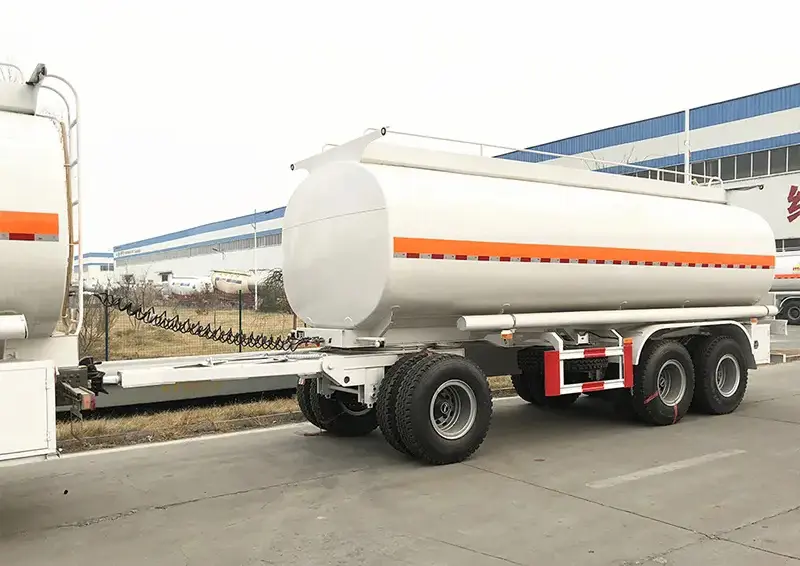

Fuel Tanker Full Drawbar Trailer

Fuel Tanker Full Drawbar Trailer  Specification

Fuel Tanker Full Drawbar Trailer Major parts and components of the trailer are processed by advanced equipment. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.

To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.Our Fuel Tanker Full Drawbar Trailer adopt High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety. High strength and impact resistance new type suspension is adopted with patented rod connecting design.

Fuel Tanker Full Drawbar Trailer guarantees performance in rough road condition and longer service life.and with Large capacity water-proof detachable tool box. The finished chassis offers bending and deforming resistance with proper rigidity and strength. Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

Fuel Tanker Full Drawbar Trailer Parameters:

Dimension: 9500mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 20000liters
Application: transport Fuel, Oil, Diesel
Container lock: 4units

Fuel Tanker Full Drawbar Trailer Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments:1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy APl manhole cover 500mm (diameter)
Discharge valve: Diameter is3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test:Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPWother
Landing Gear: JOST brand
King Pin:JOSTbrand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System:WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
