Overall L*W*H:12500x2500x3200mm
Loading capacity:60T

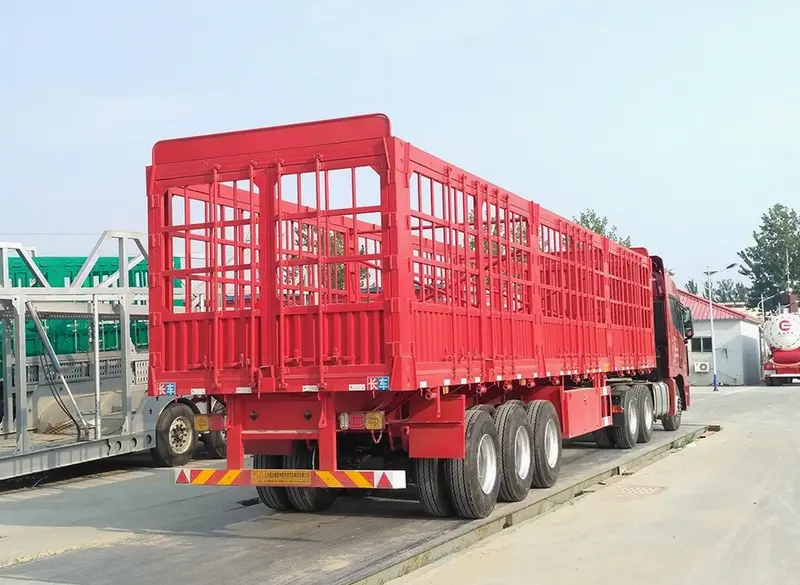

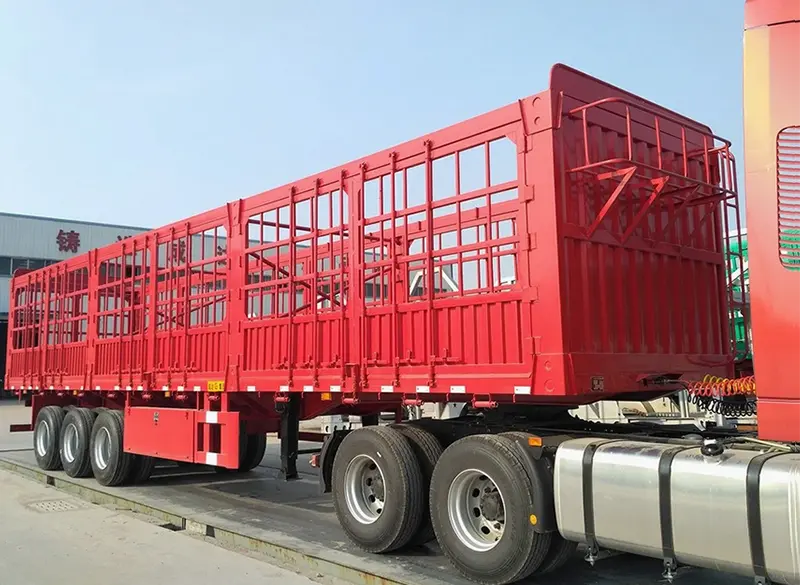

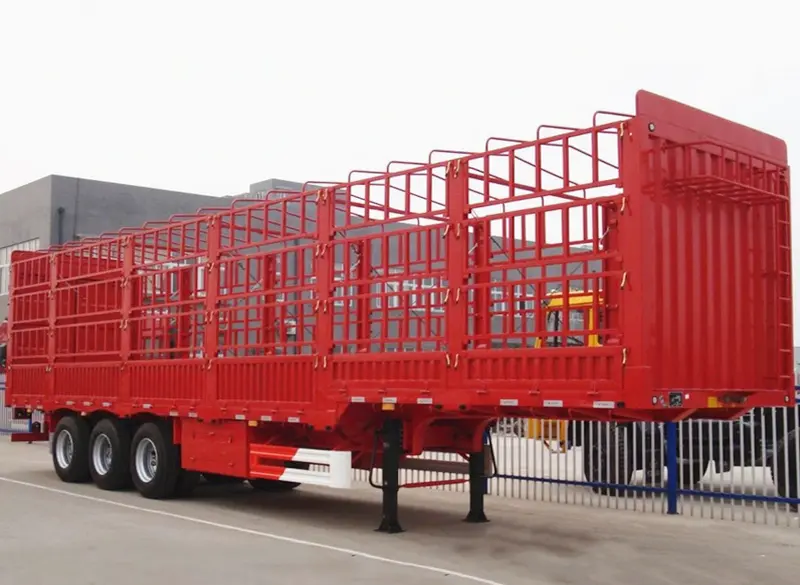

Ground Load Cattle Trailer Specification
Ground Load Cattle Trailer adopts advanced submerged arc welding technique to produce the fence semi trailer, there is no welding interface between middle, bottom and upper plate of the main beam. Ground Load Cattle Trailer uses high-density inclined support to support the fence cargo semi trailer beams, every beam has its own support. And the distance between every two inclined support is only 50 cm.
Our company is a R&D and production enterprise. Our main products include 10m, 11m and 13m low-bed semi-trailers, various types of dangerous goods skeleton semi-trailers, 9-13m warehouse fences, railings, box-type ordinary semi-trailers, 11m and 13m side-turning dump semi-trailers, 20ft-40ft-45ft-48ft skeleton container transport semi-trailers, rear dump dump semi-trailers, special low-bed semi-trailers, and various export semi-trailers. They are exported to overseas Africa, Southeast Asia, Central Asia and other regions, and have won the satisfaction and trust of customers.
Warm reminder: All products in this store are customized products.
Ground Load Cattle Trailer Parameters
Type | Ground Load Cattle Trailer |
Function | 2×20 ft container or 1x40ft container or others goods |
Overall dimensios | 12500x2500x1600 mm |
Loading weight | 40,000 – 60,000 kg |
Side wall and Fence | 600mm+600mm, size is optional |
Container twist lock | 12 pcs |
Main beam |
Q345B steel The height of the beam is 50mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm |
Side beam | 16 U shaped steel or I shaped steel |
Chassis | |
Axle brand | 13 ton |
Axle number | 3 |
Landing gear | Standard 28 ton |
Suspension system | Mechanical suspension |
Steel spring | 10/10/10 |
Tire | 12.00R22.5 tubeless tire |
Tire quantity | 12 |
Frame | |
Platform thickness | 3 mm diamond plate |
Accessories | |
Brake | 6 big chamber brake system, without ABS |
Tool box | 1 unit |
Spare wheel carrier | 2 units |
Side marker lamp | LED type |
Voltage | 24V |
Receptacle | 7 ways |
