Overall L*W*H:11700*2500*1700mm
Payload:45 tons
Heavy Haul Trailer For Sale Specification
The main beam of Heavy Haul Trailer For Sale is made of Q460C steel material, which is much stronger than Q345. The Heavy Haul Trailer For Sale is using the heavy duty side beam, the height of the side beam is 300mm,which can save repair costs & long-time service.

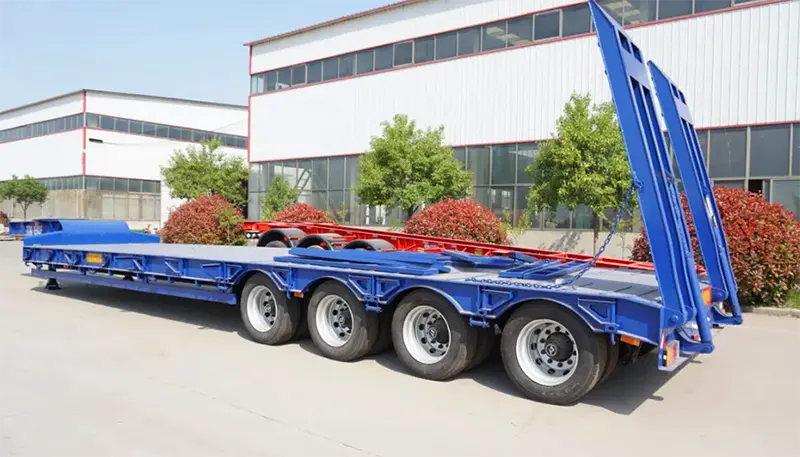

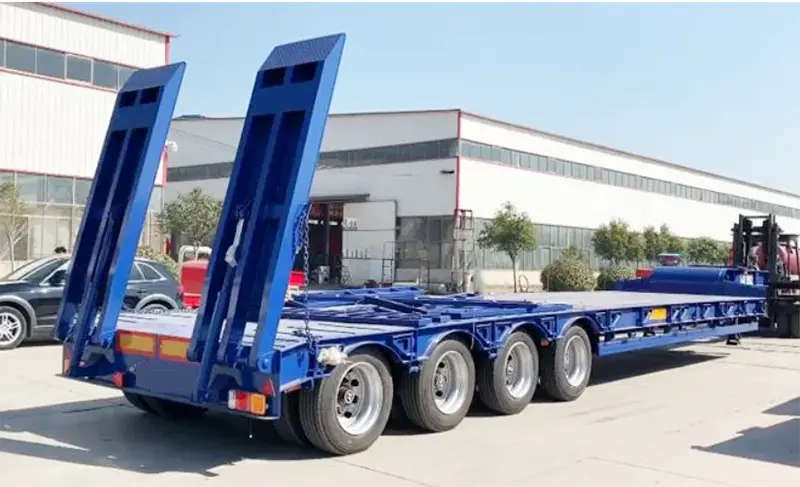

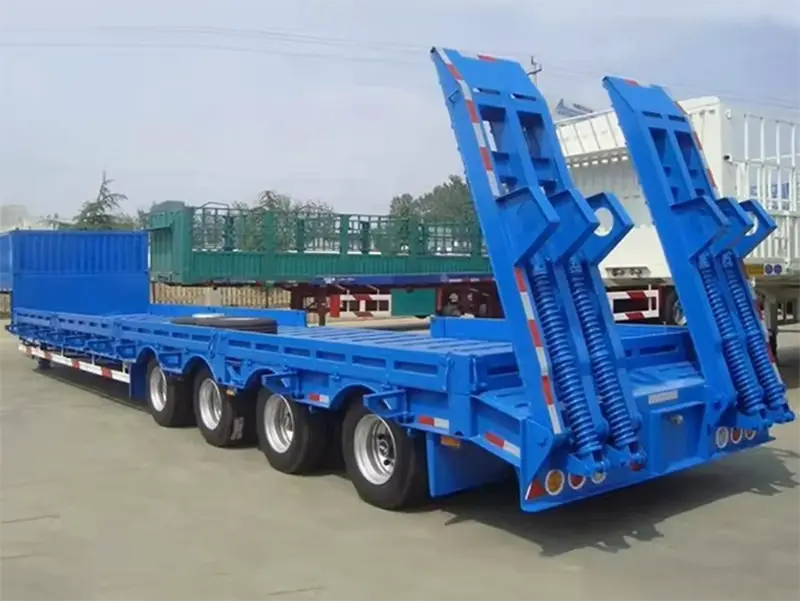

The ramp of 100 ton low loader trailer is using the double spring, and the ramp is using the HG60 square steel, all of these ensure the stability and firmness of the ramp.
Heavy Haul Trailer For Sale Parameters
terms |
Low bed semi trailer |
Loading Capacity |
60-80 tons |
Axle |
4 pieces, 13T FUWA/BPW axle |
Tyre |
16 pieces, 11.00R20 |
Dimensions(LxWxH) |
13000 -17000mm x 3000 x 1750mm |
Tare weight |
10 tons to 12 tons |
Axle spacing |
1310mm |
Rims |
8.5-20, 9.0-20 |
Suspension System |
Leaf spring suspension / air suspension |
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
Main Beam |
Height 500mm Q345 carbon steel |
Chassis |
upper 20mm, lower 20mm. Mid web 12mm |
Rear Loading Ramps |
2 nos, 720 mm width, spring loaded & manually operated with safety chain |
Kingpin |
2′ or 3.5′ interchangeable,JOST brand |
Landing Gear |
28 Tons , Two speed manual operation |
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
Tool Box |
One tool box with a set of standard trailer tools |
Spare Tyre Carrier |
One piece or two pieces |
