Home Trailer Dump Semi Trailer

Howo Trailer Truck

Overall L*W*H9700*2500*3600mm
Payload60 tons, customized
Cabinet9*2.3*2m
Axles3-6 Axle, 13T
Landing gearJOST
SuspensionMechanical Suspension
Howo Trailer Truck

Description

Howo Trailer Truck Specification

Howo trailer truck with automatic tipping device in the load area
Howo Trailer Truck end dump semi trailer is a special type of semi-trailer equipped with an automatic tipping device at the load area, which is suitable for the transport of bulk and scattered cargoes such as coal, ore, building materials, etc. The Chinese Sinotruk Howo Semi Trailer Truck main feature of this type of semi-trailer is that its load area can be tipped automatically, which facilitates quick unloading of cargoes. Chinese Sinotruk Howo Trailer Truck main feature of this kind of semi-trailer is that its loading part can be dumped automatically, which is convenient for unloading the goods quickly.

Structural characteristics of Howo Trailer Truck end dump semi trailer.
Howo Trailer Truck end dump semi trailer usually consists of the following parts:

Loading part: equipped with automatic tipping device, which can be controlled by hydraulic system.
Hydraulic system: provides power to realise the automatic dumping function through hydraulic lifting device.
Connection device: connected with the tractor, transmits horizontal and vertical force to ensure the stability and safety in the transport process.

Use of Howo Trailer Truck end dump semi trailer
Howo Trailer Truck end dump semi trailer  is widely used in the transport of coal, ore, building materials and other bulk and scattered goods. Sinotruk Howo Trailer Truck end dump semi trailer feature makes the unloading of goods more efficient, especially suitable for scenes that require frequent unloading, such as harbours and mines.

Difference between Sinotruk  Howo Trailer Truck end dump semi trailer and other types of china sinotruk howo trailer.

The main difference between Sinotruk  Howo Trailer Truck end dump semi trailer and other types of semi-trailers truck (e.g., Howo semi flatbed trailer truck , Howo bulk cement tank semi trailer truck , Howo fuel tank trailer truck , Howo semi trailer dry van Truck ,Howo semi trailer lowboy truck ,Howo refrigerated tractor trailer ,Howo extendable lowboy trailer ) lies in the automatic tipping function of the loaded part. Other types of Howo trailer Truck have their own specific uses and structural characteristics, for example:

Chinese​ Sinotruk  Howo lowboy semi trailer: suitable for medium and long-distance cargo transport.
Sinotruk Howo Fence Semi Trailer: mainly used for the transport of agricultural and sideline products and other light bubble goods.
Sinotruk Howo Fuel tank with traile: used for transporting liquids, bulk materials and bulk cement.
Sinotruk Howo Container-trailer​: used for the transport of household appliances, light textile goods, construction materials and figure plate goods.



Howo Trailer Truck Parameters

Sinotruk Howo Trailer Truck Vehicle Specifications
Sinotruk Howo Trailer Truck Overall vehicle outline (box size)
Manufacturers
long
9700MM
Width
2500MM
high
3600MM
Chinese Sinotruk Howo Semi Trailer Truck Stringer specifications
high
500MM
Upper wing panel
14MM/140MM
lower wing
16MM/140MM
web
Web 10MM
Subframe
120/1205# square tube
Side beam
80/140 5# square tube
side panel
5#
Column
Bending parts
base plate
6# pattern board
toolbox
1.5/0.6/0.55 Iron door 2# living tool box
Spare tire rack
1
Air tank
2 Black Iron – 30 Liters
Oil cylinder
Domestic 196 cylinder
lamps
LED lamps (3 pcs for side lights and 2 pcs for tail lights)
traction pin
90# traction pin
Outrigger
28T external outriggers
Synchronized valve
Sinotruk Factory in china supplied
leaf spring
13# thick 10 standard leaf springs 6 sets
axle
13T Zhengyang axle 3 pieces
tire
Triangle 12R22.5 tires 12 pieces
steel ring
12 matching steel rings
suspension
Formal standard 5#
Braking System
T30/30 double air chamber 6 pieces
power supply
24V seven-hole plug
curb weight
12T
Rated load capacity
60T
cabinet
9*2.3*2m

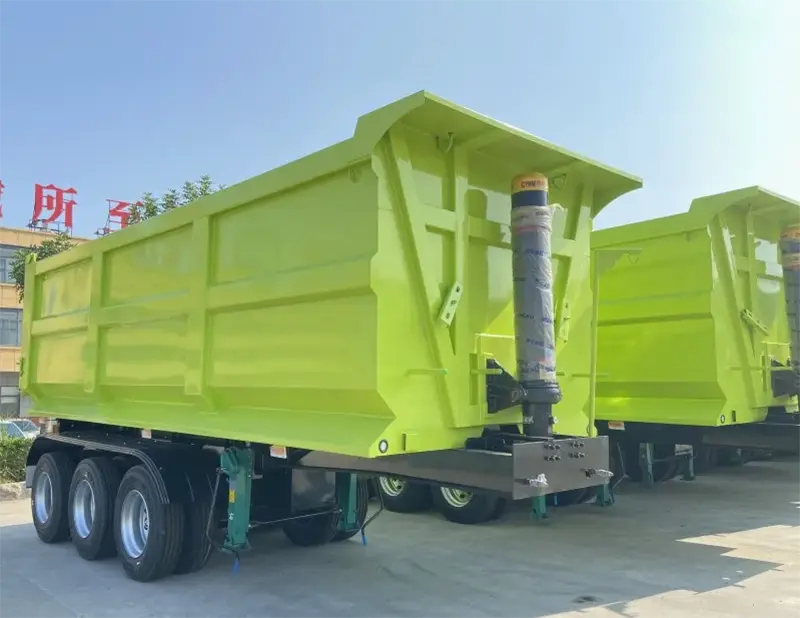

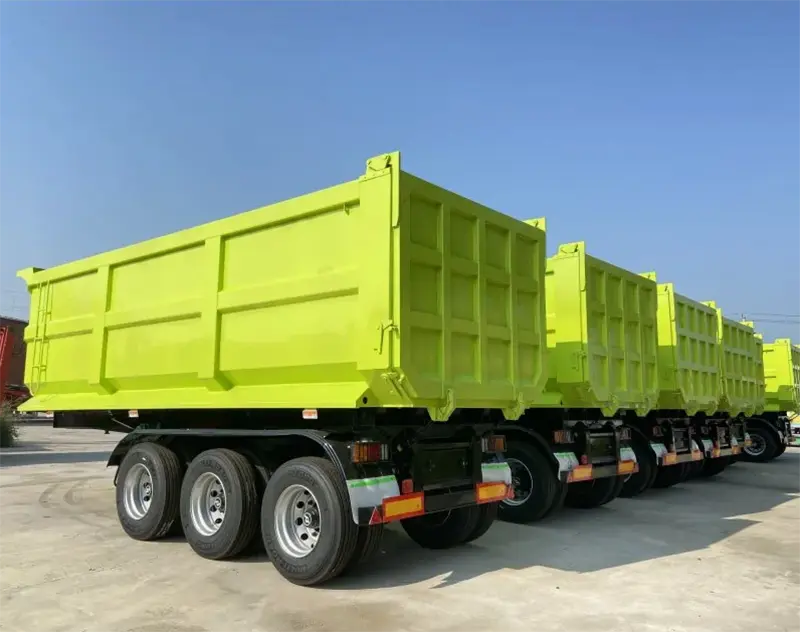

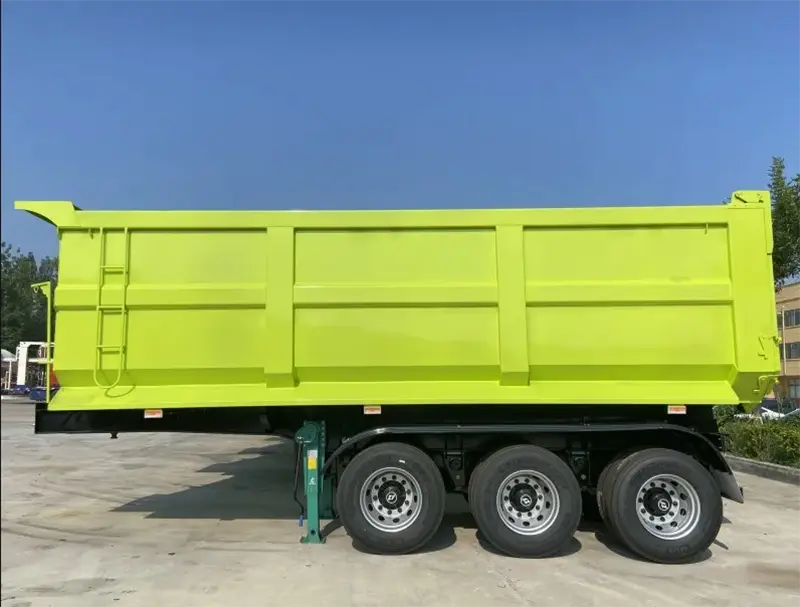

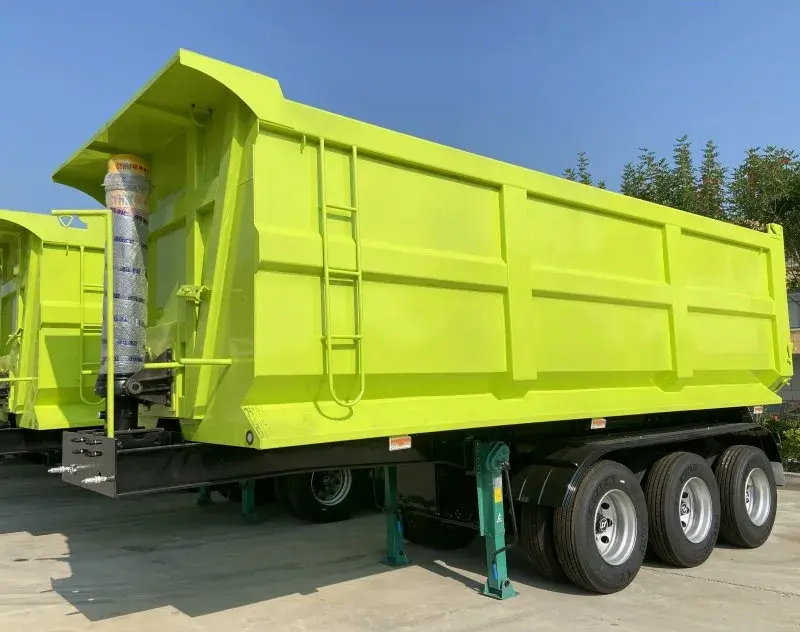

Products picture

Howo Trailer Truck

Howo Trailer Truck | howo semi truck | sinotruk howo trailer |  china semi trailer | trailers made in china

Howo Trailer Truck

Howo Trailer Truck | howo semi truck | sinotruk howo trailer |  china semi trailer | trailers made in china

Howo Trailer Truck

Howo Trailer Truck | howo semi truck | sinotruk howo trailer |  china semi trailer | trailers made in china

Howo Trailer Truck

Howo Trailer Truck | howo semi truck | sinotruk howo trailer |  china semi trailer | trailers made in china
