Overall L*W*H:12500x2500x1600mm+600mm
Loading capacity:60T
Livestock Trailer Semi Specification
Livestock Trailer Semi is generally used to transport bulk cargo. It is mainly used for long-distance transportation. Generally, Platform trailer can transport 30-80 tons.If it is a large amount of transportation or different needs, we can customize it, or platform trailer some deformed vehicles.
Livestock Trailer Semi frame adopts a space frame structure with longitudinal beams welded and transverse beams running through as a whole. It can take into account the strength, rigidity and toughness of the frame, with strong carrying capacity and no deformation.
.The lightweight design not only reduces tire wear, but also reduces truck fuel consumption. Under the same road conditions and carrying capacity, the fuel consumption of 100 kilometers can be reduced by more than 1.3 liters.
.We use imported famous brand brake pads and implant wear alarm device. Effectively guarantee the braking performance of the fence cargo trailer in the running process.
.Fence Cargo Trailer with Hydraulic Lift Gate uses air suspension. It is able to drive smoothly even under poor road conditions, which is more suitable for transporting livestock.
Livestock Trailer Semi Parameters
Trailer Model | Livestock Trailer Semi | |
Payload | 45,000kg | |
Dimension | Loading Length | 12,500mm |
Loading Width | 2,520mm | |
height | 1600mm | |

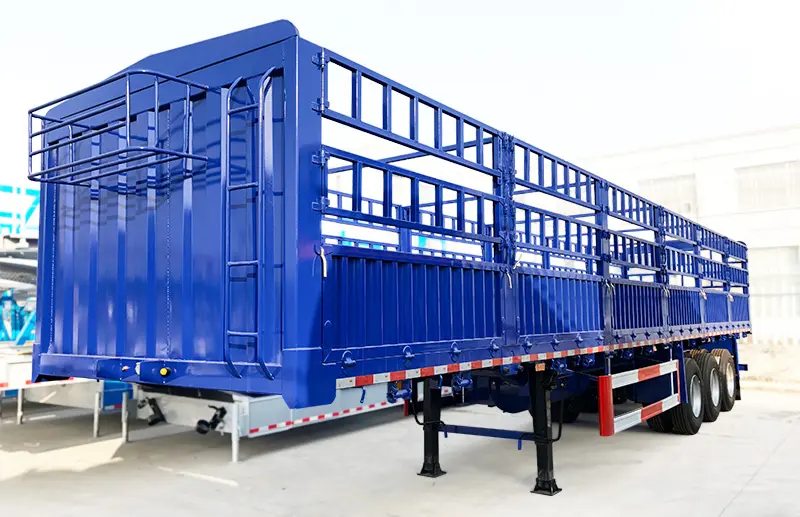

Front wall | Basket& ladder |
Basket at the top,access ladder fixed at the side for easy access to basket |

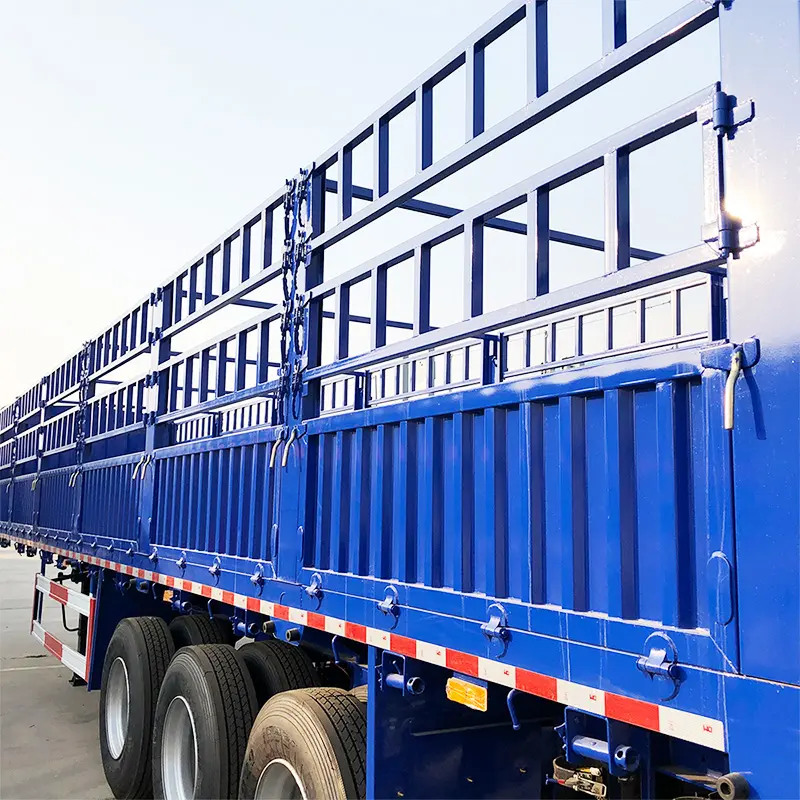

Side walls |
Units: 5 on each side Total height:1200mm,thereof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension. |
|
Each side wall foldable and detachable with 3 hinges and 4 quick-locks. Each side 4 reinforced middlestanchions, removable. Chain between Each sidewall pair. | ||
Running gear/Spring | Leaf spring suspension | |
13ton axle, Fuwa brand | ||
Wheels and Tyres | 1200R20, 12pcs, Triangle brand | |
Thickness(mm) | Bottom: 3mm, Side: 2mm | |
Wheelbase(mm) | 6260+1310+1310 | |
The material of Main beam |
The height of the beam is 450/500 mm, upper plate is 14mm, down plate is 16mm,middle plate is 8mm. Q345B manganese plates, automatic submerged arc welded |
|
Side Beam | 16mm channel steel ( Material is Q235steel ). | |
Platform plate | 3mm chequered steel plate | |
Traction Pin | 2” or 3.5”, additional second mounting position | |
Rear Wall |
Height:1200mm therof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension,4+2 quick-locks, rear wall foldable and detachable. upper skeleton opengs to the right side. |
|
Securing winches and hooks |
On right side:2 winches and 3 hooks On left side:3 winches and 2 hooks |
|
Landing Gear | standard 28ton, single speed one | |
Brake system |
Dual Line braking system, none ABS. Air vessle volume 80litre. Parking brake as spring brake. |
|
Brake air chamber | Two double and two single chamber | |
Side Guard | Steel sheet mudguards with rubber mud flaps | |
Standard accessories | 1 portable ladder fixed under the semi trailer |
