Home Trailer Lowboy Semi Trailer

Low Bed Trailer

Overall L*W*H13000*3000*1750mm
Payload40-60 tons
Tare weight10-12 tons
Axles 3,12 pieces, 10.00R20
Tire12R22.5
ColorCustomized
Low Bed Trailer

Description

Low Bed Trailer Specification

Low Bed Trailer is mainly composed of ladders, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and lower side protection device, safety accessories and signs, etc. , suitable for the transportation of large construction machinery or large machinery.

The side beam of Sinotruk trailers Low Bed Trailer adopts “H” shape design and is welded with HG 60 steel, Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.



Low Bed Trailer Parameters

terms

Low Bed Trailer

Loading Capacity

40-60 tons

Axle

3 pieces, 13T FUWA/BPW axle

Tyre

12 pieces, 10.00R20

Dimensions(LxWxH)

13000 -17000mm x 3000 x 1750mm

Tare weight

10 tons to 12 tons

Axle spacing

1310mm

Rims

8.5-20, 9.0-20

Suspension System

Leaf spring suspension / air suspension

Brake System

Dual line pneumatic brake system with WABCO emergency relay valve

Main Beam

Height 500mm Q345 carbon steel

Chassis

upper 20mm, lower 20mm. Mid web 12mm

Rear Loading Ramps

2 nos, 720 mm width, spring loaded & manually operated with safety chain

Kingpin

2′ or 3.5′ interchangeable,JOST brand

Landing Gear

28 Tons , Two speed manual operation

Electrical System

1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard

Lights and Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Painting

Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available

Tool Box

One tool box with a set of standard trailer tools

Spare Tyre Carrier

One piece or two pieces

Products picture

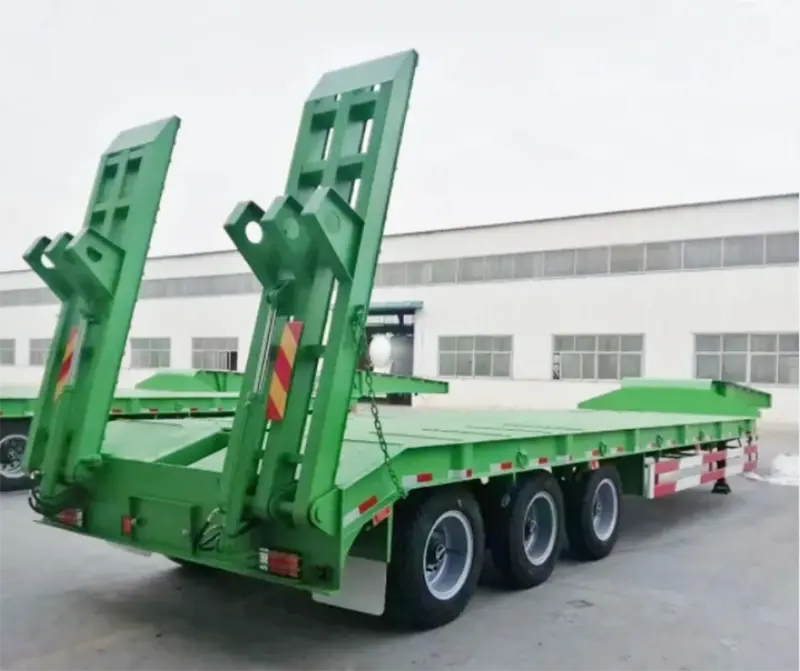

low bed trailer-1

Low Bed Trailer | low bed trailer uae | 40 feet low bed trailer | lowbed trailer for sale

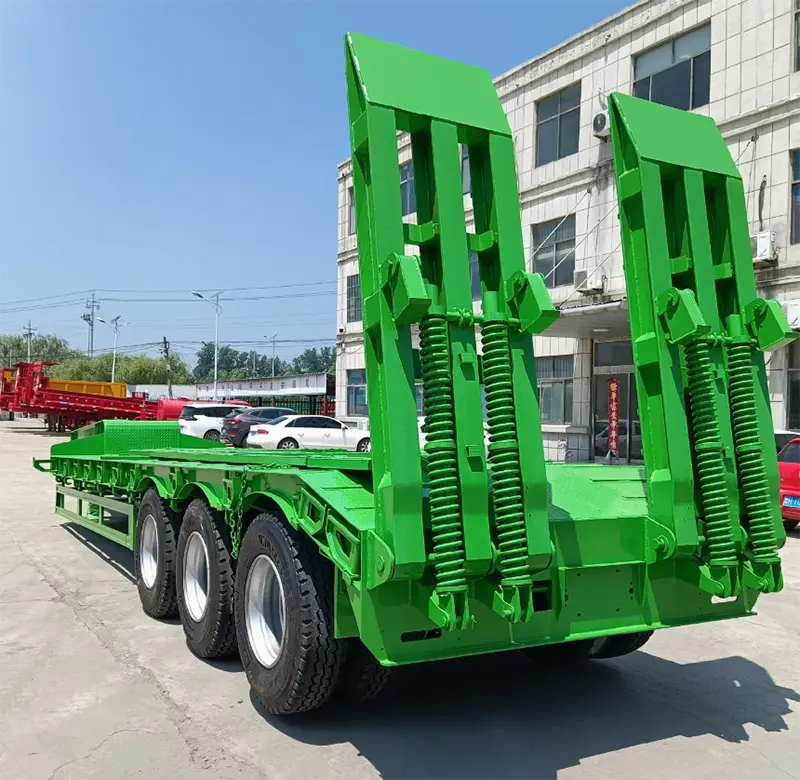

low bed trailer-2

Low Bed Trailer | low bed trailer uae | 40 feet low bed trailer | lowbed trailer for sale

Low Bed Trailer | low bed trailer uae | 40 feet low bed trailer | lowbed trailer for sale
