Oil Tank Semi Trailer

Overall L*W*H11900*2500*3900 mm
Tare weight40000L-55000L
Load Capacity30t~ 60t
Axle13t/16t
Tire Number12-24
ColorCustomized
Oil Tank Semi Trailer

Description

Oil Tank Semi Trailer Specification

Our Oil Tank Semi Trailer chooses Q345B carbon high-strength steel material, which is welded by an automatic submerged arc process. According to customers’ requirements, we can customize different volumes and compartments.

The volume of Oil Tank Semi Trailer varies from 10 cubic meters to 70 cubic meters, we can manufacture them according to your needs. The suspension can be air suspension, mechanical suspension (leaf spring suspension), bogie suspension, etc. The gasoline transport truck trailer inside can be separate or a single compartment according to your needs.

The best quality oil trailers can realize the mechanization of loading, unloading, transportation, and storage, which saves labor, packaging materials, and transportation costs. We can provide Fuwa/BPW axles of different tonnages according to your needs.


Oil Tank Semi Trailer Parameters

Use Truck Trailer
Material Steel
Certificates ISO CCC BV WMI
Dimensions 11900*2500*3900
Max Payload 60Ton
Place of Origin China
Brand Name Sinotruk
Product name Oil Tank Semi Trailer
Function Transport Fuel
Axle 13 Ton Fuwa Brand
Suspension Mechanical Suspension
Tire 11.00r20 12r22.5 315 385
Landing Gear Standard 28Ton
Tank material Carbon Steel / Aluminum/Stainless Steel
King pin 2″(50mm)or3.5″(90mm) JOST
Brake System Dual Line Braking System
Color Customers Optional

Products picture

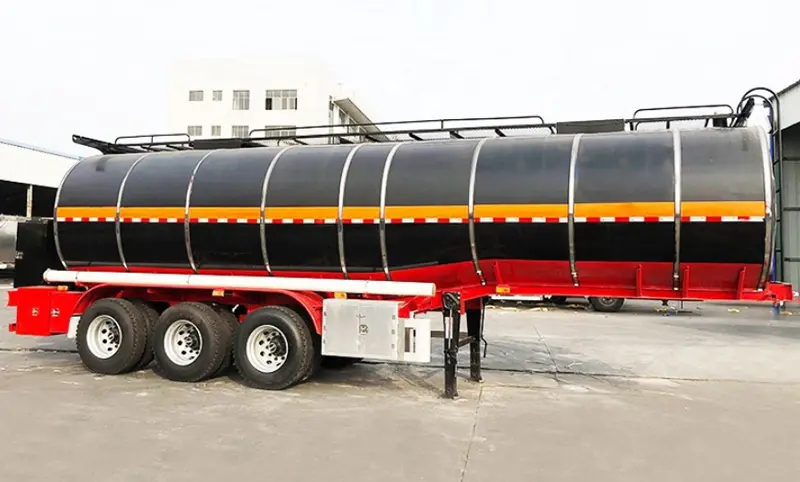

oil tank semi trailer-2

Oil Tank Semi Trailer | oil tank trailer for sale | crude oil tank trailer

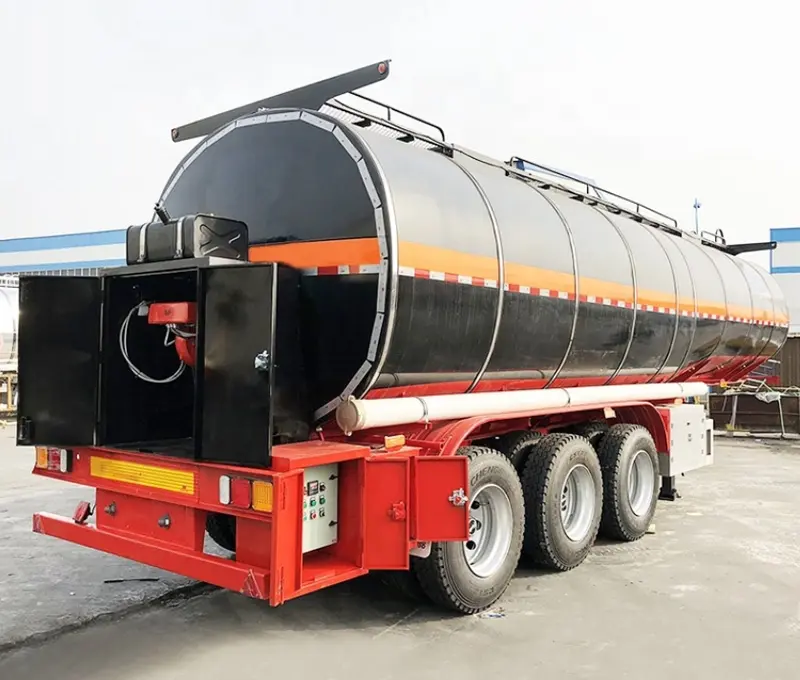

oil tank semi trailer-3

Oil Tank Semi Trailer | oil tank trailer for sale | crude oil tank trailer

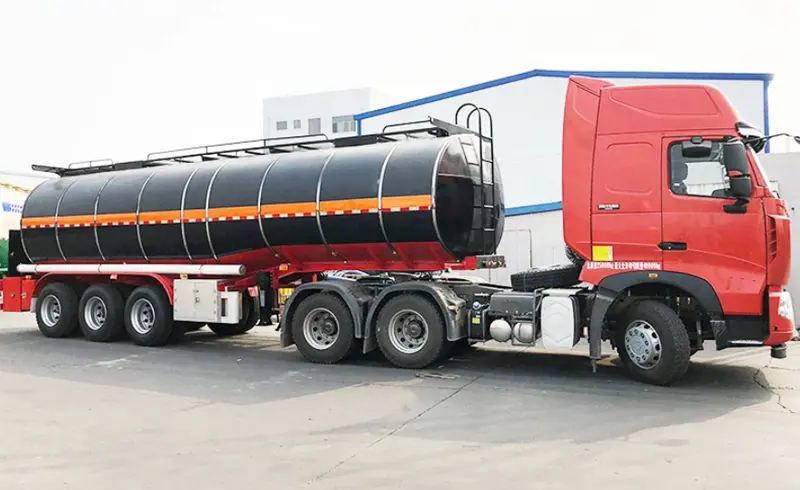

oil tank semi trailer-1

Oil Tank Semi Trailer | oil tank trailer for sale | crude oil tank trailer

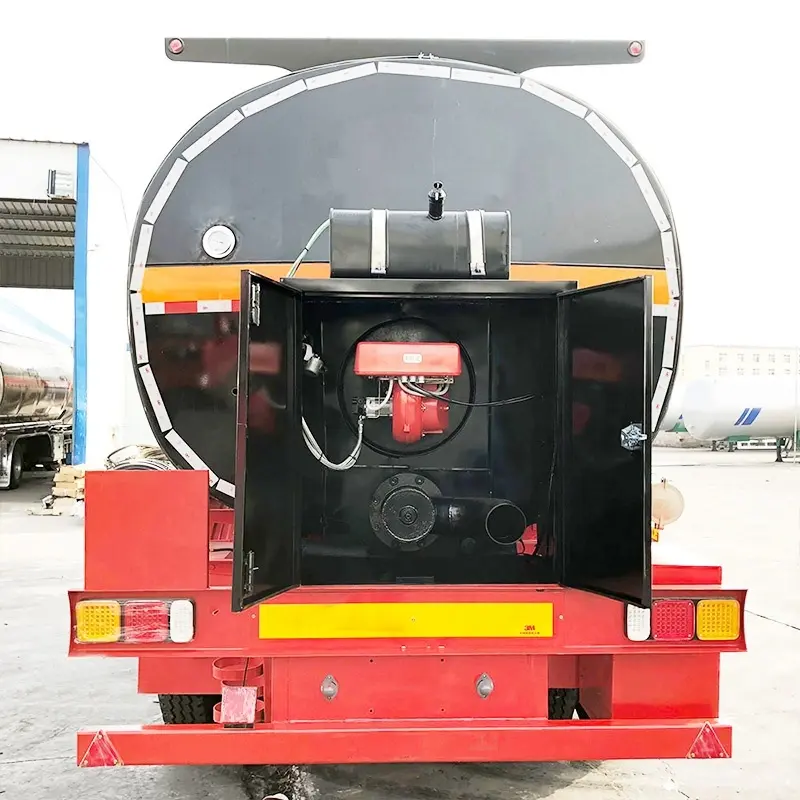

oil tank semi trailer-4

Oil Tank Semi Trailer | oil tank trailer for sale | crude oil tank trailer
