Overall Dimension:17500 * 2650 *4000mm
Loading Weight:18T-28T

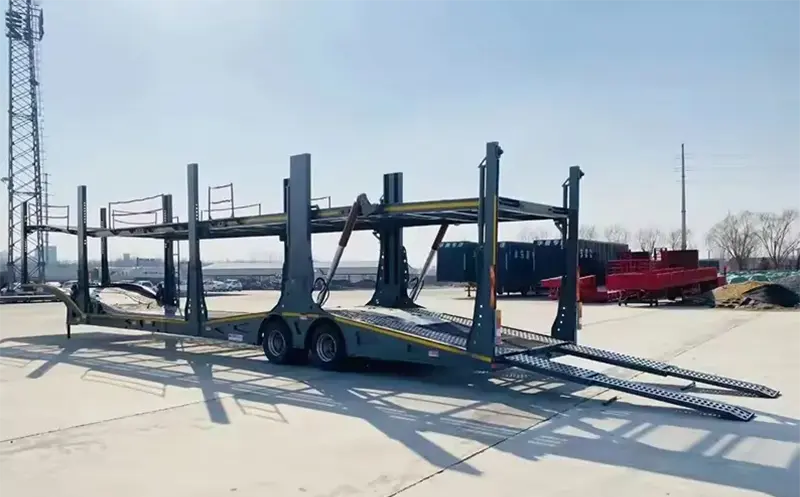

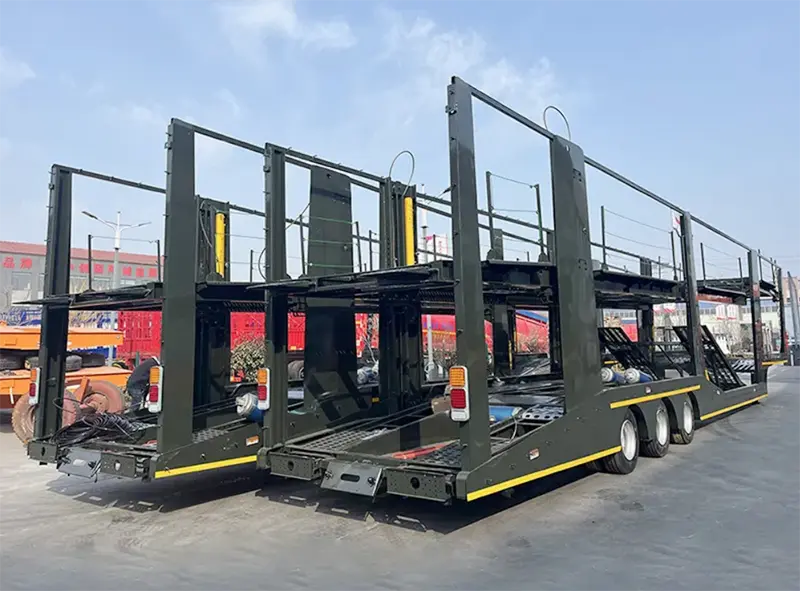

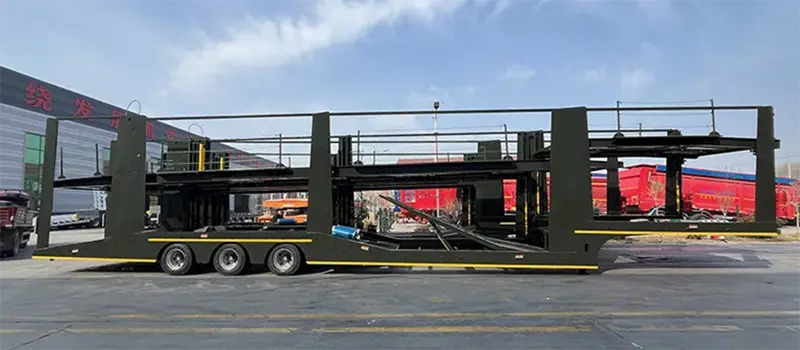

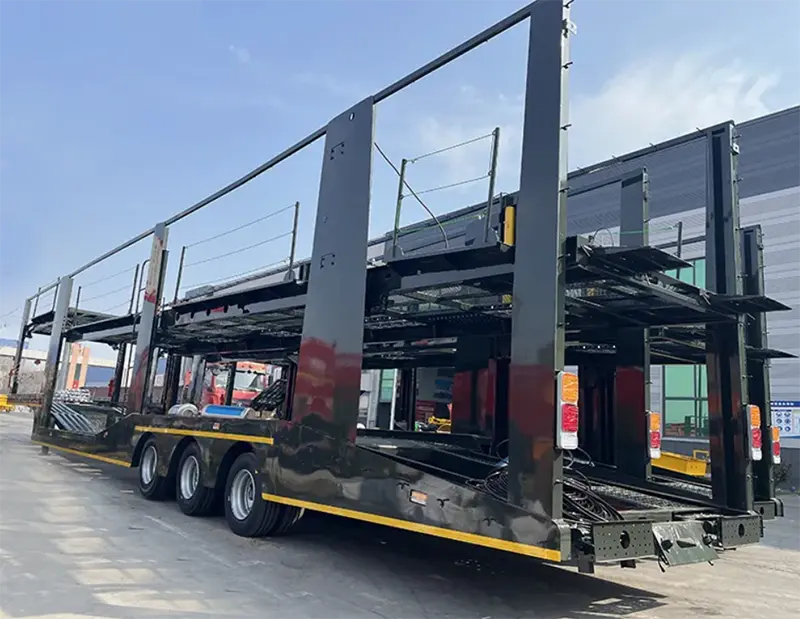

Semi Car Hauler Trailer Specification
Semi Car Hauler Trailer can be made into different lengths according to customer requirements, The frame is a welded I-beam, and the entire body adopts automatic submerged arc welding and carbon dioxide gas shielded welding.
After the welding is completed, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface,
so that the quality is stable and the appearance is beautiful.
Semi Car Hauler Trailer is equipped with a tool box, a spare tire rack, and a drip brake system to improve the safety of vehicle transportation.
Semi Car Hauler Trailer Parameters
art Name: |
Semi Car Hauler Trailer |
Tare Weight: |
Around:8T |
Size.: |
22000* 2550*3800 |
Axle: |
BPW13 T Axle *3Axle |
Main beam: |
Height: 320mm, Top flange: 10mm, Under flange: 10mm, Middle flange: 6mm, Material: T700 |
Leaf spring: |
90*13*10pcs*4 |
Side beam: |
80*180 square tube |
Brake chamber: |
4 double |
Cross beam: |
60*120 square tube |
Rim: |
9.0-14*7mm*12 |
King pin: |
90# Removable pin |
Tyre: |
12R22.5*12 |
Suspension: |
Special suspension |
Air tanker: |
2pcs |
Floor: |
2.7mm punching hole |
Emergency valve: |
WABOCK relay valve |
Landing gear: |
Special external 28T single acting leg |
Gas circuit: |
&12 red yellow nylon tube |
Draw plate: |
12mm thickness |
Tool box: |
2pcs |
Tyre carrier: |
2 pcs |
Paint: |
Spray anti-rust paint twice, brush polyurethane once, spray wax treatment |
Leg crank: |
1 pair |
Shaft head wrench: |
1 pc |
Electric system: |
Voltage: 24V, socket: in line with the Chinese national standard seven-core socket, LED lights, wiring harness: 7-core waterproof wiring harness. |
||
Remarks: 4 sets of dual-phase oil cylinders, the rear oil cylinder is multi-section, the front pull-out is 800mm, the rear pipe pull-out is 3000mm, the upper and lower middle mesh plates, |
