semi tipper trailer for sale

Description

The Trailer With Tipper is a motor vehicle used to transport bulk materials. It has an automatic unloading function and can unload goods from the carriage quickly and efficiently.

The Trailer With Tipper for sale can be unloaded in a variety of ways. Common ones include side-turning type, rear unloading type and bottom unloading type. Different unloading methods are suitable for different materials and meet the needs of different industries and scenarios.

Features of Trailer With Tipper

1. High load capacity: The three-axis configuration provides a solid and stable platform for carrying heavy objects, with a maximum load capacity of up to 52 cubic yards.

2. Convenient unloading: the back-end self-unloading design can easily and efficiently unload materials, especially in small spaces or uneven terrain.

3. Durability: The Trailer With Tipper is made of high-quality materials, which are resistant to wear and corrosion.

4. Low maintenance cost: Due to the strong structure of the Trailer With Tipper and the use of high-quality components such as brakes, axles, and tires, the maintenance cost required for the trailer is extremely low.

Trailer With Tipper Parameters
Outside Dimension	11700x 2500x 3800mm
Payload	Max.80T capacity
Lifting System	HYVA brand oil cylinder 202 model
Main Beam	Q345B carbon steel, ‘H” type
Frame Beam(Heavy duty)	Upper and lower plate is 16mm and 18mm, Double middle is 10+10 mm. Height is 500 mm
Box thickness	Bottom plate:8mm Side plate:6mm
Axle	4 axles 16tons BPW or FUWA
Landing Gear	JOST brand 28tons with two speeds
King Pin	2.0 or 3.5 inch
Suspension	Mechanical suspension reinforced type
Leaf Spring(Strength)	90mm(W)16mm(T)10 Layer
Tires	12R22.5, 315/80R22.5
Color/Logo	By customer demand

Trailer With Tipper Drawings

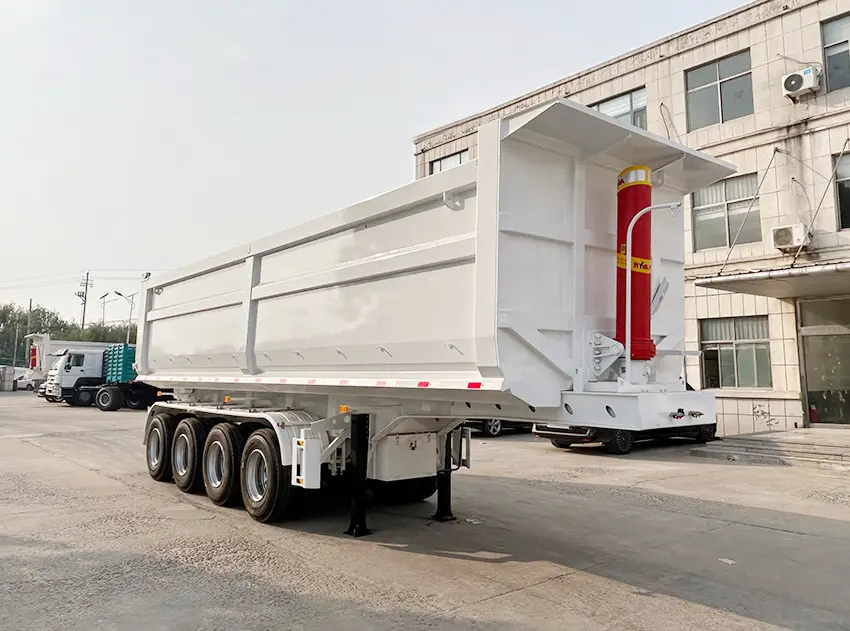

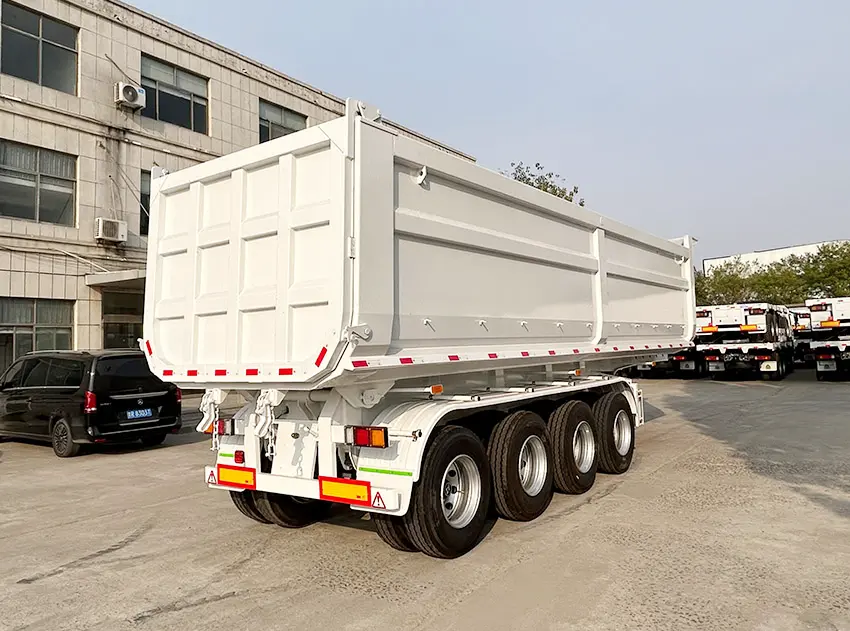

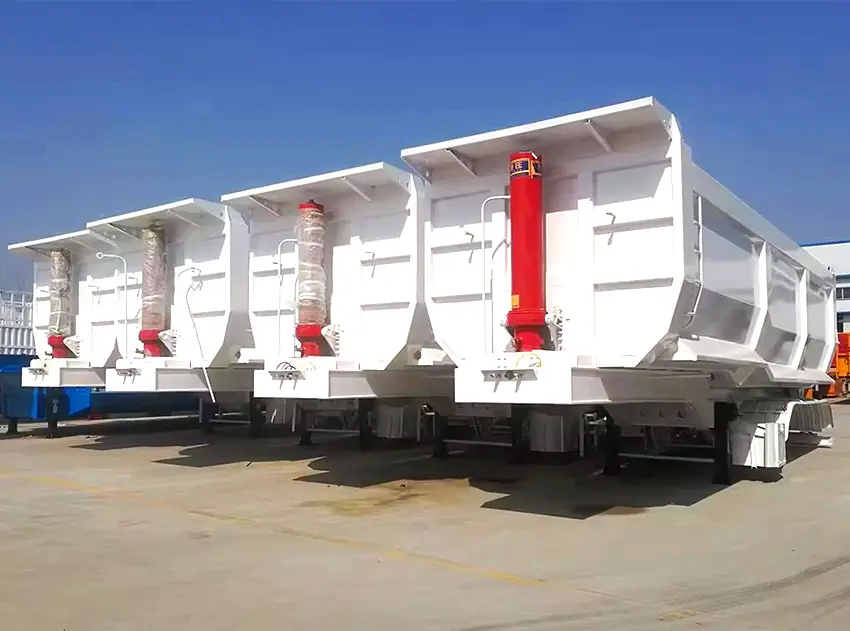

Products picture
