Semi Trailer End Dump Truck

Overall L*W*H11500x2500x3950mm
Total volume35m³
Rim8.0-20 or 9.00-20
Axles3 axle, 13T/16T, FUWA / BPW Brand
Landing gearJOST
Hydraulic system:HYVA cylinder
Semi Trailer End Dump Truck

Description

Semi Trailer End Dump Truck Specification

Semi Trailer End Dump Truck is a kind of large semi-trailer, usually, when we unload it, we will first drive it to the designated position, then lift it and unload it. Chinese trailers  Dump Trailer Truck can help you to carry and unload goods in an easy way, it is very simple to operate and the body is designed so that it can be unloaded quickly.

Semi Trailer End Dump Truck Feature

1. After each 25 cbm dump trailer is produced, Semi Trailer End Dump Truck goes through multiple processes for testing.
2. The lines all adopt advanced LED lights for long service life.
3. World famous brand hydraulic cylinder with long service life.

Semi Trailer End Dump Truck Parameters

Dimension: 11500mmx2500mm x3950mm ( inside dimension )

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 3 axle, 13T/16T, FUWA / BPW Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Manufacturers: Sinotruk trailer

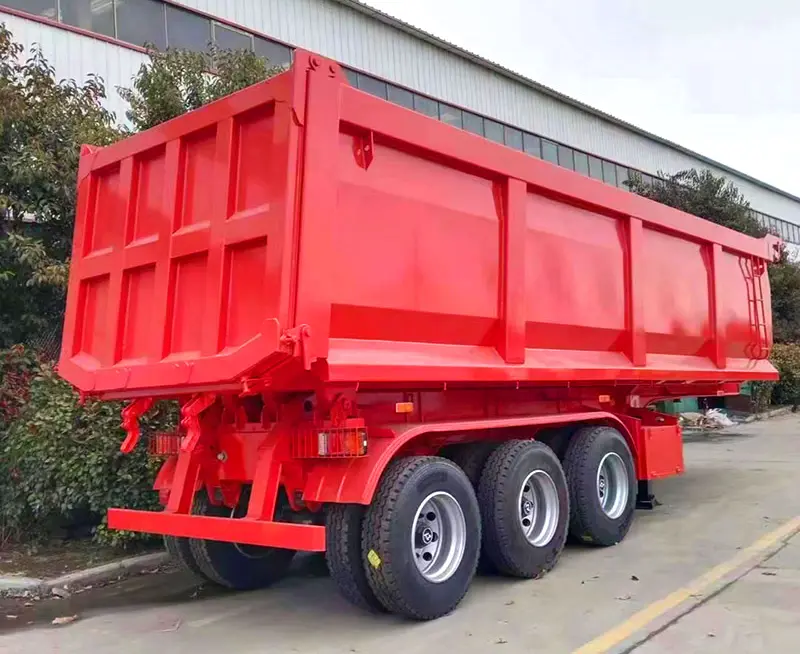

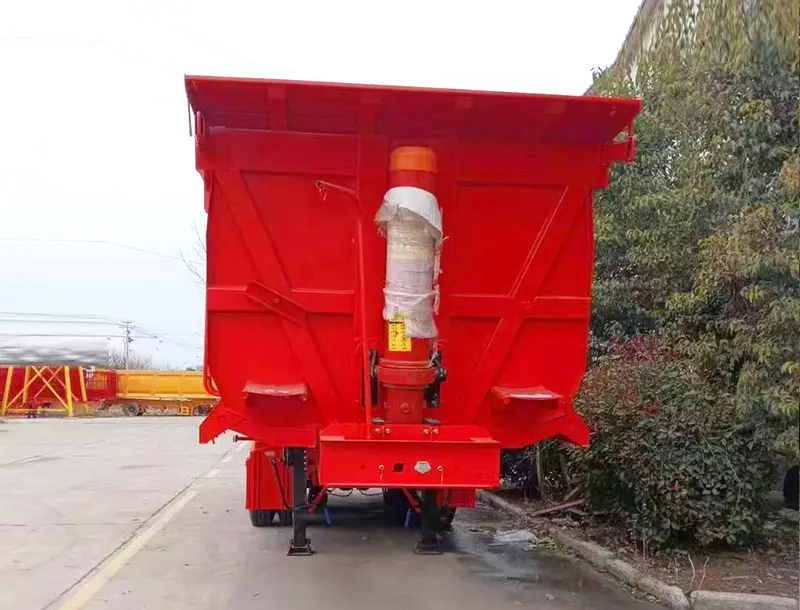

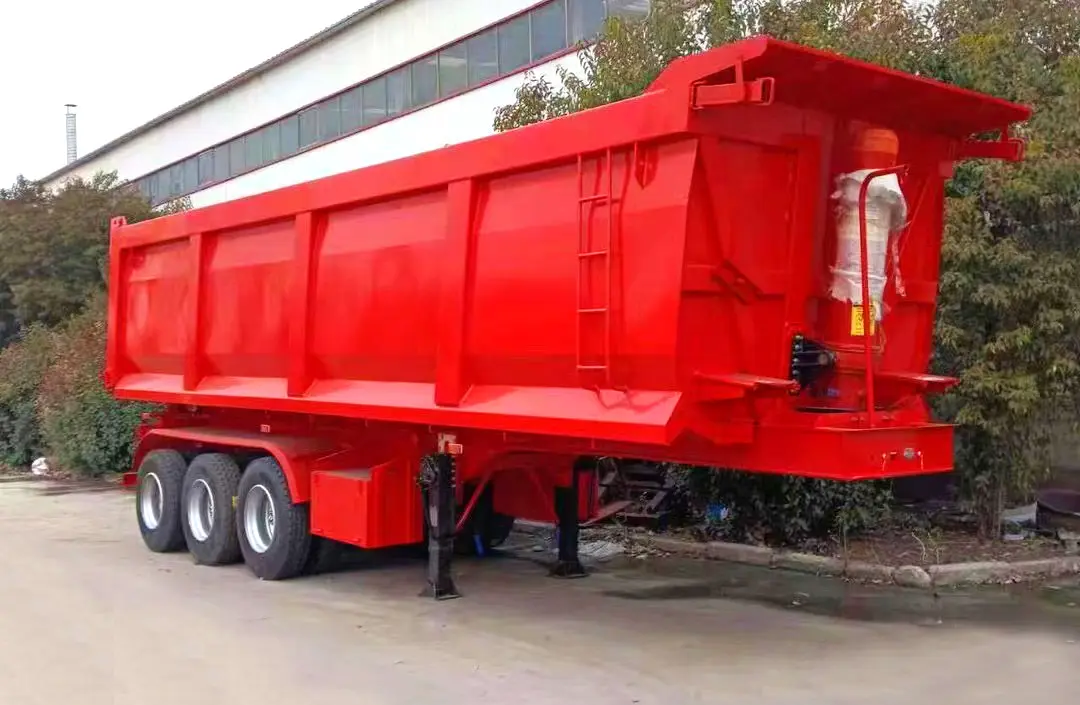

Products picture

Semi Trailer End Dump Truck

Semi Trailer End Dump Truck | end dump semi trailer | semi dump trailer for sale | chinese semi truck

Semi Trailer End Dump Truck

Semi Trailer End Dump Truck | end dump semi trailer | semi dump trailer for sale | chinese semi truck

Semi Trailer End Dump Truck

Semi Trailer End Dump Truck | end dump semi trailer | semi dump trailer for sale | chinese semi truck
