Overall Dimension:17500 * 2650 *4000mm
Loading Weight:18T-28T

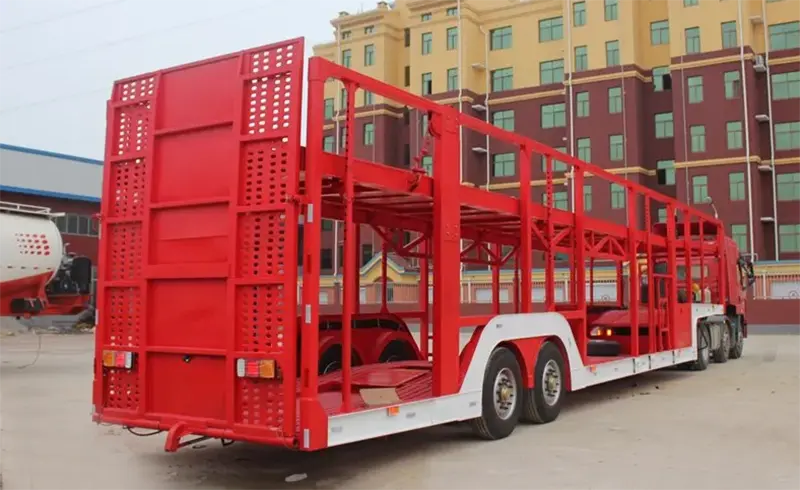

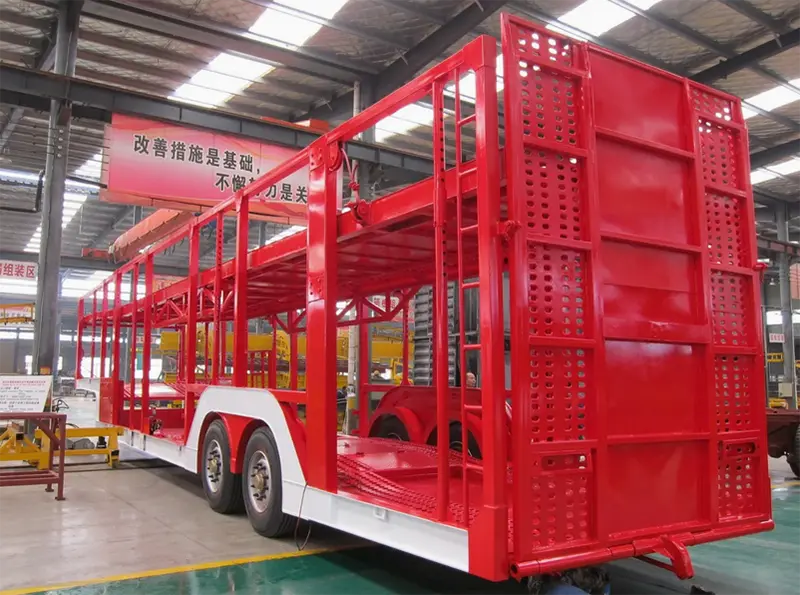

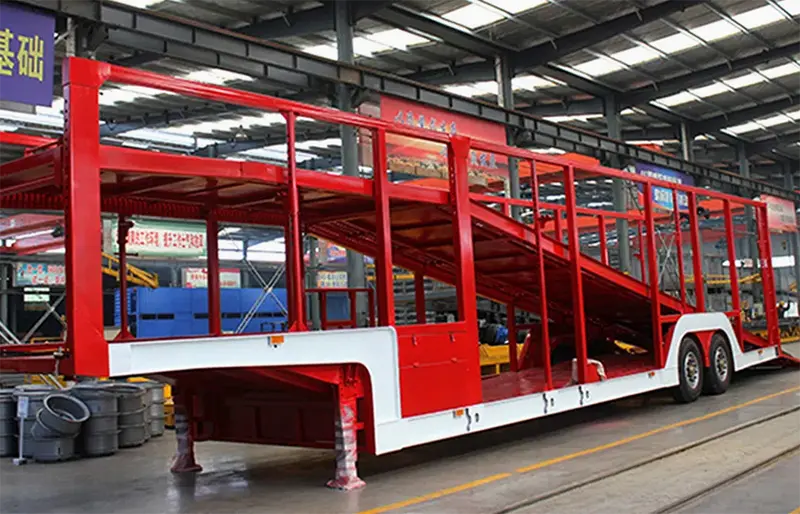

Semi Truck Car Hauler Trailer Specification
Sinotruk trailer Semi Truck Car Hauler Trailer adopts a unique hydraulic lifting system. The key parts of the car transport trailer are high quality brands at domestic and world wide. Sinotruk howo trailer is safe and reliable.Semi Truck Car Hauler Trailer has strong loading capacity and light weight. Sinotruk howo trailer – Semi Truck Car Hauler Trailer can load 5-10 cars of different size.
Sinotruk howo trailer – Semi Truck Car Hauler Trailer are usually designed with special loading and unloading devices and platforms to facilitate the car’s loading and unloading, which can effectively shorten the loading and unloading time and improve the work efficiency.
For example, the upper loading platform of some car carriers can be lifted up and down under the action of the lifting device, which is convenient for loading; some are also equipped with hand winches and other equipment to assist loading and unloading.
Semi Truck Car Hauler Trailer Parameters
Brand |
Sinotruk howo trailer |
||
Overall dimension |
21000* 2480* 1620 mm |
||
Gross weight |
40000 kg |
Approach angle/ departure angle |
-/22° |
Rated payload |
33800 kg |
Max speed |
–Km/h |
Axle |
Capacity of 16T |
Front tread |
–mm |
3 axles |
Rear tread(mm) |
1840/1840/1840 |
|
Wheelbase(mm) |
7300+1310+1310 |
Tyre |
1100R20 18PR |
Leaf spring |
10 pcs |
12 sets |
|
Suspension |
Steel suspension, factory standard |
||
Brake |
Local brand, factory standard |
||
Landing gear |
Capacity of 28ton, local brand |
||
Light system |
Led light |
||
System of factory standard |
|||
Electrical |
Voltage: 24V |
||
Receptacle: 7 ways(7 wire harness) |
|||
Others |
A standard toolbox with some tools; A spare tire carrier. |
