Overall L*W*H:12500x2500x3200mm
Loading capacity:60T

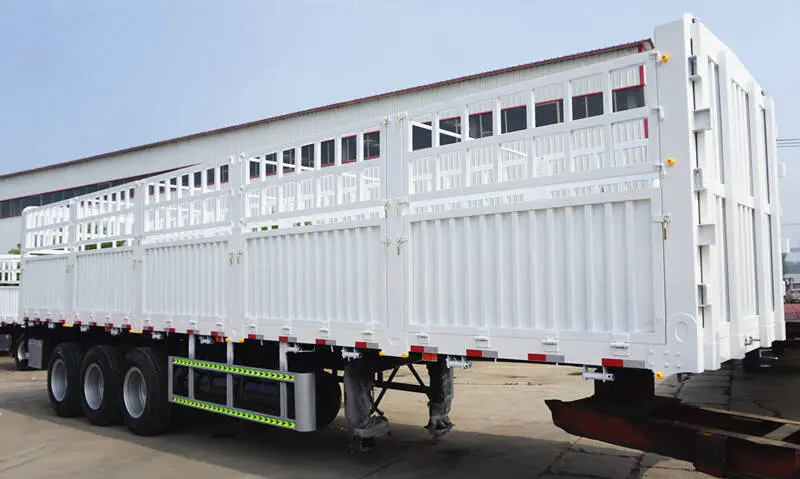

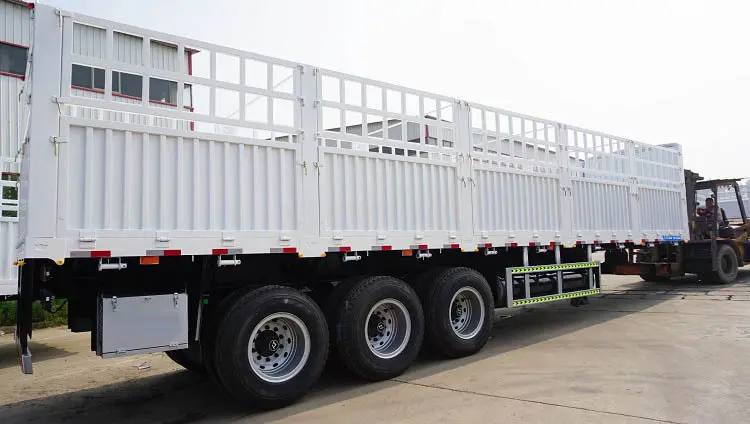

Side Wall Fence Semi Trailer Specification
Side Wall Fence Semi Trailer– the ultimate transport solution for all kinds of your cargo. This semi-trailer is designed with safety and efficiency in mind, and is an important means of transportation for freight stations, express companies and small engineering units.
Side Wall Fence Semi Trailer with side open door are mostly used to transport bulk granular goods such as construction materials, ore and coal. When the box semi trailer is unloading, one side of the carriage can be opened for unloading, which can greatly shorten the unloading time and improve the efficiency of unloading.
Side Wall Fence Semi Trailer Parameters
Trailer Model |
Side Wall Fence Semi Trailer |
Overall Dimension (L*W*H) (mm) |
12500*2500*1600+600mm |
Loading Weight( KG) |
40000 |
Axle Brand |
FUWA Brand |
Axle Number |
Three |
Wheelbase(mm) |
7450+1310+1310 |
Suspension system |
Mechanical Leaf Spring Suspension |
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
Side beam |
Q235 16# channel steel |
Platform plate |
3mm Diamond plate |
Tire Type and quantity |
12R22.5 12units |
Rim |
9.00-22.5 |
Traction Pin |
2” or 3.5” |
Spare Wheel Bracket |
2 pieces |
Tool Box |
1 Standard |
Landing Gear |
28ton Chinese brand,double speeds |
Brake system |
Dual Line braking system |
Brake air chamber |
Six double chamber |
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
One set 6-core standard Cable. |
|
Painting |
Color as customer’s requirement |
Packing |
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
